Stmicroelectronics STM32F072R8T6 ARM MCU STM32 Family STM32F0 Series Microcontrollers Cortex-M0 32 bit 48 MHz 64 KB

• Microcontroller with ARM® 32bit Cortexâ�¢-M0 CPU, frequency up to 48MHz in 64 pin LQFP package
• CRC calculation unit, 64Kb flash, 16KB SRAM
• 2V to 3.6V voltage range, power-on/power down reset (POR/PDR)
• 4 to 32MHz crystal oscillator, internal 40KHz RC oscillator
• 51 GPIO, 7-channel DMA controller, 18 capacitive sensing channels
• (16 ext + 3 int) 12bit ADC, two analogue comparator, one 12-bit D/A converter (with 2 channels)
• 1 (16bit) advanced control, 5 (16bit) 1 (32bit) general purpose and 2 (1bit) timers
• Calendar RTC with alarm and periodic wakeup from stop/standby
• Two SPI, two I2C, four USART, CAN, USB and CEC communication interfaces
• Serial wire debug (SWD), 96bit unique ID, HDMI CEC wakeup on header reception

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F072R8T6
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN

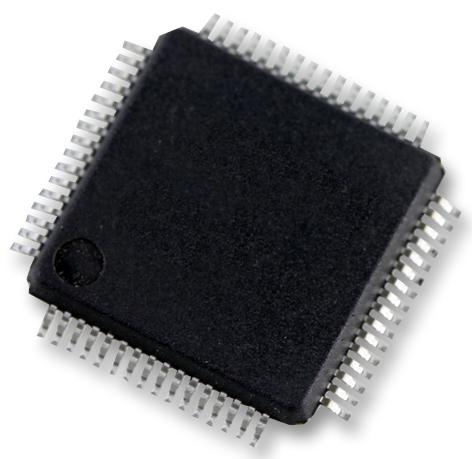

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
