SMK-Link VP6970 USB-C Triple 4K Docking Station
HomeStore

SMK-Link VP6970 USB-C Triple 4K Docking Station

SMK-Link VP6970 USB-C Triple 4K Docking Station

$92.38

Original: $307.92

-70%
SMK-Link VP6970 USB-C Triple 4K Docking Station—

$307.92

$92.38

The Story

SMK-Link VP6970 Overview

Expand your workstation and productivity with the VP6970 USB-C Triple 4K Monitor Docking Station from SMK-Link. With 15 separate ports for USB, audio, display, and internet connectivity, this dock delivers a wide variety of use cases for workers in-office or at-home.

USB Connectivity
A USB-C 3.1 host connection delivers up to 60W of Power Delivery to keep your device charged while using this docking station. A USB-C 3.2 Gen 2 and USB-C 3.0 port offer 10 Gb/s and 5 Gb/s transfer speeds respectively. Both support up to 7.5W of power output to charge other devices.

Two USB-A 3.2 Gen 2 ports, a USB-A 3.0 port, and two USB-A 2.0 ports provide 10 Gb/s, 5 Gb/s, and 480 Mb/s respectively. This wide range of performance means this dock supports every accessory from mice and keyboards to external SSDs.

Display Connectivity
A single DisplayPort 1.4 port and two HDMI 2.0b ports support three connected displays with a 4K resolution at 30 Hz. If only connecting to one external display, the monitor can have 4K resolution with a 60 Hz refresh rate for smoother motion. Please note that some Mac systems only support one extended display.
Ethernet, Audio, and SD Connectivity
A Gigabit Ethernet port gives you the option of using a hardwired internet connection for more stable performance. The 3.5mm audio jack supports both headphone output and microphone input, making it perfect for headsets during virtual meetings and video calls. There is one SD and one microSD card slot so you can take information from your camera, tablet, and other portable devices.
UPC: 715262069701

In the Box

  • SMK-Link VP6970 USB-C Triple 4K Docking Station
  • USB-C Cable
  • AC Adapter with Attached Charging Cable
  • Limited 90-Day Manufacturer Warranty

Additional Resources

    SMK-Link VP6970Specs

    Key Specs
    USB I/O
    1x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W Output
    1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 60 W Power Delivery
    1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 7.5 W Output
    2x USB-A 3.1/3.2 Gen 2
    1x USB-A 3.0 / 3.1/3.2 Gen 1
    2x USB-A 2.0
    Video I/O
    1x DisplayPort 1.4
    2x HDMI 2.0b
    Max Resolution
    3 Displays Supported:
    3840 x 2160 at 60 Hz (Single)
    3840 x 2160 at 30 Hz (Dual)
    3840 x 2160 at 30 Hz (Triple)
    Audio I/O
    1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
    Network I/O
    1x RJ45 (10/100/1000 Mb/s)
    Host Connection
    USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 60 W via Detachable Cable
    Video I/O
    1x DisplayPort 1.4
    2x HDMI 2.0b
    Max Resolution
    3 Displays Supported:
    3840 x 2160 at 60 Hz (Single)
    3840 x 2160 at 30 Hz (Dual)
    3840 x 2160 at 30 Hz (Triple)
    Audio I/O
    1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
    Network I/O
    1x RJ45 (10/100/1000 Mb/s)
    Host Connection
    USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 60 W via Detachable Cable
    Power Source
    Included AC Adapter 20 VDC at 3.25 A (65 W) with Unspecified Barrel Diameter Connector
    Media Card Reader
    1x SDXC
    1x microSDXC
    Wireless Charging
    No
    OS Compatibility
    Windows 8 to 11
    macOS 10 or Later
    Lock Slot
    No
    Certifications
    FCC
    Packaging Info
    Package Weight
    1.925 lb
    Box Dimensions (LxWxH)
    8.6 x 6 x 2.7"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    SMK-Link VP6970 USB-C Triple 4K Docking Station - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

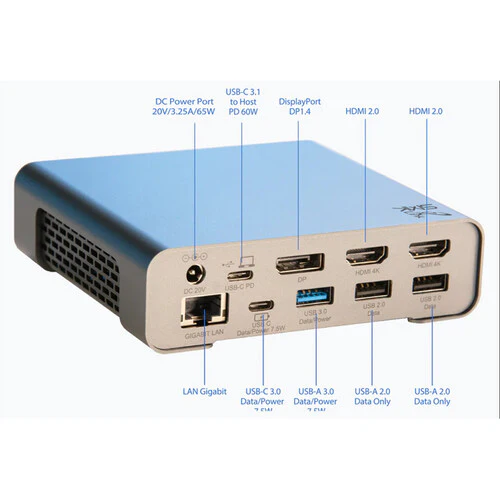

    SMK-Link VP6970 USB-C Triple 4K Docking Station - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

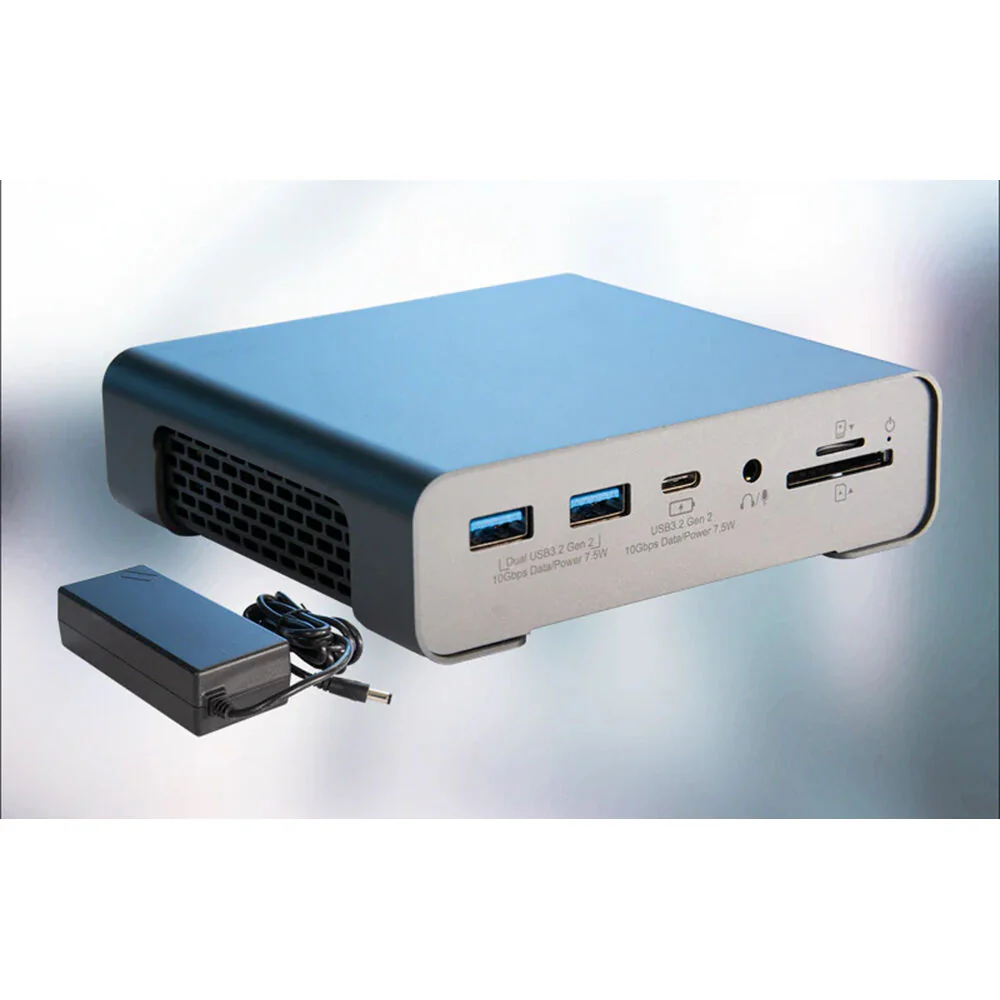

    SMK-Link VP6970 USB-C Triple 4K Docking Station - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    SMK-Link VP6970 Overview

    Expand your workstation and productivity with the VP6970 USB-C Triple 4K Monitor Docking Station from SMK-Link. With 15 separate ports for USB, audio, display, and internet connectivity, this dock delivers a wide variety of use cases for workers in-office or at-home.

    USB Connectivity
    A USB-C 3.1 host connection delivers up to 60W of Power Delivery to keep your device charged while using this docking station. A USB-C 3.2 Gen 2 and USB-C 3.0 port offer 10 Gb/s and 5 Gb/s transfer speeds respectively. Both support up to 7.5W of power output to charge other devices.

    Two USB-A 3.2 Gen 2 ports, a USB-A 3.0 port, and two USB-A 2.0 ports provide 10 Gb/s, 5 Gb/s, and 480 Mb/s respectively. This wide range of performance means this dock supports every accessory from mice and keyboards to external SSDs.

    Display Connectivity
    A single DisplayPort 1.4 port and two HDMI 2.0b ports support three connected displays with a 4K resolution at 30 Hz. If only connecting to one external display, the monitor can have 4K resolution with a 60 Hz refresh rate for smoother motion. Please note that some Mac systems only support one extended display.
    Ethernet, Audio, and SD Connectivity
    A Gigabit Ethernet port gives you the option of using a hardwired internet connection for more stable performance. The 3.5mm audio jack supports both headphone output and microphone input, making it perfect for headsets during virtual meetings and video calls. There is one SD and one microSD card slot so you can take information from your camera, tablet, and other portable devices.
    UPC: 715262069701

    In the Box

    • SMK-Link VP6970 USB-C Triple 4K Docking Station
    • USB-C Cable
    • AC Adapter with Attached Charging Cable
    • Limited 90-Day Manufacturer Warranty

    Additional Resources

      SMK-Link VP6970Specs

      Key Specs
      USB I/O
      1x USB-C 3.1/3.2 Gen 2 / Supports 7.5 W Output
      1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 60 W Power Delivery
      1x USB-C 3.0 / 3.1/3.2 Gen 1 / Supports 7.5 W Output
      2x USB-A 3.1/3.2 Gen 2
      1x USB-A 3.0 / 3.1/3.2 Gen 1
      2x USB-A 2.0
      Video I/O
      1x DisplayPort 1.4
      2x HDMI 2.0b
      Max Resolution
      3 Displays Supported:
      3840 x 2160 at 60 Hz (Single)
      3840 x 2160 at 30 Hz (Dual)
      3840 x 2160 at 30 Hz (Triple)
      Audio I/O
      1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
      Network I/O
      1x RJ45 (10/100/1000 Mb/s)
      Host Connection
      USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 60 W via Detachable Cable
      Video I/O
      1x DisplayPort 1.4
      2x HDMI 2.0b
      Max Resolution
      3 Displays Supported:
      3840 x 2160 at 60 Hz (Single)
      3840 x 2160 at 30 Hz (Dual)
      3840 x 2160 at 30 Hz (Triple)
      Audio I/O
      1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
      Network I/O
      1x RJ45 (10/100/1000 Mb/s)
      Host Connection
      USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 60 W via Detachable Cable
      Power Source
      Included AC Adapter 20 VDC at 3.25 A (65 W) with Unspecified Barrel Diameter Connector
      Media Card Reader
      1x SDXC
      1x microSDXC
      Wireless Charging
      No
      OS Compatibility
      Windows 8 to 11
      macOS 10 or Later
      Lock Slot
      No
      Certifications
      FCC
      Packaging Info
      Package Weight
      1.925 lb
      Box Dimensions (LxWxH)
      8.6 x 6 x 2.7"

      All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
