SMART Technologies NX Overview

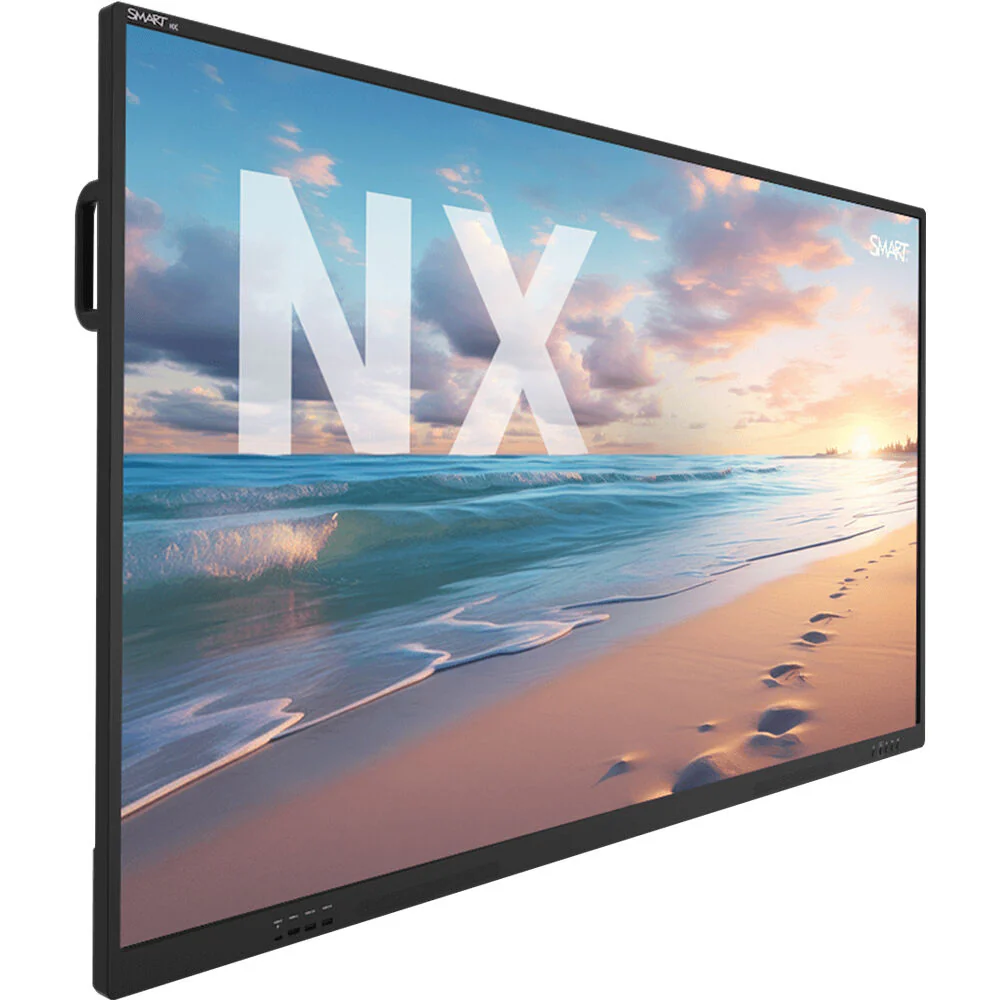

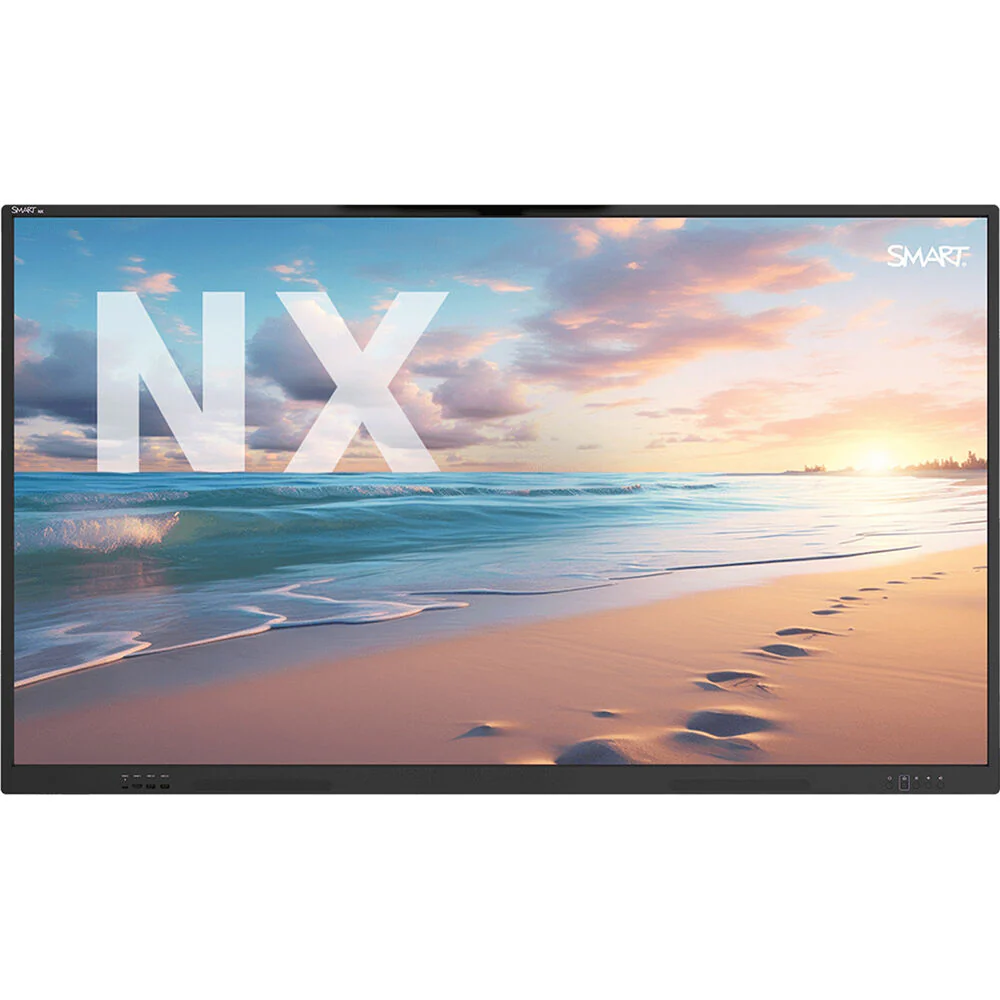

Provide easy screen sharing and digital signage management throughout your campus with the SMART Board NX Series 65" UHD 4K Commercial Monitor from SMART Technologies. The NX series is a 400 nits bright, non-interactive LCD screen, with built-in Wi-Fi, and compatibility with Miracast, Airplay, Google Cast as well as a host of other apps geared toward education. Packed with software and tools to make teaching and messaging easier, the NX165 is a reliable and energy efficient display solution for classrooms, reception areas, assembly halls, and more.
For walk-up-and-use convenience, the front panel has an HDMI 2.0 input, a USB-C alt DisplayPort input with power output to charge your laptop or tablet while you use it, and two USB-A inputs for connecting USB drives or other peripherals.
The back panel hosts two more HDMI 2.0 inputs, along with VGA plus 3.5mm audio, and a DisplayPort 1.2 input. Another USB-C port is available, along with three more USB-A connections. The NX series also has an OPS slot for SMART module expansion.
- Embedded browser
- Included Air-Mouse remote control
- Zero-bonded anti-glare glass
- 2 x 20W speakers
- ENERGY STAR certified
Items Included
- SMART Technologies SMART Board NX Series 65" UHD 4K Commercial Monitor
- Power Cable
- USB-A to USB-B Cable (16'5")
- USB-C Cable (6')
- 2 x Interactive Pen
- 2 x Eraser
- 3 x External Wi-Fi Antennas
- Remote Control
- 2 x AAA Battery for Remote
- Wall Mount
- SMART UHD Camera with Cable and Mount
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
SMART Technologies NX Specs
| Display Size |
65"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| Inputs |
Front:
1x HDMI 2.0 Rear: 2x HDMI 2.0 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 2.1, 2.0 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
| USB I/O |
Front:
1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 Rear: 1x USB-C 2.0 (Audio/Video/Touchscreen Control/DisplayPort Alt Mode) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
Rear: 2x RJ45 Gigabit Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Built-In Speakers |
Yes, 2x 20 W
|
| Media Card Reader |
No
|
| Display Size |
65"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
400 nits / cd/m2
|
| Response Time |
< 8 ms
|
| Refresh Rate |
60 Hz
|
| Viewing Angle (H x V) |
178 x 178°
|
| Pixels Per Inch (ppi) |
68 ppi
|
| Finish |
Anti-Glare / Matte
|
| TV Tuner |
No
|
| Inputs |
Front:
1x HDMI 2.0 Rear: 2x HDMI 2.0 1x DisplayPort 1.2 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
Rear:
1x HDMI 2.1, 2.0 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio) |
| HDCP Support |
Yes, Version 2.3
|
| Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
| Connection Protocols |
AirPlay, Chromecast built-in
|
| NFC |
Yes
|
| USB I/O |
Front:
1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 Rear: 1x USB-C 2.0 (Audio/Video/Touchscreen Control/DisplayPort Alt Mode) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
Rear: 2x RJ45 Gigabit Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Built-In Speakers |
Yes, 2x 20 W
|
| Speaker Configuration |
2-Channel
|
| Smart TV |
Android 13
|
| CPU |
Quad-Core:
|
| Storage |
64 GB
|
| RAM |
8 GB DDR4
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
| Supported Languages |
Czech
Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Simplified Chinese Slovak Slovenian Spanish Swedish Traditional Chinese Ukrainian Vietnamese |
| Power Consumption |
Typical: 79.0 W
Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
| Operating Conditions |
32 to 95°F / 0 to 35°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 80% Humidity
|
| Certifications |
cULus, FCC, CE, UKCA, CB, REACH, RoHS, WEEE, RCM, ENERGY STAR
|
| Mounting-Hole Pattern |
600 x 400 mm
|
| Lighting Lifespan |
50000 Hours
|
| Impact Resistance |
No
|
| Dimensions |
58.4 x 35.4 x 3.4" / 148.3 x 89.9 x 8.6 cm
|
| Weight |
81.6 lb / 37 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
