Original: $15.34
-70%$15.34
$4.60The Story
Product Overview

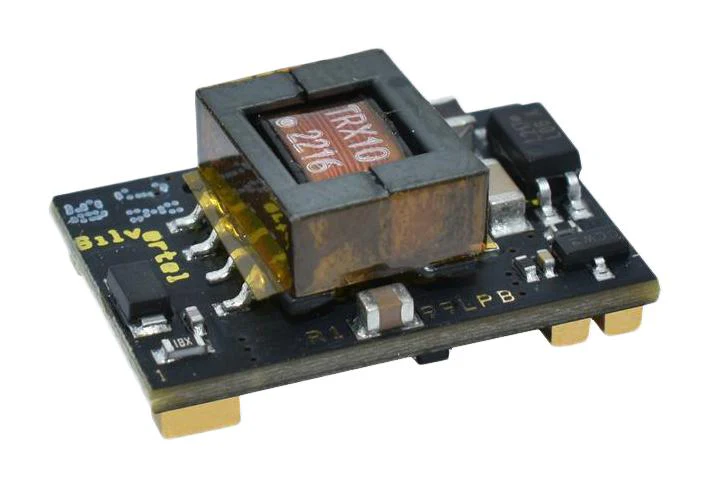

AG9912-LPB is a smallest Ag9900 Power-over-Ethernet (PoE) module in the world designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
- Input voltage range from 36V to 57V
- 1500V isolated DC/DC converter
- Low profile SMT (14x21x13mm) package
- Industrial temperature range
- 12V nominal output voltage
- 10W output power at 70?C, 6W output power at 85?C
- Minimal external components required
- Over temperature protection
- Adjustable output
Product details
Other details
| Brand | SILVERTEL |
| Part Number | AG9912-LPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
