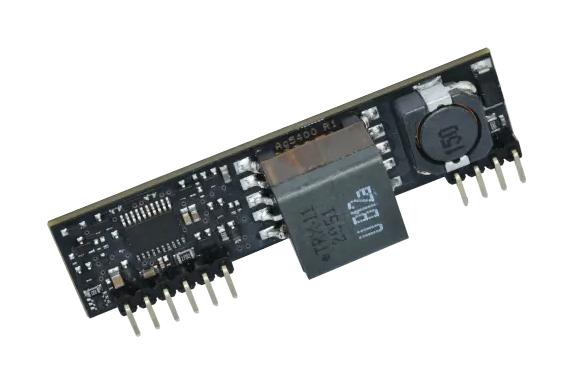

SILVERTEL AG5412 Power Over Ethernet Plus Module, 2.5 A, 12 V, 30 W, Ag5400 Series

AG5412 is an Ag5400 series high-efficiency Power-over-Ethernet module designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backward compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments. The high-efficiency DC/DC converter can achieve in excess of 93% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and overtemperature protection and provides a 1500VDC (input to output) isolation barrier.

• 30W continuous output power
• 12V nominal output voltage and 30W continuous output power
• Very low heat output
• Low output ripple & noise
• Overload, short-circuit, OVLO, TVS and thermal protection
• Adjustable output voltage
• Minimal external components required
• Class 4 IEEE802.3 PD
• SIL package size: 57.3mm (L) x 14mm (H) and 1500VDC isolation (input to output)
