$367.44

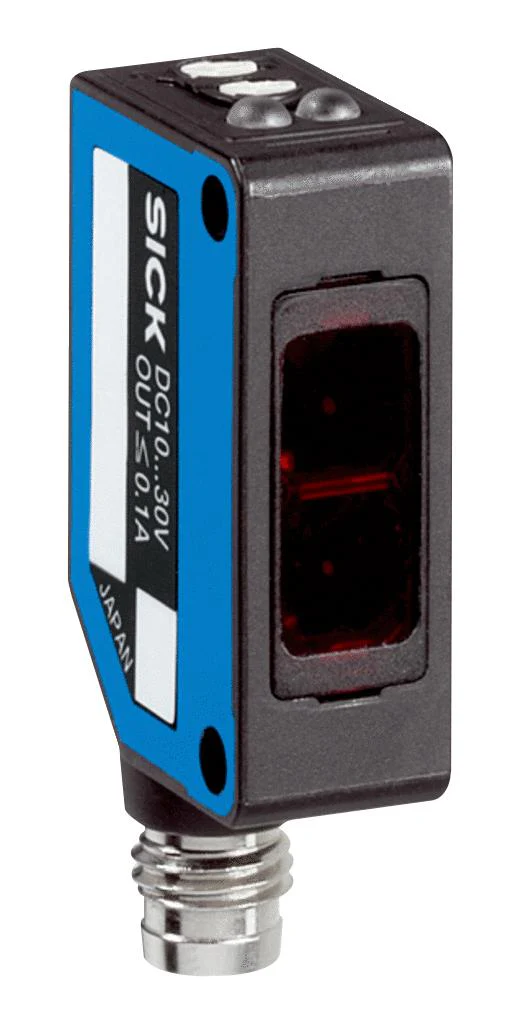

SICK WL100L-F2231 Photo Sensor, 12 m, PNP, Retroreflective, 10 to 30 VDC, M8 Connector, W100 Laser Seriesâ
$367.44
The Story
Product Overview
- W100 laser series miniature photoelectric sensor
- Photoelectric retro-reflective sensor functional principle (dual lens functional principle detail)
- Rectangular housing design (light emission), 0.08m to 12m max sensing range
- 0.08m to 10m sensing range, visible red type of light, laser light source, plastic
- à 12mm (10m) light spot size (distance), 650nm wave length, potentiometer, 270° adjustment
- Detecting small objects, detection of objects moving at high speeds
- 10VDC to 30VDC supply voltage, 30mA current consumption, PNP switching output
- Light/dark switching mode, ?100mA max output current, 2,000Hz switching frequency
- Male connector M8, 4-pin connection type, plastic, ABS/PC housing material, IP65 enclosure rating
- Dimension (W x H x D) is 11 x 31 x 20mm, ambient operating temperature range from -10°C to +50°C
Contents
Miniature photoelectric sensor, Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F.
Product details
Other details
| Brand | SICK |
| Part Number | WL100L-F2231 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks⢠or registeredŽ trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
