$69.71The Story

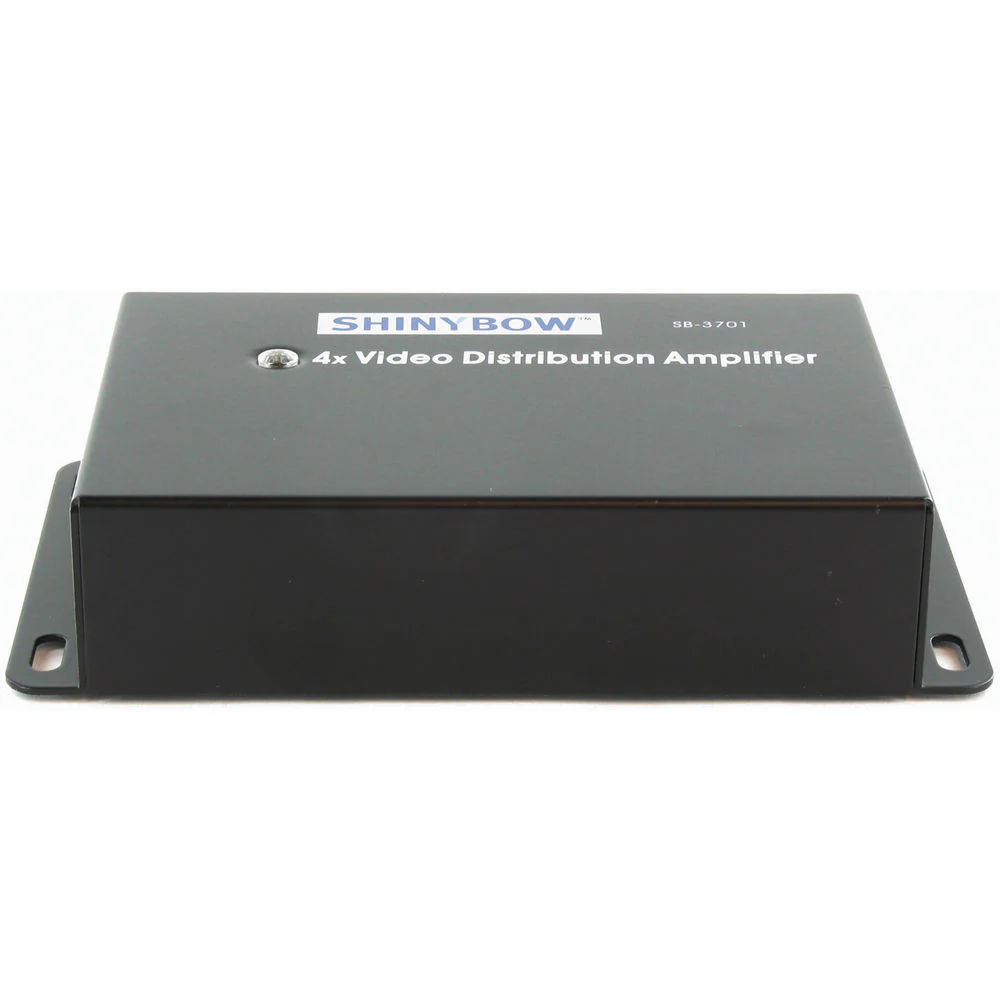

The Shinybow SB-3701RCA 1x4 Composite Video Digital Distribution Amplifier is a 1 in to 4 out composite video distribution amplifier. It is used to distribute video signals to multiple destinations. This amplifier provides 4 outputs that are identical to the source signal. It is useful for distributing signals from VCRs, camcorders, video game consoles, DVDs, satellite receivers, CAT5 set top boxes, etc.
- Video Bandwidth >110 MHz
- Surface mount tabs provided
| Video | Input: 1x Composite video 75 ?, 1 Vpp Output: 4x Composite video 75 ?, 1 Vpp |
| Video Bandwidth | 110 MHz (-3 dB) G = 1 |
| Slew Rate | 1000 V/as |
| Gain Flatness | 0.1 dB to 20 MHz, RL = 150% |
| Differential Gain Error | 0.03% (RL = 1 k %) |
| Differential Phase Error | 0.03% (RL = 1 k %) |
| Terminal | In/Out: SB-3701 RCA/RCA connectors |
| Enclosure Type | Metal case (wall mount type) |
| Power | 50 mA maximum |
| Power Source | 12 VDC @ 300 mA |
| Size | 4.33 x 3.14 x 1" (110 x 80 x 25 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 9.3 x 7.2 x 1.6" |
- User Guide
- AC/DC Adapter (12 VDC, 300 mA)
- 3-Year Warranty
