Sescom 4-Channel Passive Balanced Audio Extender over Cat 5/6/7
HomeStore

Sescom 4-Channel Passive Balanced Audio Extender over Cat 5/6/7

Sescom 4-Channel Passive Balanced Audio Extender over Cat 5/6/7

$55.89

Original: $186.31

-70%
Sescom 4-Channel Passive Balanced Audio Extender over Cat 5/6/7—

$186.31

$55.89

The Story

Sescom 4XLR2F2M Overview

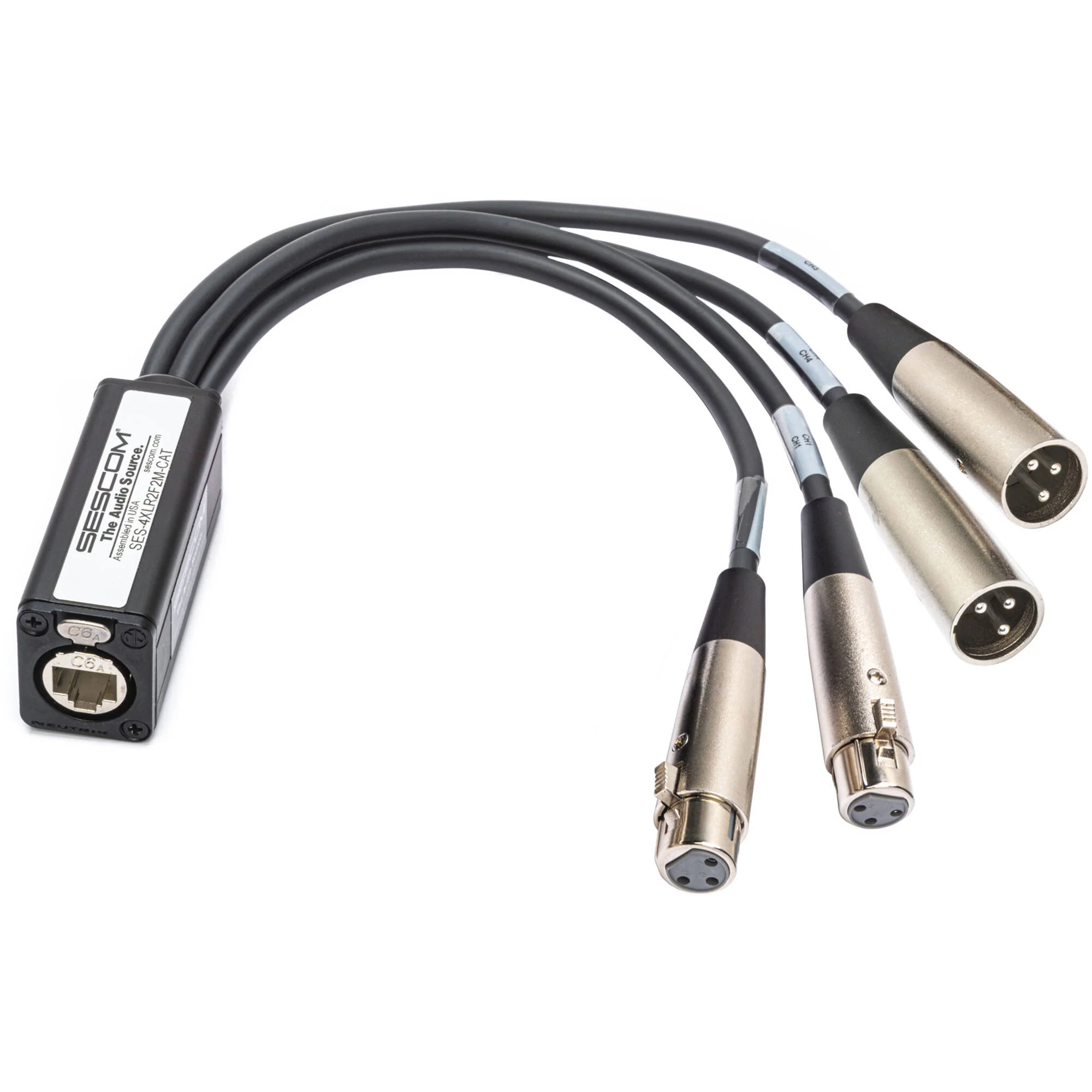

Extend analog or digital audio up to 2000' with this 4-Channel Passive Balanced Audio Extender over Cat 5/6/7 from Sescom. The extender is a compact unit that doesn't require power to operate, and it features a locking etherCON RJ45 connector on one end and four 12" fanout XLR cables on the other end with two male and two female 3-pin XLR Neutrik connectors.

The extender supports 48V phantom power pass-through over shielded Cat 5/6/7 cable. It supports analog audio, digital audio, AES/EBU, or DMX over a category cable, and provides transmission distances up to 2000'.

Key Features
Send four channels of analog or digital audio, AES/EBU, or DMX over Cat 5/6/7 cable
Supports 48V phantom power with shielded category cable
Replaces bulky multichannel audio snakes allowing for quick setup
Passive design requires no power
Compact, lightweight, and easy to store
Rugged road-ready black aluminum enclosure
Fanouts measure 12" in length
Neutrik 3-pin XLR and locking RJ45 etherCON connectors
Digital audio 48k 24-bit AES/EBU transmission distance: 1000'
Analog balance line-level audio transmission distance: 2000'
Mic level audio transmission distance: 2000'

Items Included

  • Sescom 4-Channel Passive Balanced Audio Extender over Cat 5/6/7
  • Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

Sescom 4XLR2F2M Specs

Interfaces
Inputs
2x XLR 3-Pin (Stereo Analog) Male
2x XLR 3-Pin (Stereo Analog) Female
Receiver Interfaces
Other I/O
1x RJ45 Input/Output
Transmission
Max Transmission Distance
2000' / 609.6 m
Packaging Info
Package Weight
0.605 lb
Box Dimensions (LxWxH)
7.3 x 4.4 x 1.55"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
