$5.50
Original: $18.34
-70%Schutzinger DI VSFK 8500 / 1 200 BL DI Vsfk BL Test Patch Lead Banana 4mm Stackable Banana Plug Shrouded—
$18.34
$5.50The Story

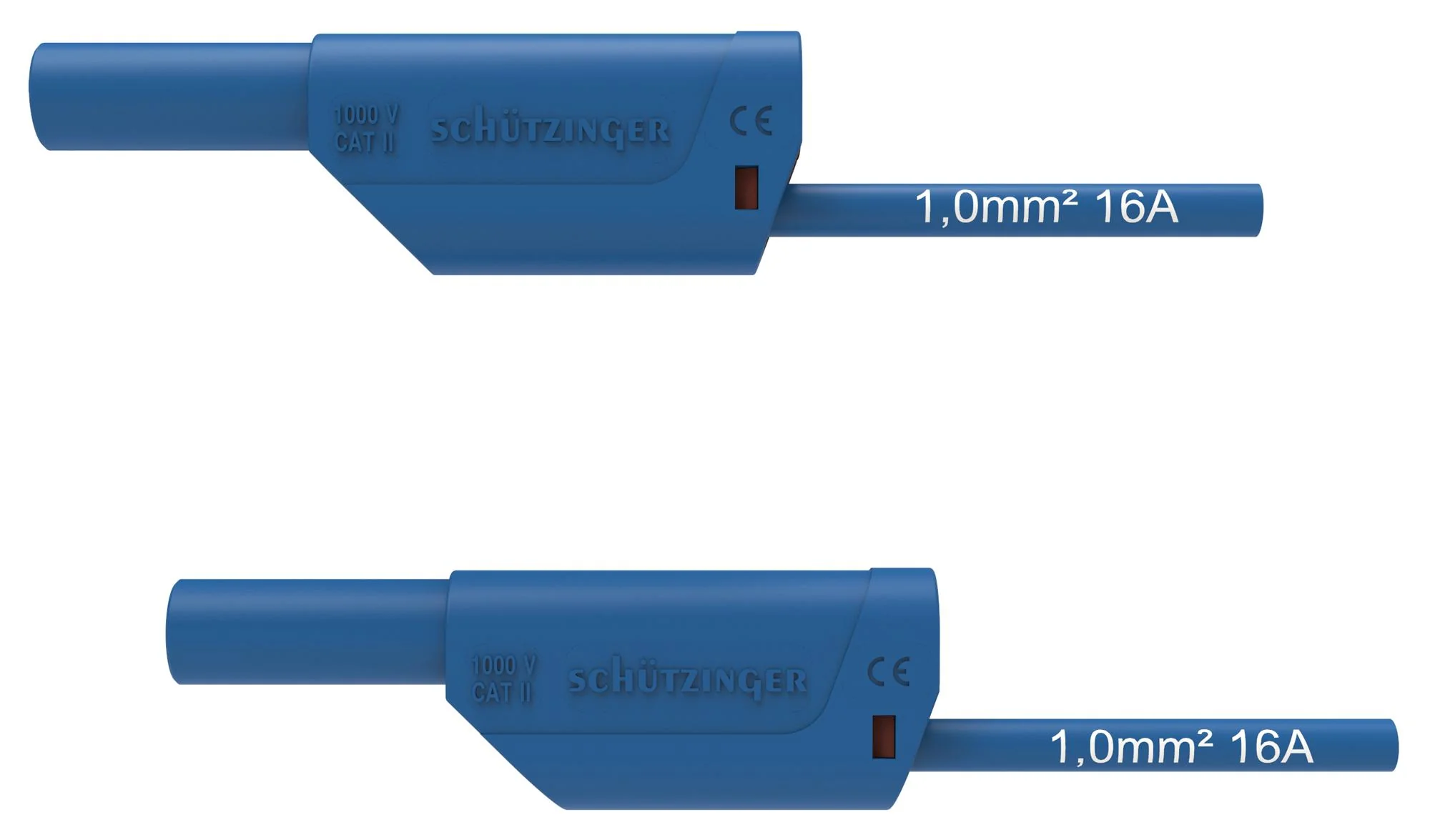

2 safety lamella-basket plugs with inline socket assembled on highly flexible double insulated 1mm² PVC cable.
- Slim design with 10mm grid dimension
- Sleeves are composed of UL-listed material
- Nickel-plated contacts
- PA 6.6 (UL94-V2) sleeves
- 1000V CAT II rated voltage, 16A rated current
- 200cm length
- 200cm length
Product details
| Test Connector Type A | 4mm Stackable Banana Plug, Shrouded |
| Test Connector Type B | 4mm Stackable Banana Plug, Shrouded |
| Lead Length - Imperial | 6.6ft |
| Lead Length - Metric | 2m |
| Insulator Colour | Blue |
| Current Rating | 16A |
| Voltage Rating | 1kV |
| Product Range | - |
Other details
| Brand | SCHUTZINGER |
| Part Number | DI VSFK 8500 / 1 / 200 / BL |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
