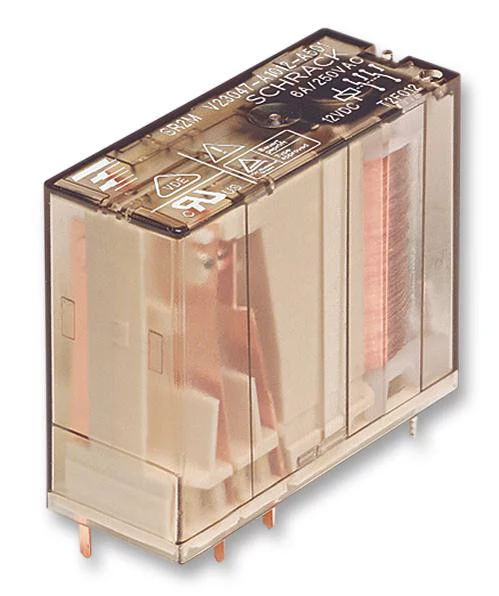

-70%SCHRACK - TE CONNECTIVITY V23047-A1012-A501 Safety Relay, DPDT, 12 VDC, 6 A, V23047 Series, Through Hole, Solder—
$21.26
$6.38The Story
The V23047-A1012-A501 is a Force Guided Relay with DC coil. This SR2M-series relay has 2-form-C (2CO) AgNi single contacts. Typical applications such as emergency shut-off, press control, machine control, elevator/escalator control and safety relays.
- Reinforced insulation between poles
- -25 to 70�C Ambient temperature range
Applications
Safety
Product details
| Contact Voltage DC Nom | 24V |
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Product Range | V23047 Series |
| Relay Terminals | Solder |
| Contact Current | 6A |
| Approvals & Standards | - |
| Contact Voltage AC Nom | 250V |
| IP Rating | - |
| Coil Voltage | 12VDC |
| Contact Configuration | DPDT |
Other details
| Brand | SCHRACK - TE CONNECTIVITY |
| Part Number | V23047-A1012-A501 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
