Schoeps CMC 1 UG Overview

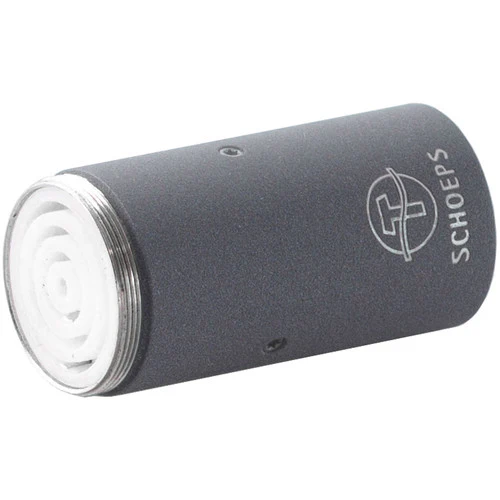

The matte gray Schoeps CMC 1 is a miniature Colette Series microphone amplifier offering uncompromising high fidelity in a lightweight and ultracompact form factor for studio recording, broadcast, and live stage applications. Presented as an alternative to the renowned Schoeps CMC 6 amplifier, the CMC 1 is compatible with all existing MK mic capsules and Colette active accessories (all available separately).
It features a balanced XLR output, compliance with 12V or 48V phantom power, and low current consumption. Its Schoeps RFI Shield provides high immunity from RF interference for a clean, low-noise signal. The CMC 1 supports the high maximum SPLs tolerated by the various MK mic capsules (available separately).
- Complete alternative to the renowned CMC 6 amplifier
- Can be used in place of the CMC 6 with no compromise
- Electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6
- 1.4" long (about a third the size of the CMC 6)
- 1.3 ounces (about 40% lighter than the CMC 6)
- Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes

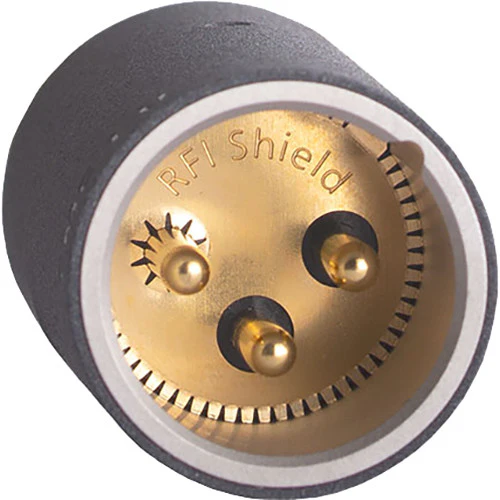

- Very high immunity from RF interference with the Schoeps RFI Shield
- Includes mic clip for easy attachment to a mic stand
- Suspension mounts such as the Rycote INV-6 are available separately
In the Box
- Schoeps CMC 1 Miniature Colette Microphone Amplifier (Matte Gray)
- Schoeps SG20 Microphone Stand Clamp
- Limited 2-Year Warranty
Schoeps CMC 1 UG Specs
| Frequency Range | 20 Hz to 20 kHz |
| Maximum Output Voltage | 1.8 V / 5 dBV with 1-Kilohm Load |
| Maximum SPL for 0.5% THD | P48 with MK 4 Capsule: 135 dB SPL P12 with MK 4 Capsule: 131 dB SPL |
| Impedance | 50 Ohms (±1 Ohm, 8 Hz to 50 kHz) |
| Minimum Load Impedance | 1 Kilohm |
| Sensitivity | Capsule-Dependent Sensitivity |
| Low-Cut Filter | 12 dB/Octave at 20 Hz |
| Common Mode Rejection Ratio | >55 dB at 1 kHz |
| Maximum Cable Length | Up to 1312' / 400 m |
| Output Connector | 1 x 3-Pin XLR Male |
| Operating Current Consumption | P48: 2 mA P12: 3 mA |
| Operating Voltage | P48: 30 to 52 VDC P12: 11 to 13 VDC |
| Length | 1.4" / 36 mm |
| Diameter | 0.8" / 20 mm |
| Weight | 1.3 oz / 36 g |
| Package Weight | 0.72 lb |
| Box Dimensions (LxWxH) | 7.4 x 4.3 x 1.3" |
