Original: $150.64
-70%$150.64
$45.19The Story

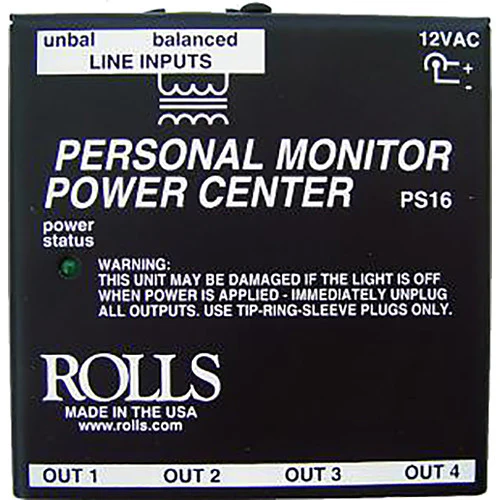

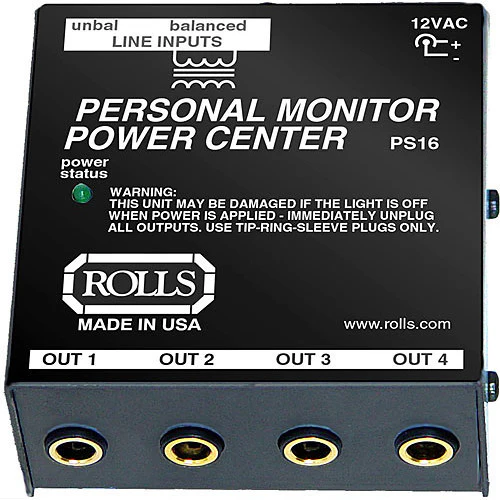

The Rolls PS16 Personal Monitor Power Center supplies the DC power and distributes the Monitor signal to up to ten PM50s, PM50sOB, or PM350 units. This dramatically increases efficiency and eliminates the need for multiple wall-warts and adapter cables.
Both the power and monitor signals are carried from each PS16 output to the Monitor input of the PM50s, sOB, and 350 using an ordinary 1/4" stereo TRS cable . By using stereo "Y" adapters, up to ten of the Personal Monitor Amplifiers may be daisy-chained.
Note: TRS plugs are required for the outputs of this unit!
- Line Inputs:
- Unbalanced: 1/4" TS jack, connects to a mixer's unbalanced Monitor or Auxiliary Send jack.

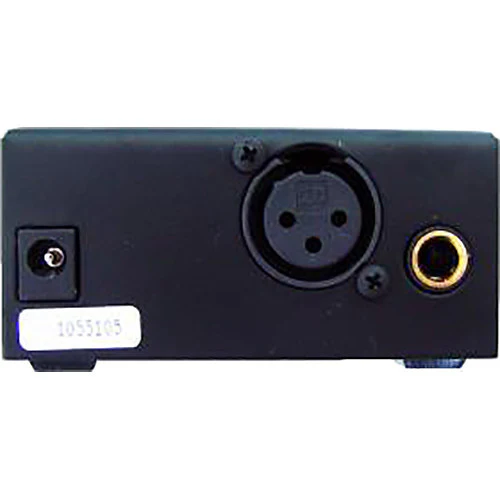

Balanced: Transformer isolated female XLR jack. Connects to a mixer's balanced Monitor or Auxiliary Send.
- Outputs 1-4:
- 1/4" TRS jacks. Tip of the connector contains the audio signal, Ring has the 12 volts DC required to operate the Personal Monitor devices, and the Sleeve connects to ground.
| Input Power | 12 VAC, 700 mA |
| Output Power | 12 VDC on Ring terminal of output TRS jack |
| Dimensions | 3.125 x 3.125 x 1.25" ( 80 x 80 x 32mm ) |
| Weight | 1 lb ( 450 g ) |
| Packaging Info | |
|---|---|
| Package Weight | 1.5 lb |
| Box Dimensions (LxWxH) | 6.929 x 4.646 x 2.677" |
- 12V Power Adapter
- 1-Year Warranty
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Rolls PS16 Personal Monitor Power Center supplies the DC power and distributes the Monitor signal to up to ten PM50s, PM50sOB, or PM350 units. This dramatically increases efficiency and eliminates the need for multiple wall-warts and adapter cables.
Both the power and monitor signals are carried from each PS16 output to the Monitor input of the PM50s, sOB, and 350 using an ordinary 1/4" stereo TRS cable . By using stereo "Y" adapters, up to ten of the Personal Monitor Amplifiers may be daisy-chained.
Note: TRS plugs are required for the outputs of this unit!
- Line Inputs:
- Unbalanced: 1/4" TS jack, connects to a mixer's unbalanced Monitor or Auxiliary Send jack.
Balanced: Transformer isolated female XLR jack. Connects to a mixer's balanced Monitor or Auxiliary Send.
- Outputs 1-4:
- 1/4" TRS jacks. Tip of the connector contains the audio signal, Ring has the 12 volts DC required to operate the Personal Monitor devices, and the Sleeve connects to ground.
| Input Power | 12 VAC, 700 mA |
| Output Power | 12 VDC on Ring terminal of output TRS jack |
| Dimensions | 3.125 x 3.125 x 1.25" ( 80 x 80 x 32mm ) |
| Weight | 1 lb ( 450 g ) |
| Packaging Info | |
|---|---|
| Package Weight | 1.5 lb |
| Box Dimensions (LxWxH) | 6.929 x 4.646 x 2.677" |
- 12V Power Adapter
- 1-Year Warranty
