$63.09The Story
- Personal Monitor Amp for Live and Studio
- Built-in Switchable Optical Limiter
- XLR Mic In & Pass Through
- Ground Lift on XLR Signal
- Stereo/Mono 1/4" Monitor Input
- 3.5mm and 1/4" Headphone Outputs
- Power by 9 Volt or Included Power Supply
- Belt Clip Included

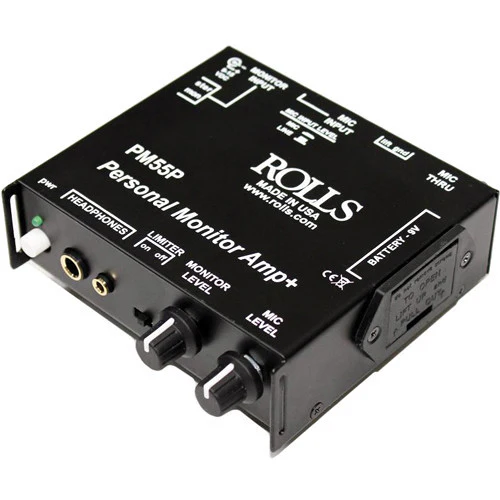

The PM55P Stereo Personal Monitor Amplifier with Optical Limiter from Rolls is designed for performers who need to monitor their own signal, such as their vocal, with the main mix.
The unit can also be used by drummers in live sound applications who need to mix a metronome click with a monitor signal. Also, sound engineers can use the PM55P as a quick line tester to troubleshoot audio systems.
The PM55P operates on either one 9 volt battery or the included PS27s power supply. The PM55P also has an included belt clip.
-
- Built-in switchable optical limiter
- XLR mic in & pass through
- Ground lift on XLR signal
- Stereo/mono 1/4" monitor input
- 3.5mm and 1/4" headphone outputs
- Powered by one 9 volt battery or the included PS27s power supply
- Belt clip is included
| Max Input | -20 dB XLR, 40 dB monitor |
| Input Impedance | 600 ohm mic, - 22k ohm monitor |
| Output Impedance | 10 ohms |
| Gain | 20 dB 1/4", 50 dB XLR |
| Bandwidth | 50 Hz - 20 kHz |
| S/N Ratio | 90 dB |
| Limiter Threshold Range | 0 dB |
| Current Draw | 70 mW nominal |
| Max Output | 100 mW @ 16 ohm |
| Power | 9 - 15 VDC |
| Size | 4.5 x 4.0 x 1.4" (114.0 x 101.6 x 34.9 mm) |
| Weight | 1.00 lb (0.45 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 7.1 x 4.8 x 2.4" |
- Limited 1-Year Warranty
