$6.52
Original: $21.73

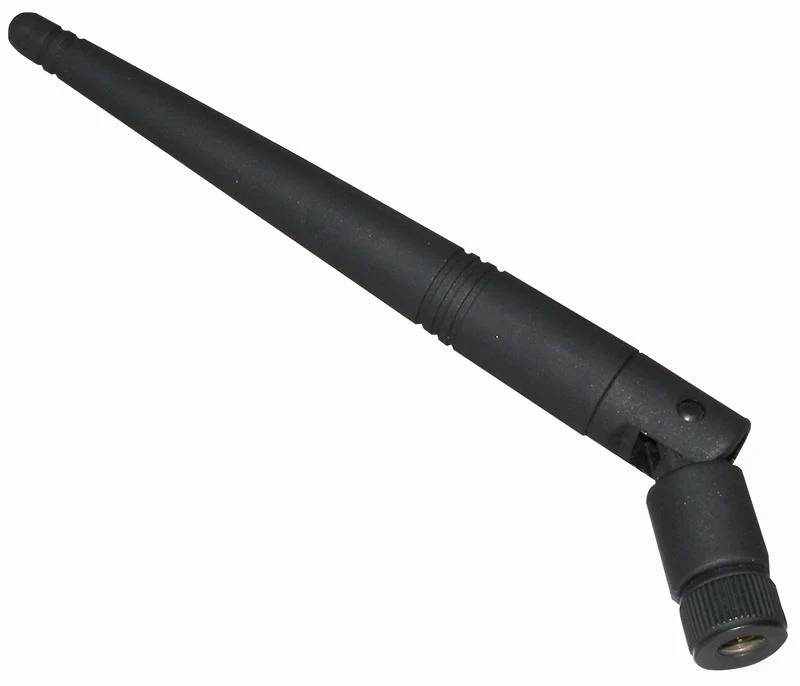

-70%RF SOLUTIONS ANT-24G-WPJ-SMA Mini Helical Antenna, Whip, 2.4 - 2.5Ghz, 90 Degree SMA Fixingā
$21.73
$6.52The Story
Ā¼" Wavelength whip antenna
- Ā¼" Wavelength whip antenna
- Omni-directional design
- Hinged design with rugged flexible plastic finish
- 2.4-2.5GHz
- 50R impedance
- 2 dB Gain
- VSWR <2.0
- Operating temperature -30 to +60Ā°C
- SMA Connection
- Applications
- General low power radio
- M2M applications
Applications
Wireless
Product details
| Antenna Type: Omni-directional |
| Frequency Min: 2.4GHz |
| Frequency Max: 2.5GHz |
| Antenna Mounting: SMA Connector |
| Gain: 2dB |
| VSWR: 2 |
| Input Power: - |
| Input Impedance: 50ohm |
| Antenna Polarisation: Vertical |
| Product Range: - |
Other details
| Brand | RF SOLUTIONS |
| Part Number | ANT-24G-WPJ-SMA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Description
Ā¼" Wavelength whip antenna
- Ā¼" Wavelength whip antenna
- Omni-directional design
- Hinged design with rugged flexible plastic finish
- 2.4-2.5GHz
- 50R impedance
- 2 dB Gain
- VSWR <2.0
- Operating temperature -30 to +60Ā°C
- SMA Connection
- Applications
- General low power radio
- M2M applications
Applications
Wireless
Product details
| Antenna Type: Omni-directional |
| Frequency Min: 2.4GHz |
| Frequency Max: 2.5GHz |
| Antenna Mounting: SMA Connector |
| Gain: 2dB |
| VSWR: 2 |
| Input Power: - |
| Input Impedance: 50ohm |
| Antenna Polarisation: Vertical |
| Product Range: - |
Other details
| Brand | RF SOLUTIONS |
| Part Number | ANT-24G-WPJ-SMA |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
