Product Overview

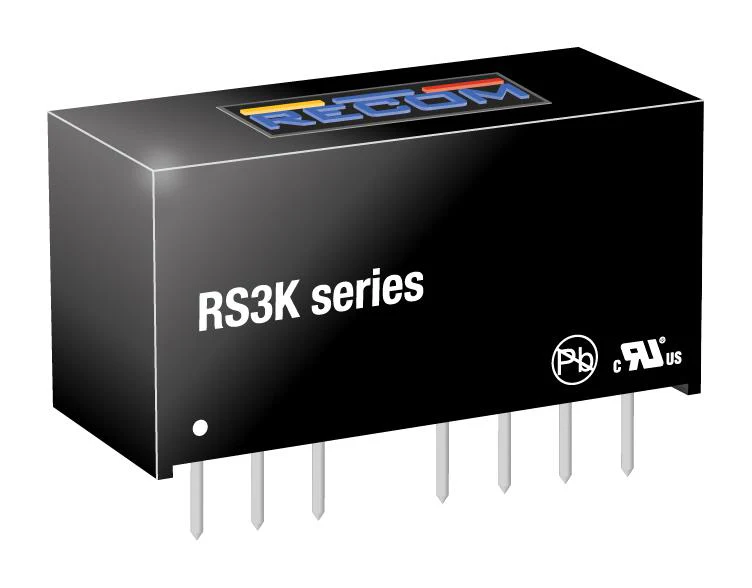

RS3K-2405SZ/H3 is a 3W RS3K-Z series SIP8 single output regulated DC/DC converter. It is a state-of-the-art DC/DC converter with a wide 4:1 input voltage range from ensuring reliable performance in a wide range of applications. It is also equipped with an ON/OFF control, allowing for quick and easy power management. High accuracy and tight line and load regulation ensure that the device operates stably even under challenging conditions. It is also equipped with continuous short circuit protection and under voltage lockout (UVLO) for added safety. With IEC/EN/UL 62368-1 certification, 3W maximum output power, 0% minimum load, and high typical efficiency, it is an excellent choice for industrial applications. The device is designed to operate within an industrial temperature range of -40°C to 80°C without derating.
- Input voltage range from 9 to 36VDC, output voltage is 5VDC
- Output current is 600mA, typical efficiency is 84% (at nominal input and full load at +25°C ambient)
- 4:1 wide input voltage range, no minimum load required
- PD2 pollution degree
- Black plastic, (UL94 V-0) case material
- 3 years warranty
- Dimension (L x W x H) is 21.8 x 9.2 x 11.1mm
Product details
Other details
| Brand | RECOM POWER |
| Part Number | RS3K-2405SZ/H3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
