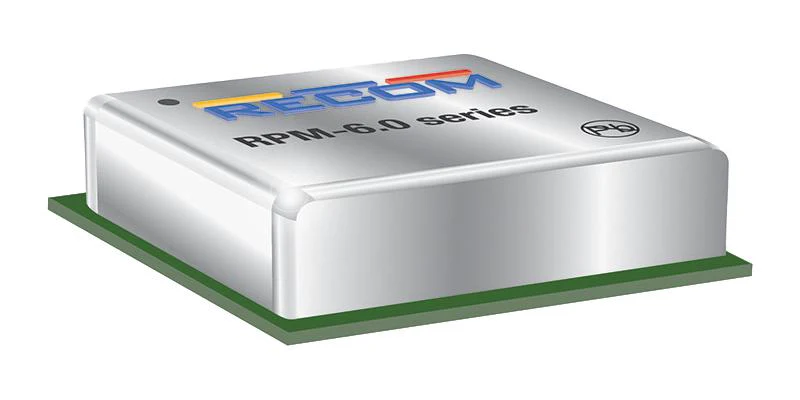

-70%RECOM POWER RPM3.3-6.0-CT Non Isolated POL DC/DC Converter, ITE, 1 Output, 19.8 W, 3.3 V, 6 A, Fixed, Adjustable—
$13.39
$4.02The Story
RPM-6.0 series is a 6A single output non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures as high as +90°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
- 3.3VDC output voltage, 4 to 15VDC input voltage
- High power density (L*W*H = 12.19mm x 12.19mm x 3.75mm)
- Wide operating temperature range from -40°C to 90°C at full load
- Thermally and EMI enhanced 25 pin LGA package
- Compact DOSA compatible footprint
- Low profile
- Internal operating frequency of 2.4MHz
- Designed to meet EN62368-1 standard
- Short circuit protection, overcurrent protection, overtemperature protection, undervoltage lockout
- Metal case, FR4 (UL94 V-0) PCB, copper with electrolytic nickel-gold solder pads
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 19.8W |
| Output Voltage Nom: 3.3V |
| Output Current Max: 6A |
| DC / DC Converter Output Type: Fixed, Adjustable |
| DC / DC Converter Mounting: Surface Mount Device |
| Input Voltage DC Min: 4V |
| Input Voltage DC Max: 15V |
| DC / DC Converter Type: Module |
| Depth: 12.19mm |
| Width: 12.19mm |
| Height: 3.75mm |
| Product Range: RPM-6.0 Series |
Other details
| Brand | RECOM POWER |
| Part Number | RPM3.3-6.0-CT |
| Quantity | Each |
| Technical Data Sheet EN |  |
