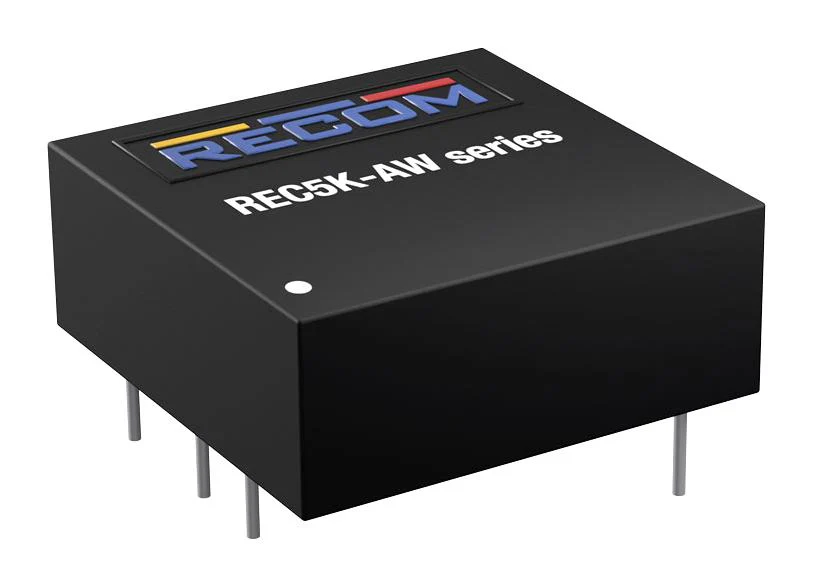

-70%Recom Power REC5K-2405SAW/H4 REC5K-2405SAW/H4 Isolated Through Hole DC/DC Converter ITE Industrial & Medical 4:1 5 W 1 Output V A New—
$16.07
$4.82The Story
REC5K-2405SAW/H4 is a REC5K-AW series 5W single output DC to DC converter. This series offers basic isolation of 4KVDC/1sec making it ideal for both industrial, medical, and other sophisticated high end applications. The compact 25.4mm x 25.4mm non-conductive plastic package ensures high power density without compromising performance, operating with derating up to 110°C. Short circuit protection, undervoltage lockout, and remote on/off control is standard, and the converter is certified according to UL/IEC/EN62368-1 and C22.2 No. 62368-1-1.
- 9VDC to 36VDC input voltage, 5VDC nominal output voltage, 1000mA output current
- 77% typical efficiency
- Feedback regulated output
- Derates to 110°C ambient temperature
- Wide 4:1 input, ON/OFF control pin, 0% minimum load
- Operating temperature range from -40°C to +110°C
- Black plastic (UL94 V-0) case
- Internal operating frequency is 400KHz
- Dimension (LxWxH) is 25.4mm x 25.4mm x 10.0mm
Other details
| Brand | RECOM POWER |
| Part Number | REC5K-2405SAW/H4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
