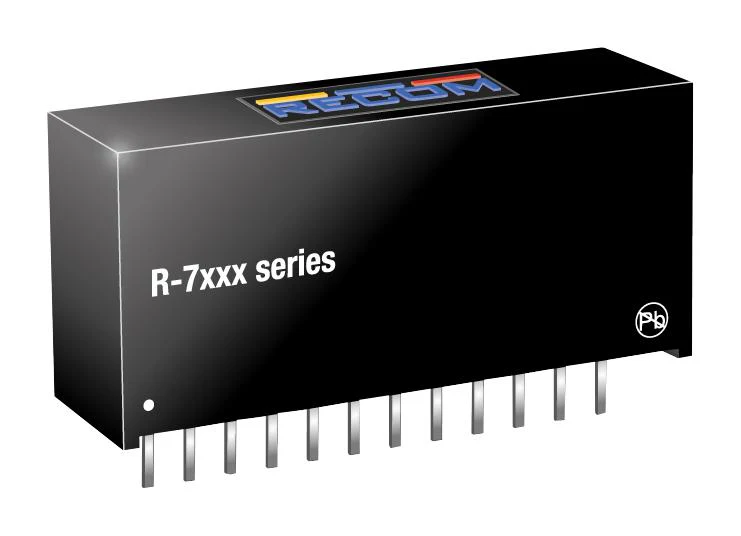

Recom Power R-733.3P R-733.3P Non Isolated POL DC/DC Converter ITE 16.5 W 2.5 V 5.5 3 A Fixed Adjustable

The R-733.3P is a 16.5W through hole-mount non-isolated DC/DC Converter with adjustable output voltage. High performance 2.5 to 15V, 2 to 4A integrated switching regulator (ISR) with 4.5 to 28V input voltage range. The Synchronous - rectified design yields excellent efficiencies up to 97%. Short circuit protection reduces the short circuit input current to under 50mA.

• Synchronous rectification design
• 2, 3, 4A Adjustable positive step down integrated switching regulator
• Over load protection (125% full load typical)
• Remote ON/OFF control (ground off)
• Wide input range
• Continuous short circuit protection (very low short current Iin sc<50mA)

Applications

Signal Processing, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	RECOM POWER
Part Number	R-733.3P
Quantity	Each
Technical Data Sheet EN
