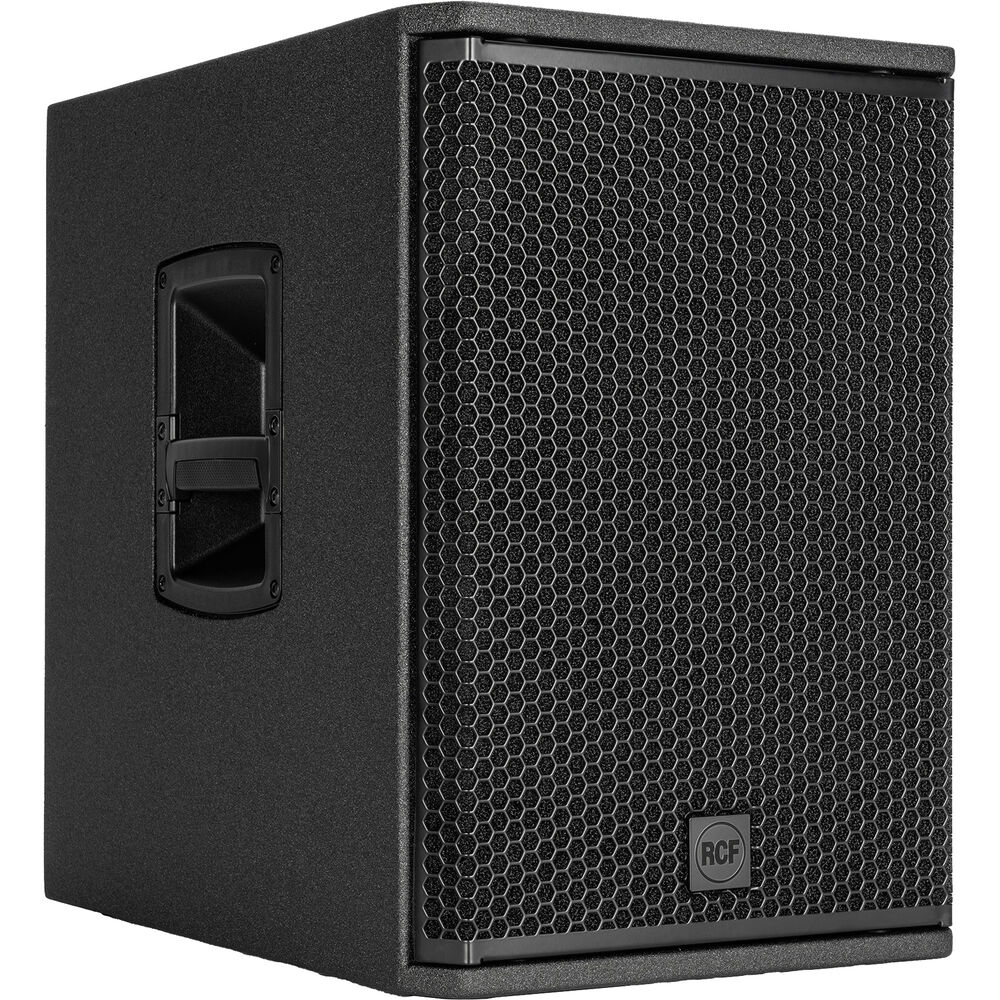

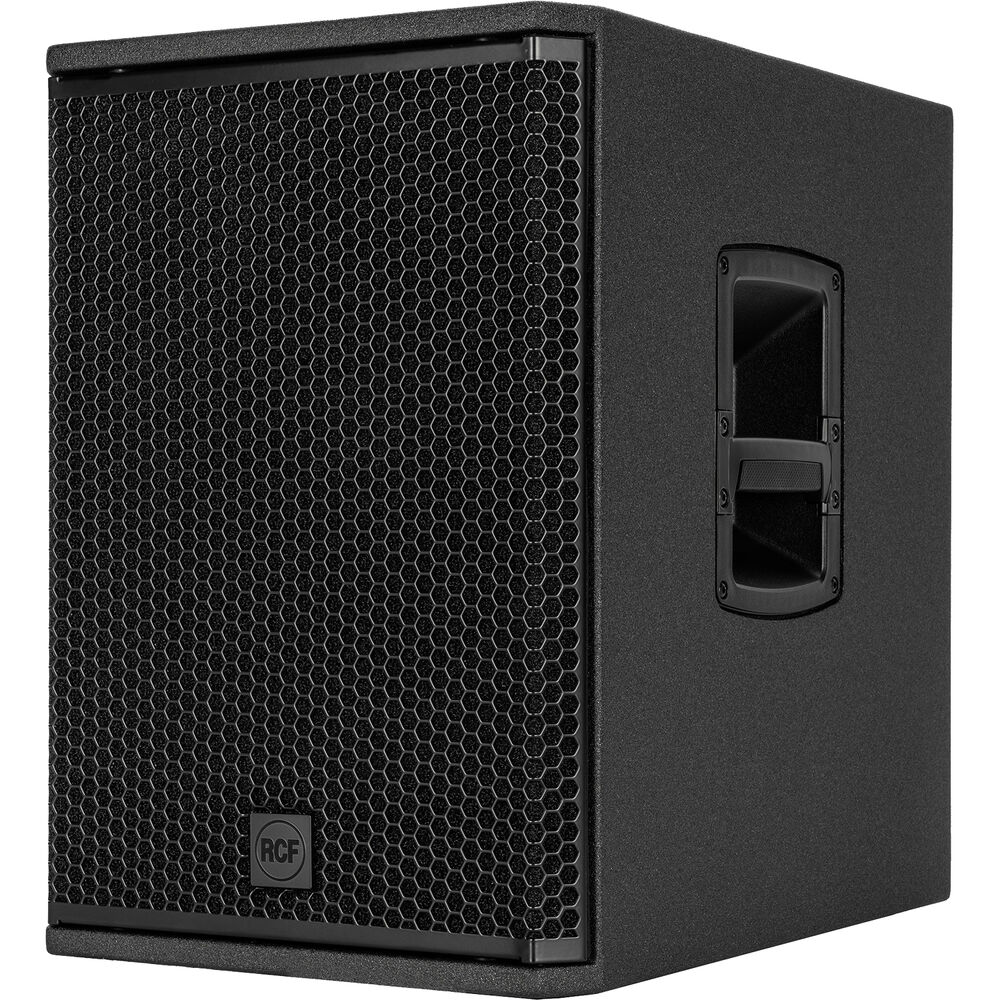

RCF SUB 702-AS MK3 12" Active Subwoofer

At a Glance

• 1400W Class-D amplifier
• 15� woofer, bass reflex housing
• 40 to 120 Hz frequency response
• 129 dB max SPL
• Stereo crossover
• Switchable crossover frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter, and protection
• Stereo XLR input, stereo XLR signal output
• Bass Motion Control excursion management

Legendary Subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to have engaging immersive experiences with both live sound or DJing applications.

Power That Moves

• RCF's improvements in transducer design make them stronger and more powerful, so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultrafast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan.
• The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a switched-mode power supply section joining high-efficiency with minimum weight.

Custom Settings

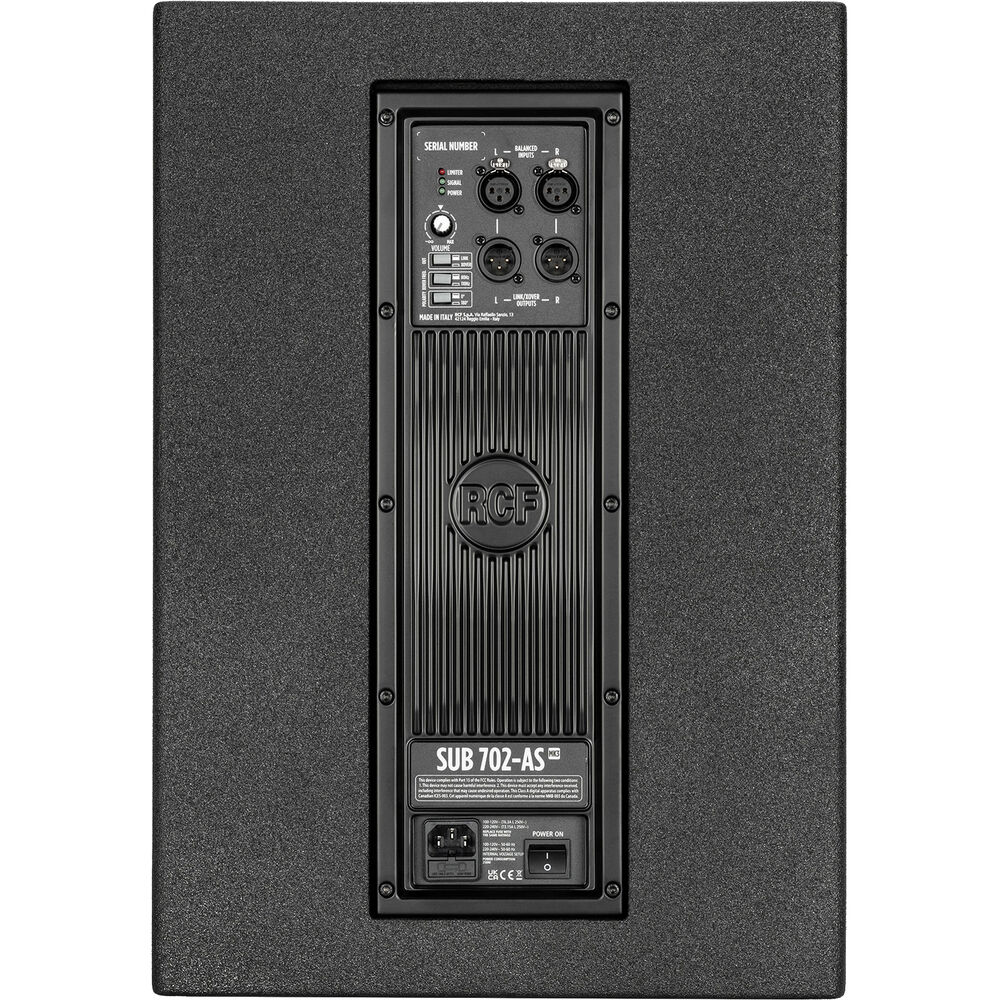

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:

• X-Over Preset: 80 Hz / 110 Hz
• Polarity Reverse
• Out Signal: Line / High Pass

Bass Motion Control

• When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
• The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Tour-Ready Workhorse

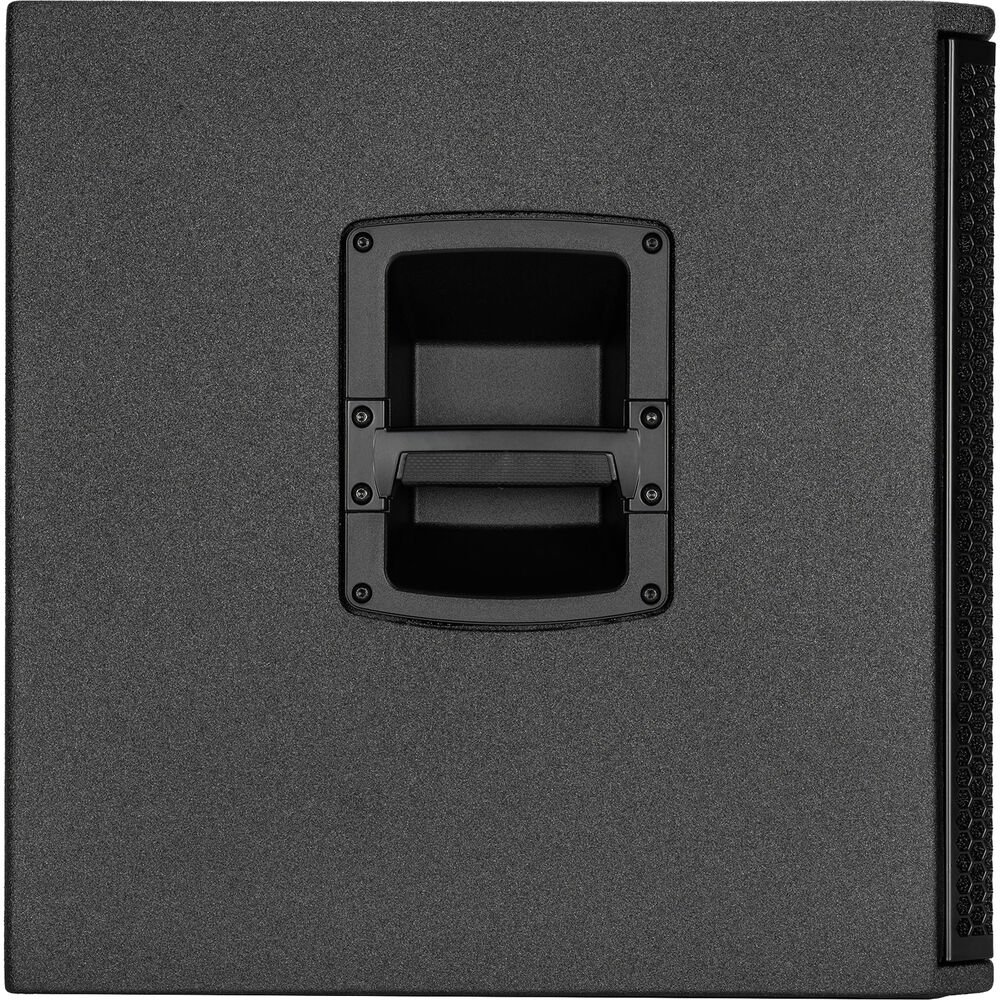

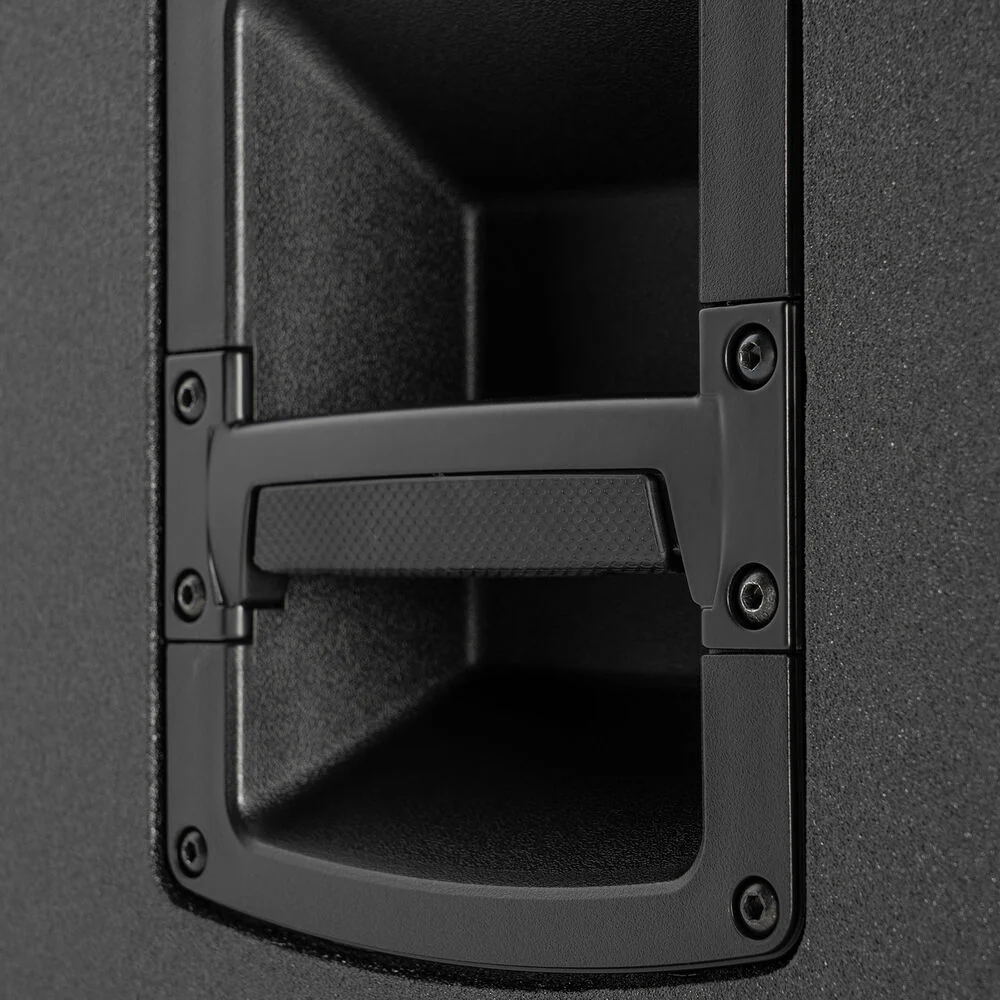

• The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack due to its light weight. All are equipped with ergonomic handles with rubber grips for easy setup and teardown. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount.

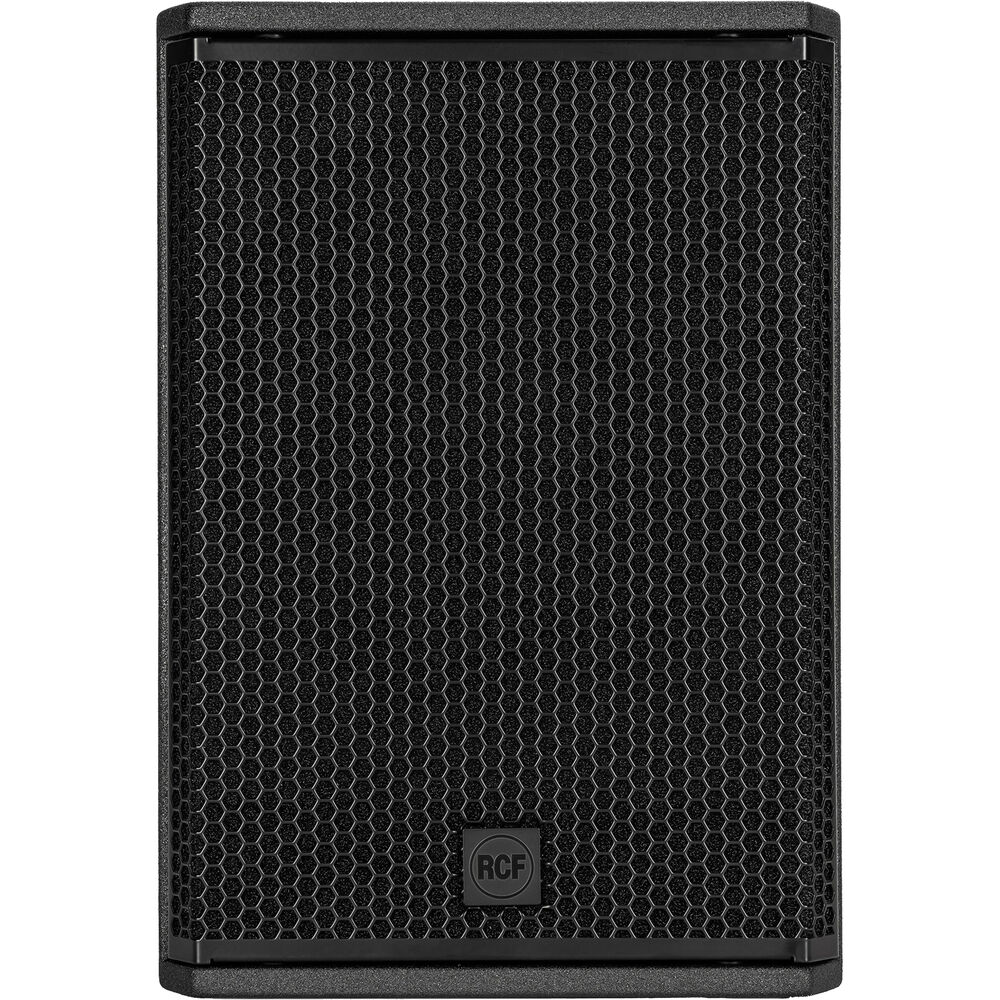

• The heavy-duty polyurea coating, the powder coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.

RCF SUB 702-AS MK3Specs

Configuration	Active Subwoofer
Enclosure Type	Subwoofer
Total Power Capacity	700 W RMS 1400 W Peak
HF Driver	No
MF Driver	No
LF Driver	1x 12" / 304.8 mm Inverted Woofer
Wireless Connectivity	No
Color	Black

Enclosure Type	Subwoofer
Total Power Capacity	700 W RMS 1400 W Peak
Amplifier Class	Class-D

HF Driver	No
MF Driver	No
LF Driver	1x 12" / 304.8 mm Inverted Woofer
LF Voice Coil	2.5" / 63.5 mm

Frequency Response	40 Hz to 120 Hz
Maximum SPL	129 dB
Input Sensitivity	+4 dBu to -2 dB
Protections	RMS, Thermal

Audio I/O	2x XLR 3-Pin Female Balanced/Unbalanced Link Input 2x XLR 3-Pin Male Balanced/Unbalanced Link Output
Network I/O	No
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No

Crossover	Low-Pass: 80 Hz High-Pass: 110 Hz
EQ	Yes
Parametric EQ	No
Semi-Parametric EQ	No
Dynamic Processing	Soft Limiter
Alignment Delay	No
Phase Adjustment	Yes

AC Input Power	100 to 120 VAC, 50 / 60 Hz 220 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x IEC Input

Color	Black
Mounting	1 x 1.4" / 35 mm Pole Socket (Top)
Handles	2x Side
Construction Material	Plywood, Steel
Dimensions	20.5 x 20.2 x 14.1" / 52.1 x 51.3 x 35.8 cm
Weight	46.3 lb / 21 kg

Package Weight	56.72 lb
Box Dimensions (LxWxH)	22.25 x 22.25 x 16.5"
