RCF F-10XR 10-Channel Mixer with Multi-FX and Stereo Recording

$285.25

Original: $950.85

-70%

RCF F-10XR 10-Channel Mixer with Multi-FX and Stereo Recording—

$950.85

$285.25

Original: $950.85

-70%

RCF F-10XR 10-Channel Mixer with Multi-FX and Stereo Recording—

$950.85

$285.25

The Story

RCF F10-XR Overview

1 Description
2 High-Quality Preamps
3 EQ on Mono & Stereo Channels
4 Single-Knob Compressors
5 24-Bit FX
6 USB Recording and Playback

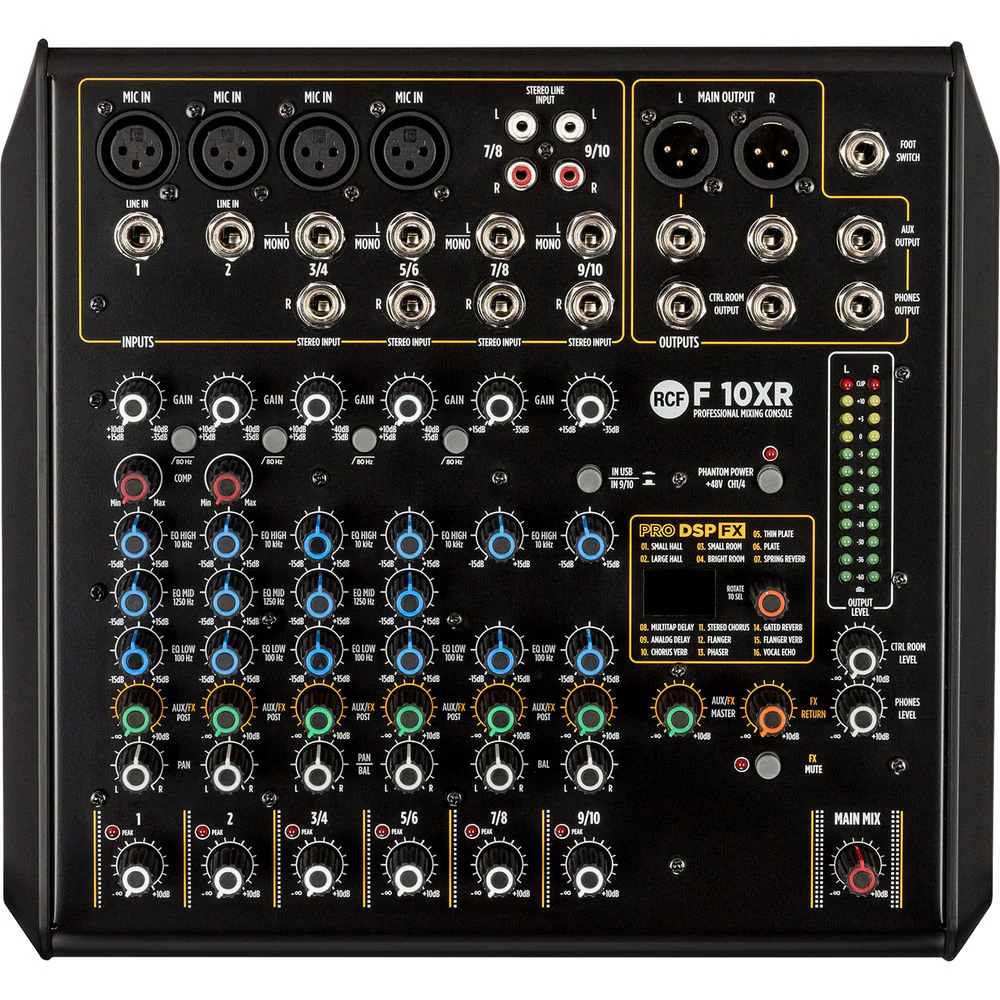

The RCF F-10XR is a mixer designed for live sound applications. It has four mic preamps, two mono line inputs, and four stereo line inputs. Line connections can be made over 1/4" connections or RCA terminations. You'll find 3-band EQs on the mono channels, and 2-band EQs on the stereo line inputs. Single-knob compressors are available on channels 1 and 2, and phantom power is available for the microphone inputs (channels 1 through 4).

24-bit effects are on hand to give you reverbs, echoes, delays, flangers, and more. Route to main outputs, monitors, or headphones, thanks to the comprehensive output section. Thanks to the USB output, you can record stereo audio on Mac, Windows, or iOS devices (with compatible adapters). It comes with a power supply and a footswitch and the case is fashioned in a sturdy metal.

High-Quality Preamps

High-quality preamplifiers with phantom power, inspired by the E-Series mixers, offer high-quality sound and dynamics. Line-level signals are less noisy when connected using the separate line input jack sockets.

EQ on Mono & Stereo Channels

You'll find 3-band EQ on the mono channels, and 2-band EQ on stereo channels for transparent sound shaping.

Single-Knob Compressors

The F-Series compressor is transparent limiting the dynamic range of instruments and voices.

24-Bit FX

RCF has selected 16 studio-quality effects designed for everyday use when you need great quality FX processing without the need of an external FX unit. You'll find Reverbs (halls, rooms, plates, spring), Delays (mono, stereo and multi-tap), Chorus, Flangers, and an Echo.

USB Recording and Playback

Record directly to your computer. No need for external interfaces or multiple connections and levels to check. Just plug in a USB lead to a PC or to your iPhone / iPad (2 or later) using Apple�s Camera Connection Kit / Lightning-to-USB Camera Adapter. Select the USB routing and you'll have CD-quality recording and stereo playback, effortlessly. The class-compliant design allows recording and playback from Windows, MacOs, and iOS (through USB adapter) without any additional software.

In the Box

RCF F-10XR 10-Channel Mixer with Multi-FX and Stereo Recording

Footswitch

Power Supply

Limited 3-Year Warranty

Table of Contents

Description
High-Quality Preamps
EQ on Mono & Stereo Channels
Single-Knob Compressors
24-Bit FX
USB Recording and Playback

RCF F10-XR Specs

Inputs

Input Connections	4 x XLR Inputs 10 x 1/4" Inputs (4 x Stereo Pairs, 2 Mono) 4 x RCA Inputs (2 x Stereo Pair) 1 x 1/4" Footswitch Input
Gain Range	0 to -50 dB
Input Impedance	Mic: 14 Kilohms Line: 21 Kilohms Stereo Line: 15 Kilohms
Frequency Response	20 Hz to 20 kHz
Gain Selection	20 dB to -30 dB
Low Cut Filters	80 Hz
Phantom Power	+48 V

Outputs

Output Connections	2 x XLR Main Outputs 2 x 1/4" Main Outputs 2 x 1/4" CTL Room Outputs 1 x 1/4" Auxiliary Output 1 x 1.4" Headphones Output
Output Level	28 dBu
Headphone Impedance	150 Ohms

System Specifications

Compressor	Single-Control Compressors on Channels 1 and 2
Equalization	Input Channels: 2 Shelving / 1 Generic High: ±15 dB at 10 kHz, Shelving Mid: ±15 dB at 1.25 kHz, Bell Low: ±15 dB at 100 Hz, Shelving
USB Audio	Type-B, 2-Channel I/O, 44.1 or 48 kHz Sample Rate
Case Material	Metal
Frequency Response	20 Hz to 20 kHz
THD+N	< 0.02% (20 dB Gain, 0 dBu Out, A-Weighted)
Voltage Requirements	100 to 240 VAC
Power Consumption	18 W
Power Supply	External
Dimensions (D x H x W)	10.8 x 3.2 x 11.6" / 27.5 x 8.2 x 29.4 cm
Weight	6.2 lb / 2.8 kg
