RCF COMPACT M 05 Passive 2-Way Speaker

$227.16

Original: $757.19

-70%

RCF COMPACT M 05 Passive 2-Way Speaker—

$757.19

$227.16

Original: $757.19

-70%

RCF COMPACT M 05 Passive 2-Way Speaker—

$757.19

$227.16

The Story

RCF COMPACT M 05 Overview

1Description
2Great Sound for Your Atmosphere
3Take up Space in the Brain, Not the Room
4Improve Customer Experience
5Smooth Installation

Give your customers, patrons, and employees the sound they deserve with the RCF COMPACT M 05, a compact passive speaker suitable for a wide range of installed applications. With its speaker construction, frequency range, and constant directivity angle of 120 x 80°, this monitor provides a professional, hi-fi sound in a customer-facing environment.

This speaker delivers a good sound at low and high levels, making it suitable for background music and foreground sound applications. Its elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with its M6 and M8 mounting options.

Note:

Please note: a 160W amplifier is recommended for use with this speaker.

Great Sound for Your Atmosphere

From restaurants to retail shops, this speaker will fit right in, thanks to its elegant design aesthetic and RCF signature sound quality.

Take up Space in the Brain, Not the Room

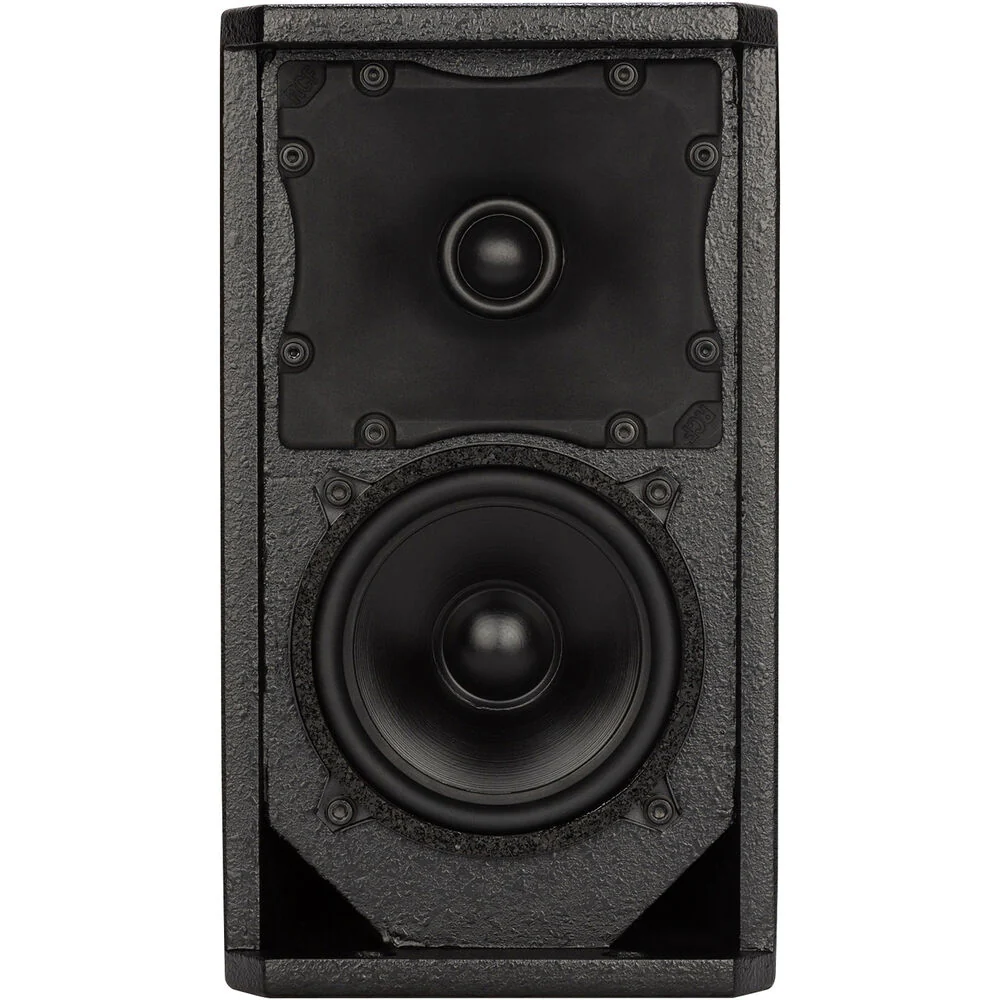

With its 5" woofer and 1.3" neodymium dome tweeter, the M 05 is quite compact, though it produces a clear sound up to 80W RMS and 115 dB SPL. This means your audience/customers won't be bothered by the look of the speaker, allowing them to become fully immersed in the sonic atmosphere you're trying to create in your space.

Improve Customer Experience

Music helps engagement, improving the hospitality of your environment�especially if the sound is of a high quality, which RCF delivers for both background music and high-powered foreground audio. Furthermore, this speaker can reproduce frequencies of 70 Hz to 20 kHz, which is quite impressive from an installation speaker with a 5" woofer.

Smooth Installation

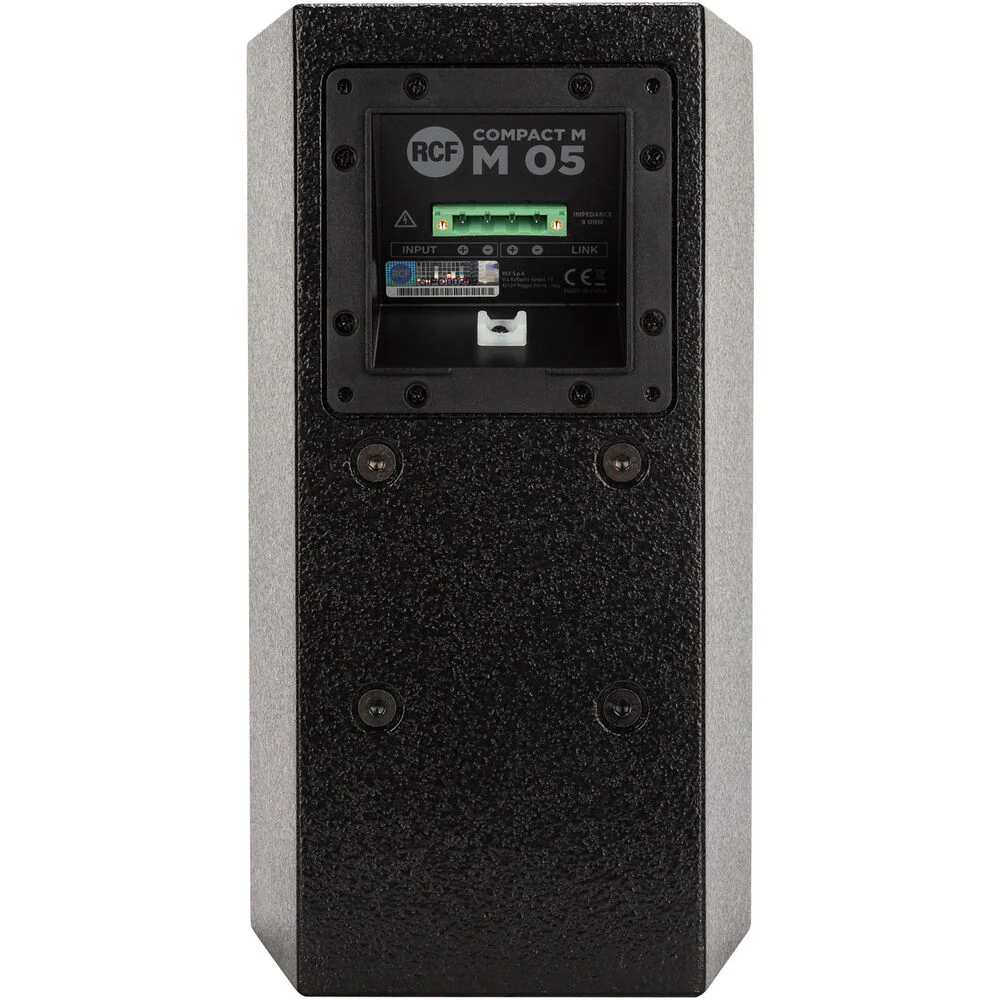

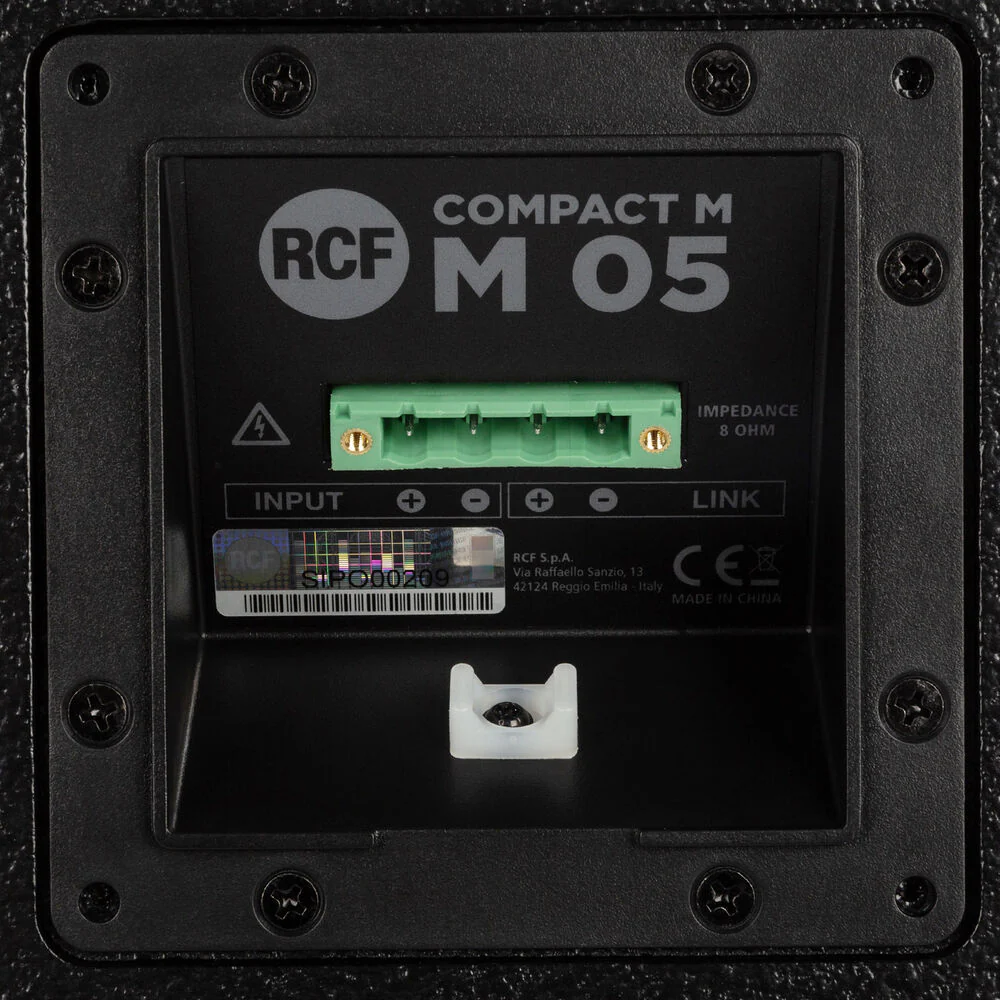

Compact M speakers stick to the functionality and style of the Italian design, always in harmony with any type of interiors. With multiple rigging points, installation time is minimal. Installation points are available on rear, top, and bottom panels. Optional mounting accessories allow using M 05 on wall or ceiling installations. The EUROBLOCK connection panel can be replaced with female Neutrik speakON connection panel (available separately) in seconds, so you ostensibly have your choice of connectivity options.

In the Box

RCF COMPACT M 05 Passive 2-Way Speaker
Limited 3-Year warranty

Table of Contents

Description
Great Sound for Your Atmosphere
Take up Space in the Brain, Not the Room
Improve Customer Experience
Smooth Installation

RCF COMPACT M 05 Specs

Configuration	Passive 2-Way
Total Power Capacity	Passive: 80 W RMS Passive: 320 W Peak
System Impedance	8 Ohms

Drivers

HF Driver	1 x 1.3" / 33 mm Dome Tweeter
HF Voice Coil	1" / 25.4 mm
MF Driver	None
LF Driver	1 x 5" / 127 mm Woofer
LF Voice Coil	1.2" / 30.5 mm

Performance

Frequency Range	70 Hz to 20 kHz -10 dB
Maximum SPL	115 dB SPL (Peak)
Coverage Angle	120° H x 80° V
Directivity	7 (Directivity/Q Factor)
Speaker Sensitivity	Passive: 89 dB HF: 92 dB LF: 89 dB

Connectivity

Audio I/O

1 x Euroblock 4-Pin Input
1 x Euroblock 4-Pin Link Output

Signal Processing

Crossover	2.2 kHz
Phase Adjustment	None

Physical

Mounting	2 x M8 Bracket Point 4 x M6 Bracket Point
Handles	None
Construction Material	Plywood, Steel
Dimensions	11.9 x 7.5 x 6.8" / 303 x 191 x 172 mm
Weight	9.9 lb / 4.5 kg
