$6.22
Original: $20.72

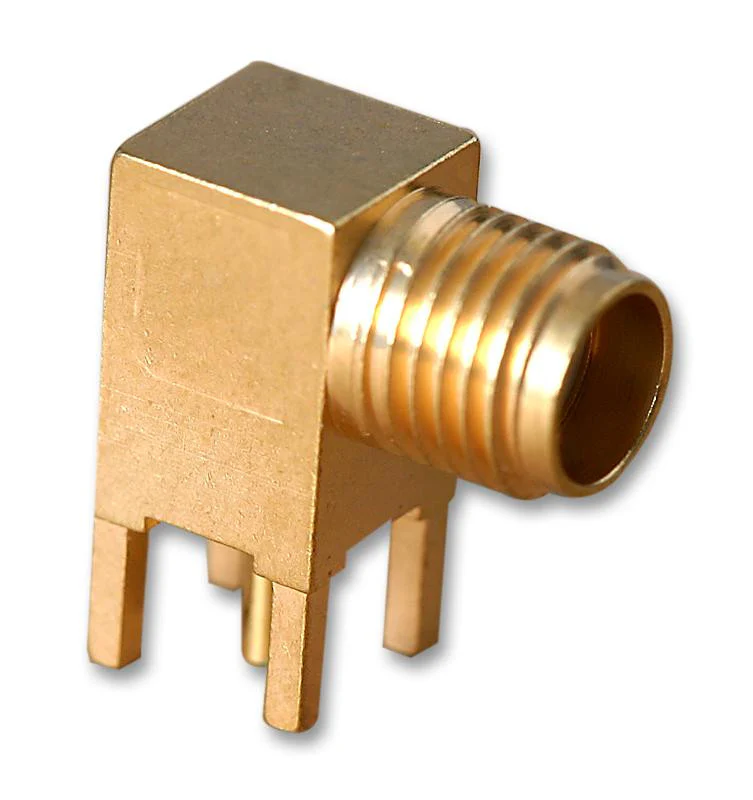

-70%RADIALL R124680123 RF / Coaxial Connector, SMA Coaxial, Right Angle Jack, Through Hole Right Angle, 50 ohm—
$20.72
$6.22The Story
The R124680123 is a right angle SMA Jack Receptacle for PCB solder legs, with gold over nickel plated beryllium copper center contact, gold over nickel plated brass body. This SMA-COM series jack receptacle has PTFE insulation, PCB mounting and through hole termination.
- Subminiature coaxial connector
- Screw-on coupling
- High RF performance
- Meets MIL-C-39012 standard
- -65 to 165°C Temperature rating
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | Through Hole Right Angle |
| Connector Mounting | PCB Mount |
| Connector Body Style | Right Angle Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 18GHz |
Other details
| Brand | RADIALL |
| Part Number | R124680123 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
