Original: $1,092.78
-70%$1,092.78
$327.83The Story
- For Flat-Panels Up to 100 lb (45.5kg)

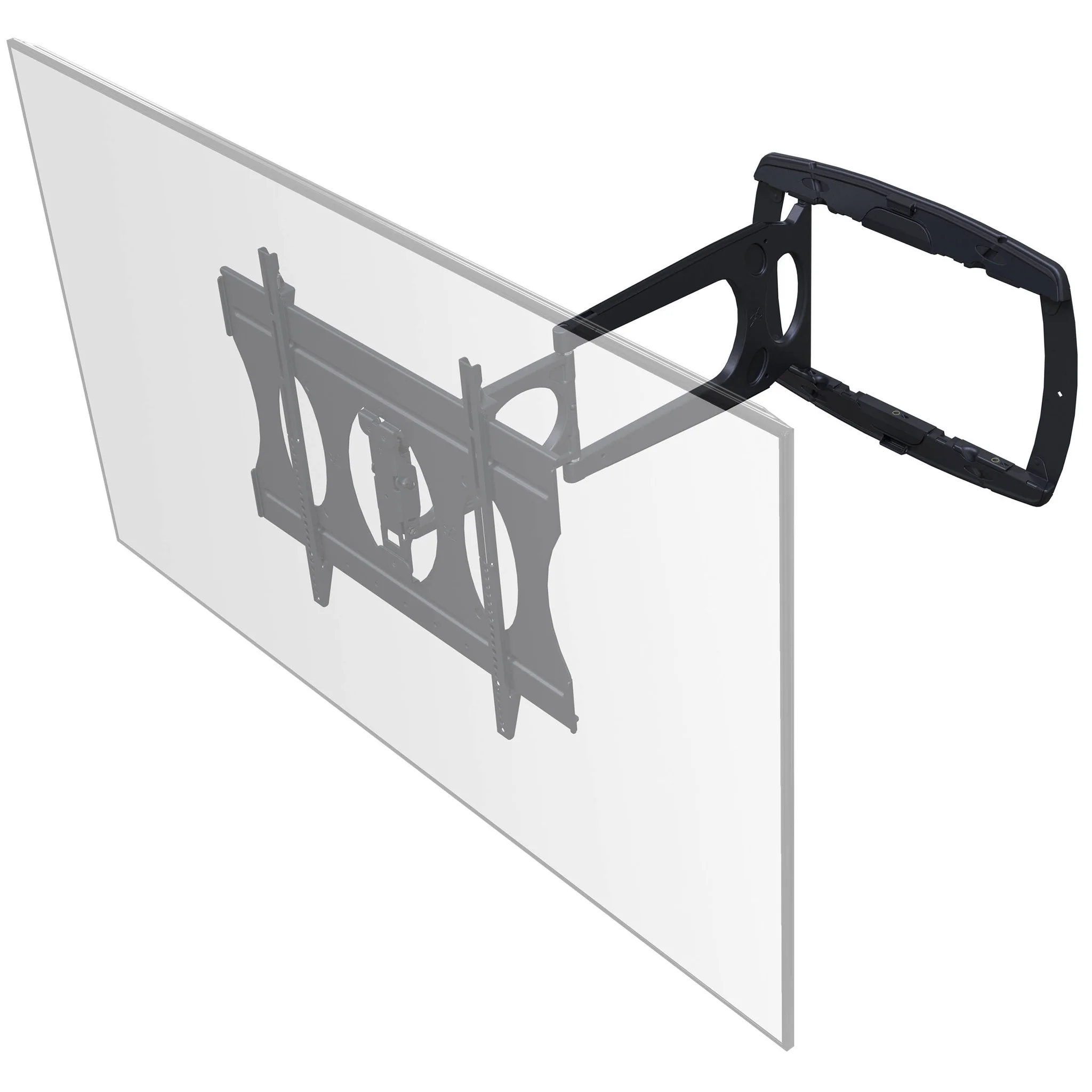

The black AM100 Low-Profile Ultra-Slim Swingout Mount from Premier Mounts is designed for flat-panels up to 100lb (45.5kg). It is a slim mounting wall plate that provides 3 options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements.
The swing-out arm extends 30.00� (76.20cm) from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. This lightweight aluminum mount retracts smoothly and easily to a 1.46� (3.70cm) from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.
- Low profile and ultra thin swing-out flat-panel mount
- Designed for slimline flat-panels
- Universal mounting pattern up to 630 x 526 mm
- Extends 30.00" (76.20cm) from the wall
- 15° tilt
- Collapses to 1.5" (3.81cm) deep
| Mounting Pattern Type | Range |
| Mounting Pattern | Minimum to Maximum: 100 x 100 to 630 x 526 mm |
| Display Range | 37.00 to 72.00" (93.98 to 182.88 cm) |
| Tilt | +15.00° |
| Extension | 30.00" (76.20 cm) |
| Swivel | 180° |
| Weight Capacity | 100.0 lb (45.5 kg) |
| Depth | 1.50" (3.81 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 32.9 lb |
| Box Dimensions (LxWxH) | 31.0 x 19.0 x 4.0" |
- Limited Lifetime Warranty
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- For Flat-Panels Up to 100 lb (45.5kg)
The black AM100 Low-Profile Ultra-Slim Swingout Mount from Premier Mounts is designed for flat-panels up to 100lb (45.5kg). It is a slim mounting wall plate that provides 3 options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements.
The swing-out arm extends 30.00� (76.20cm) from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. This lightweight aluminum mount retracts smoothly and easily to a 1.46� (3.70cm) from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.
- Low profile and ultra thin swing-out flat-panel mount
- Designed for slimline flat-panels
- Universal mounting pattern up to 630 x 526 mm
- Extends 30.00" (76.20cm) from the wall
- 15° tilt
- Collapses to 1.5" (3.81cm) deep
| Mounting Pattern Type | Range |
| Mounting Pattern | Minimum to Maximum: 100 x 100 to 630 x 526 mm |
| Display Range | 37.00 to 72.00" (93.98 to 182.88 cm) |
| Tilt | +15.00° |
| Extension | 30.00" (76.20 cm) |
| Swivel | 180° |
| Weight Capacity | 100.0 lb (45.5 kg) |
| Depth | 1.50" (3.81 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 32.9 lb |
| Box Dimensions (LxWxH) | 31.0 x 19.0 x 4.0" |
- Limited Lifetime Warranty
