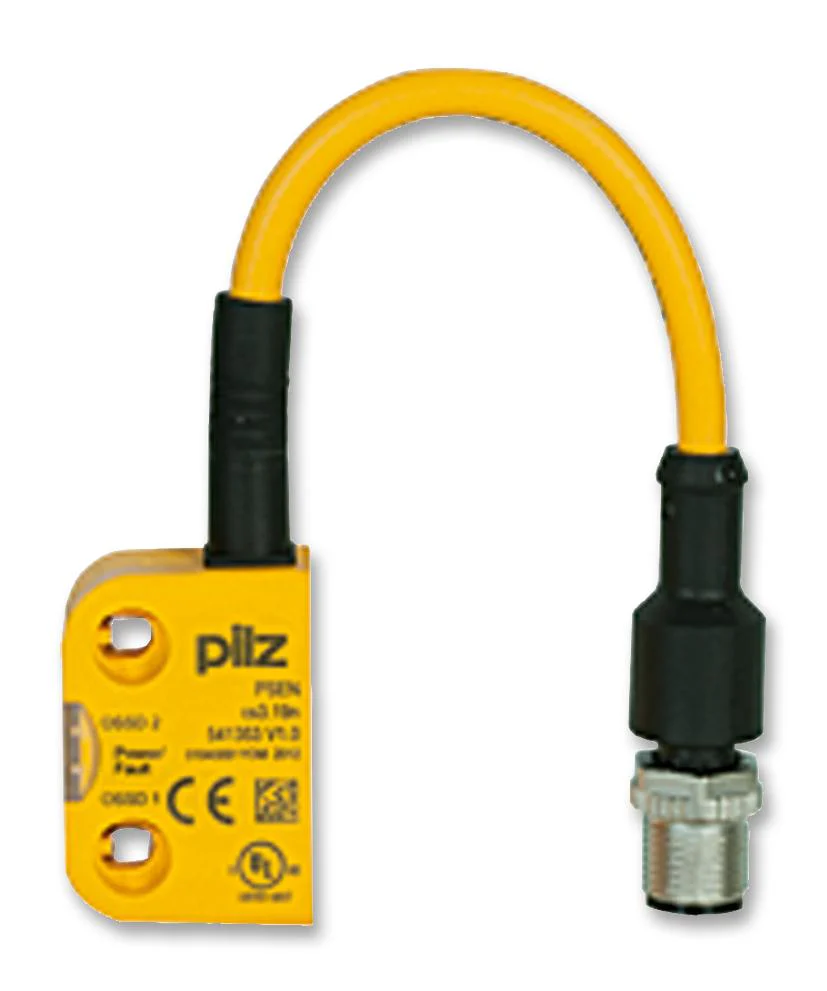

-70%PILZ 541010 Safety Interlock Switch, PSENcode, DPST-NO, DPST-NC, Connector—
$258.75
$77.62The Story
The 541010 is a non-contact Coded Safety Switch used for monitoring safety gates with the highest level of manipulation protection or safe position monitoring with up to three actuators. It offers a long product operating life to RFID transponder technology. The coded means switch accepts any PSENcode actuator.
- Transponder sensor principle
- Dual OSSD outputs
- Dual inputs
- M8, 8pol male Connection
- 1W Power consumption
- 8mm Assured switching distance
- 20mm Assured release distance
- IP6K9K Protection rating
- -25 to 70°C Ambient temperature
Applications
Industrial, Safety
Product details
| Product Range: - |
| Contact Configuration: DPST-NO, DPST-NC |
| Switch Terminals: Connector |
| Contact Voltage AC Max: - |
| Contact Current AC Max: - |
| IP Rating: - |
| Contact Voltage DC Max: 24V |
| Contact Current DC Max: - |
Other details
| Brand | PILZ |
| Part Number | 541010 |
| Quantity | Each |
| Technical Data Sheet EN |  |
