-70%Pickering 67-1-C-12/5 67-1-C-12/5 Reed Relay Spdt 12 V 67 Series PCB 150 ohm 3 A—
$210.38
$63.11The Story

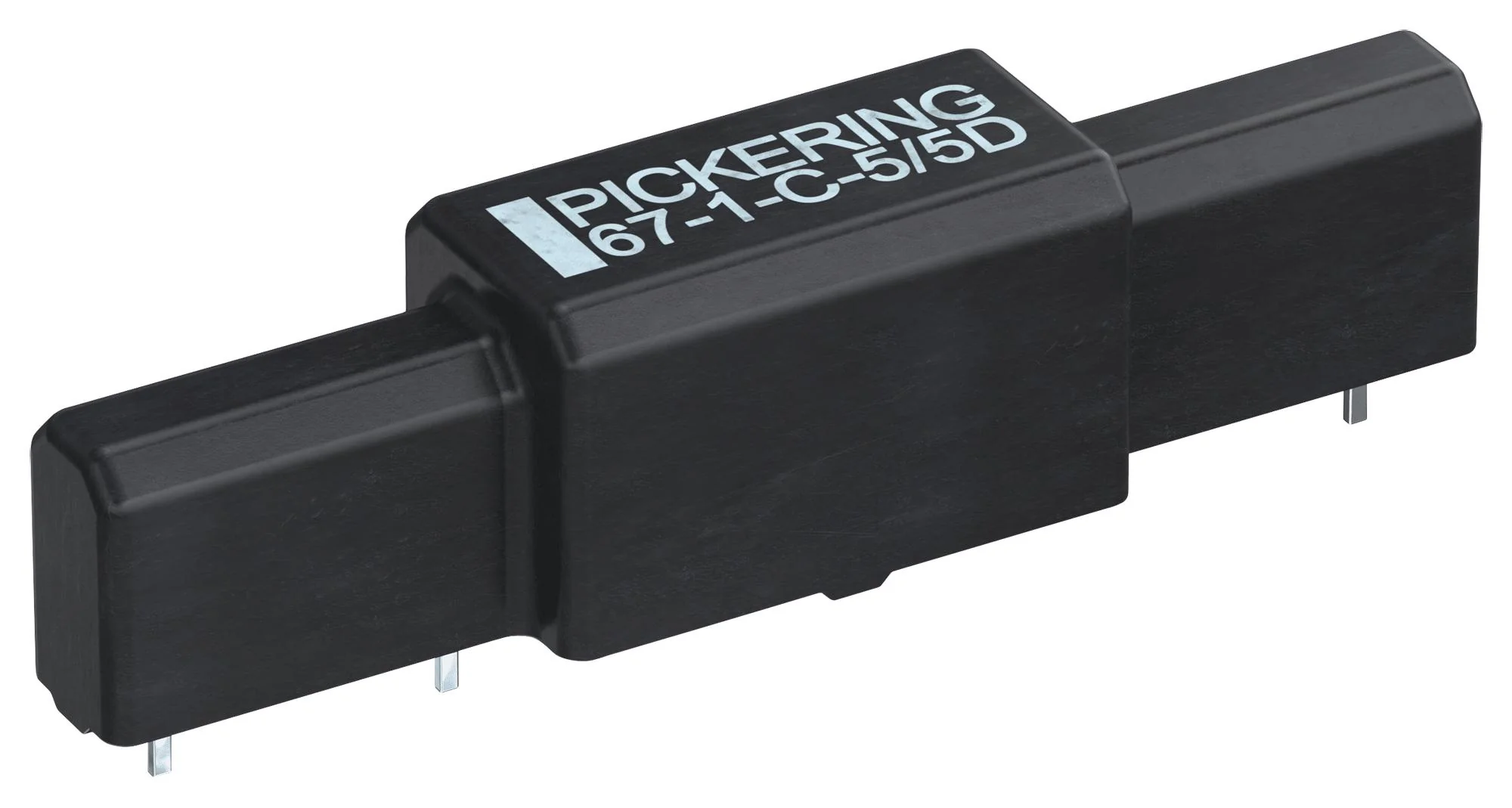

67-1-C-12/5 is a 67 series high voltage dry reed relay. It has small size and encapsulated in plastic package with internal mu-metal magnetic screen. It is constructed by using a lead frame in a Single-in-Line format and features former-less coils which enables a smaller package. The unusual package style allows interesting stacking possibilities when used to construct high density multiplexers or matrices.
- Tungsten plated contacts ensure a long and reliable life
- 1 Form C configuration
- Operating temperature range is -20°C to +85°C
- Coil voltage is 12V, coil resistance is 150 ohm
- Maximum contact resistance is 0.5 ohm
- Maximum operating voltage is 9V, minimum operating voltage is 1.2V
- Power rating is 100W, maximum switch current is 3A
- Maximum switching volts is 2500V
- Minimum stand-off volts is 5000V
- Life expectancy is 10�
Other details
| Brand | PICKERING |
| Part Number | 67-1-C-12/5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
