$7.91
Original: $26.35

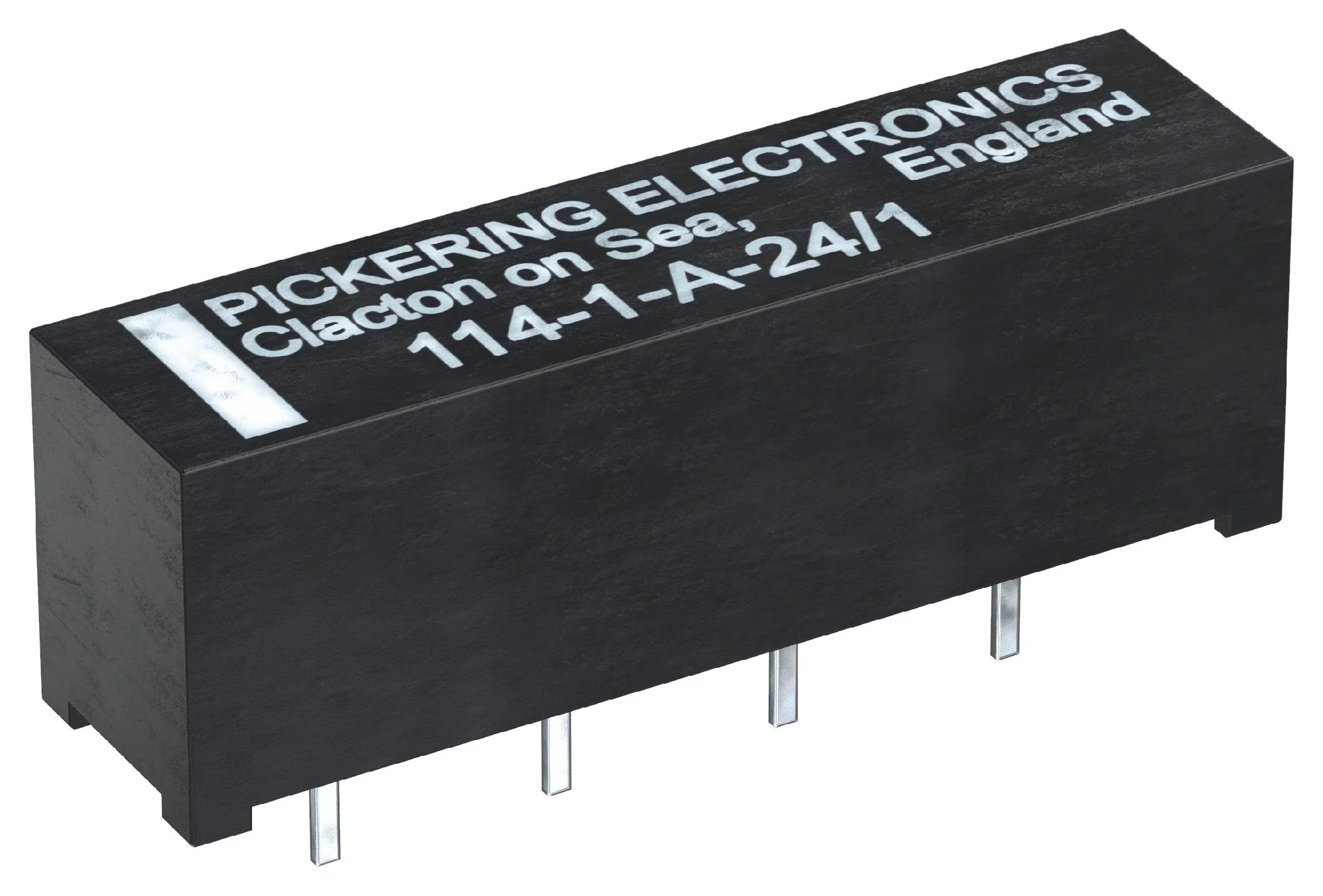

-70%Pickering 114-1-A-5/1D Reed Relay SPST-NO 5 V 114 Series Through Hole 250 ohm 1 A—
$26.35
$7.91The Story
114-1-A-5/1D is a 114 series general purpose high power SIL/SIP dry reed relay. This relay has sputtered ruthenium contacts with electroplated rhodium or tungsten types. This relay makes them suitable for low level or "dry" switching. It has internal mu-metal magnetic screen which is used to minimize magnetic interaction.
- Small size, 1 Form A configuration, comes with internal diode
- Highest quality instrumentation grade switch
- Coil voltage is 5V
- Coil resistance is 250 ohm
- Maximum contact resistance is 0.15 ohm
- Maximum operating voltage is 3.75V, minimum operating voltage is 0.5V
- Power rating is 40W, life expectancy is 10�
- Maximum switch current is 1.0A
- Maximum switching voltage is 200VDC & 240VAC RMS
- Operating temperature range is -20°C to +85°C
Other details
| Brand | PICKERING |
| Part Number | 114-1-A-5/1D |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
