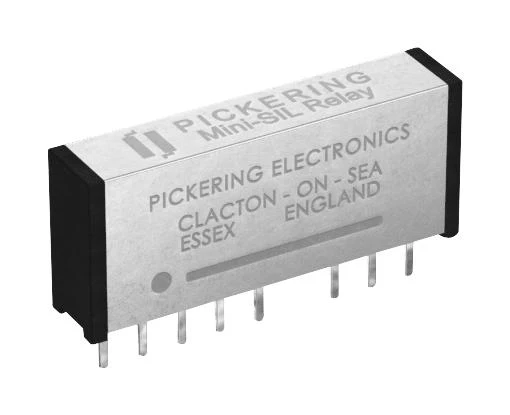

Pickering 107-2-C-5/3D Reed Relay Dpdt 5 V Mini-SIL 107 Series Through Hole 375 ohm 250 mA

107-2-C-5/3D is a 107 series Mini-SIL® changeover SIL/SIP reed relay. This is encapsulated in patented mu-metal screen and ideal for radio frequency (RF) or high speed digital applications. Also it is an ideal choice for high quality instrumentation.

• Highest quality instrumentation grade switch
• Stacking on 5.08mm pitch
• Coil voltage range is 5V
• Coil resistance is 375 ohm, maximum contact resistance is 0.22 ohm
• Maximum operating voltage is 3.75V at 25°C, minimum operating voltage is 0.5V at 25°C
• 2 Form C configuration, comes with internal diode
• Power rating is 3W, operating temperature range is -20°C to +85°C
• Maximum switch current is 0.25A
• Maximum switching voltage is 200V
• Life expectancy is 10â�·

Other details

Brand	PICKERING
Part Number	107-2-C-5/3D
Quantity	Each
Technical Data Sheet EN
