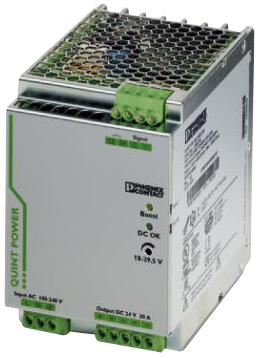

-70%PHOENIX CONTACT QUINT-PS 1AC /24DC/20/CO AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 24 VDC, 20 A 2320898, GTIN UPC EAN: 4046356520003—
$1,123.74
$337.12The Story
The QUINT-PS 1AC /24DC/20/CO is a DIN-rail mount QUINT POWER primary-switched Power Supply with protective coating and SFB (selective fuse breaking) technology. Compact power supply unit of the new QUINTÂ POWER generation maximize the availability of your system. With the SFB technology (selective fuse breaking technology), six times the nominal current for 12ms, even the standard power circuit-breaker can now also be triggered reliably and quickly. Faulty current paths are switched off selectively, the fault is located and important system parts continue to operate. Comprehensive diagnostics are provided through constant monitoring of output voltage and current. This preventive function monitoring visualizes critical operating modes and reports them to the control unit before an error can occur.
- Transient surge protection
- Varistor protective circuit/component
- 85 to 264VAC AC input voltage range
- 90 to 350VDC (UL 508: <=250VDC) DC input voltage range
- 300VAC Short-term input voltage
- 12A (slow-blow, internal) Input fuse
- <30mVp-p (with nominal values) Residual ripple
- 8W Maximum power dissipation idling
- 40W Maximum power loss nominal load
- IP20 Protection rating
Applications
Power Management
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: - |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 20A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 100V AC to 240V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Product Range: QUINT POWER Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | QUINT-PS 1AC /24DC/20/CO |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
