Phoenix Contact PTSM 05/ 3-PI-25 WH Pluggable Terminal Block 2.5 mm 3 Ways 26AWG to 20AWG 0.5 mm² Push In 6 A

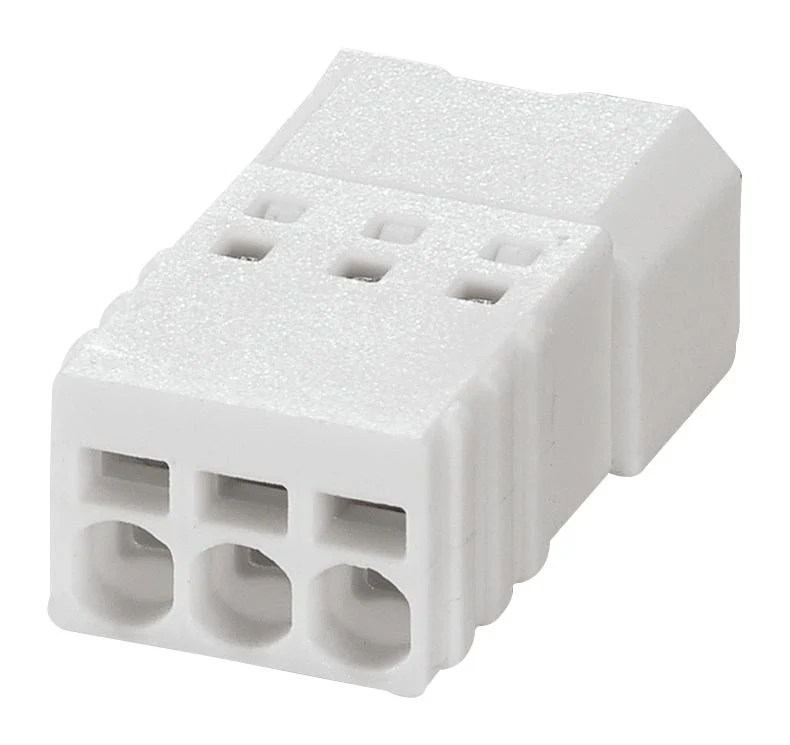

The PTSM 0,5/ 3-PI-2,5 WH from Phoenix Contact is a 2.5mm pitch 3 positioned plug. This white colour male connector has tin contact surface and use push-in spring connection for Connecting. The white design is stable colour when welding and during use, time saving push-in connection does not requires tool, defined contact force ensures that contact remains stable over the long term, high current carrying capacity of 6A in very compact dimensions and inverted connector with pin contacts for touch proof device outputs or free-hanging cable/cable connections.

• I insulating material group, PA insulating material
• 160V rated voltage (III/2), 6A nominal current and nominal cross section is 0.5 mm²
• Recognized by cULus standard
• Conductor cross section AWG is 24AWG (min) to 20AWG (max)
• Flammability rating according to UL 94 V0
• Dimension of 15.5mm x 5mm x 9.2mm (L x H x W)
• Connection in accordance with EN-VDE standard

Applications

Industrial

Other details

Brand	PHOENIX CONTACT
Part Number	PTSM 0,5/ 3-PI-2,5 WH
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
