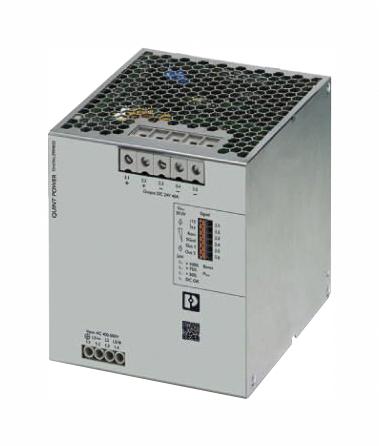

PHOENIX CONTACT 2904623 AC/DC DIN Rail Power Supply (PSU), 260 to 300VDC, 1 Output, 960 W, 24 VDC, 40 A

QUINT4-PS/3AC/24DC/40 is a primary-switched QUINT POWER power supply unit with free choice of output characteristic curve, 3-phase input. The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signalling thresholds and characteristic curves can be individually adjusted via the NFC interface. The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application. Approved by CAN/CSA-C22.2 No. 60950-1-07, CSA-C22.2 No. 107.1-01, UL Listed UL 508, UL/C-UL, UL 60950-1, UL ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D (hazardous location).

• Nominal input voltage from 3x 400VAC to 500VAC, 2x 400VAC to 500VAC, nominal output voltage is 24VDC
• Output power is 960W/1080W/1440W, nominal output current is 40A
• Typical efficiency is 95.7% (400VAC), 95.7% (480VAC)
• Available pre-configured from a batch quantity of just 1
• Most powerful output side, most robust input side, most comprehensive signalling
• Degree of protection is IP20
• Metal housing material, degree of protection is IP20
• Screw input and output connection
• Operating ambient temperature -25°C to 70°C (> 60°C derating 2.5 %/K)
• Dimension is (W x H x D) 120 x 130 x 125mm
