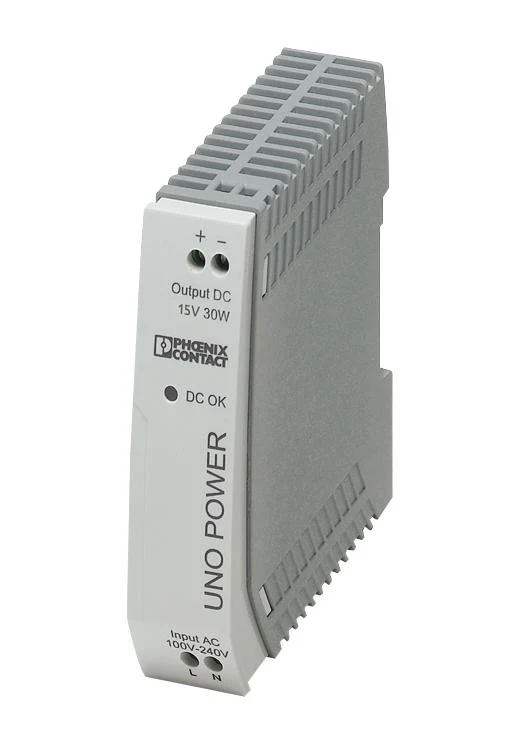

-70%PHOENIX CONTACT 2903000 AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 30 W, 15 VDC, 2 A GTIN UPC EAN: 4046356808590 UNO-PS/1AC/15DC/30W—
$72.72
$21.82The Story
UNO-PS/1AC/15DC/30W is a primary-switched UNO POWER power supply unit for DIN rail mounting and 1-phase input. This has high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency. It features maximum energy efficiency to over 90% efficiency and extremely low idling losses under 0.3W. Approved by CAN/CSA-C22.2 No. 60950-1-07, CSA-C22.2 No. 107.1-01, CAN/CSA-C22.2 No. 213 class I, division 2, groups A, B, C, D, T4 (hazardous location), UL/C-UL listed UL 508, UL/C-UL listed ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D T4 (hazardous location), UL/C-UL, UL 60950-1.
- Nominal input voltage range from 100VAC to 240VAC, nominal output voltage is 15VDC ±1 %
- Output power is 30W, nominal output current is 2A (-25°C to 55°C)
- Typical efficiency is 85% (120VAC) , 86% (230VAC)
- Flexible mounting by simply snapping onto the DIN rail
- More space in the control cabinet with up to 20% higher power density
- Degree of protection is IP20
- Plastic housing material
- Screw input and output connection
- Operating ambient temperature -25°C to 70°C (> 55°C derating 2.5 %/K)
- Dimension is (W x H x D) 22.5 x 90 x 84mm
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 30W |
| Output Voltage - Output 1: 15VDC |
| Output Current - Output 1: 2A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Input Voltage VAC: 85V AC to 264V AC |
| Power Supply Output Type: Fixed |
| Product Range: UNO POWER Series |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2903000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
