PHOENIX CONTACT 1715802 Wire-To-Board Terminal Block, 5.08 mm, 10 Ways, 26 AWG, 14 AWG, 2.5 mm², Screw MKDS 1,5/10-5,08, GTIN UPC EAN: 4017918024239
PHOENIX CONTACT 1715802 Wire-To-Board Terminal Block, 5.08 mm, 10 Ways, 26 AWG, 14 AWG, 2.5 mm², Screw MKDS 1,5/10-5,08, GTIN UPC EAN: 4017918024239
$1.99
Original: $6.64
-70%PHOENIX CONTACT 1715802 Wire-To-Board Terminal Block, 5.08 mm, 10 Ways, 26 AWG, 14 AWG, 2.5 mm², Screw MKDS 1,5/10-5,08, GTIN UPC EAN: 4017918024239—
$6.64
$1.99The Story

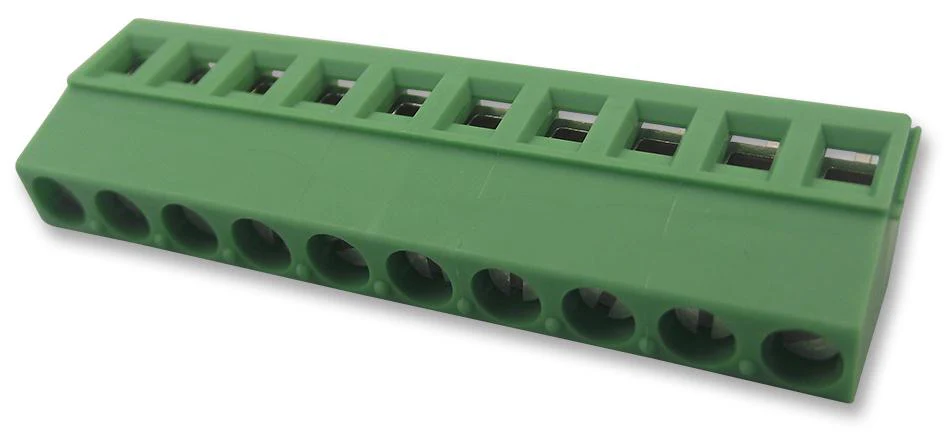

The 1715802 is a 10-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDS 1,5/10-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 14AWG wire range.
- Space-saving and safe
- 7mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 10Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 14AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 15A |
| Rated Voltage: 300V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1715802 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Description
The 1715802 is a 10-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDS 1,5/10-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 14AWG wire range.
- Space-saving and safe
- 7mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 10Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 14AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 15A |
| Rated Voltage: 300V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1715802 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
