PHOENIX CONTACT 1714968 Wire-To-Board Terminal Block, 6.35 mm, 3 Ways, 24 AWG, 10 AWG, 6 mm², Screw GTIN UPC EAN: 4017918024109 MKDS 5/ 3-6,35
PHOENIX CONTACT 1714968 Wire-To-Board Terminal Block, 6.35 mm, 3 Ways, 24 AWG, 10 AWG, 6 mm², Screw GTIN UPC EAN: 4017918024109 MKDS 5/ 3-6,35
$0.97
Original: $3.25
-70%PHOENIX CONTACT 1714968 Wire-To-Board Terminal Block, 6.35 mm, 3 Ways, 24 AWG, 10 AWG, 6 mm², Screw GTIN UPC EAN: 4017918024109 MKDS 5/ 3-6,35—
$3.25
$0.97The Story

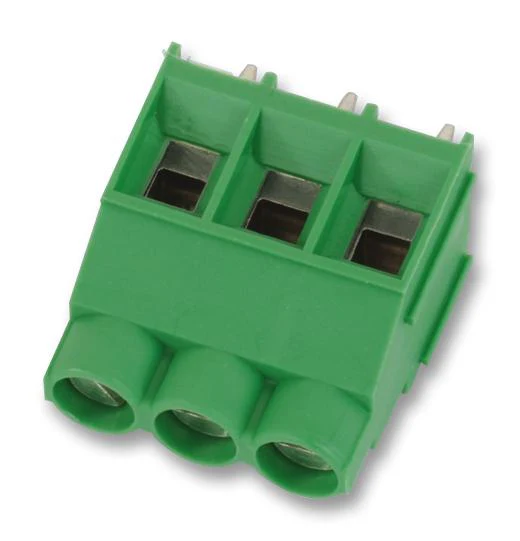

The 1714968 is a 3-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDS 5/ 3-6,35 terminal block has fully developed contact geometries and surfaces. It accepts 24 to 10AWG wire range.
- Space-saving and safe
- 8mm Stripping length
- A4 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 6.35mm |
| No. of Positions: 3Ways |
| Wire Size AWG Min: 24AWG |
| Wire Size AWG Max: 10AWG |
| Conductor Area CSA: 6mm² |
| Wire Connection Method: Screw |
| Rated Current: 32A |
| Rated Voltage: 630V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1714968 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
