Orbbec Gemini 2 L 3D Camera
HomeStore

Orbbec Gemini 2 L 3D Camera

Orbbec Gemini 2 L 3D Camera

$169.93

Original: $566.44

-70%
Orbbec Gemini 2 L 3D Camera—

$566.44

$169.93

The Story

Orbbec Gemini 2 L Overview

The Gemini 2 L 3D Camera from Orbbec is based on Active Stereo IR technology with a baseline of 100mm and is equipped with Orbbec's custom ASIC processor for high quality depth processing. It delivers resolutions of up to 1280 x 800 at 5, 10, 15, 30, and 60 fps. It has a wide 101° diagonal field of view and operates using a single USB-C 3.2 Gen 1 cable that delivers power and data. The camera also has a proximity sensor for close distance single point ranging, which helps eliminate any blind spots in depth measurements within the entire 32.8' range, while an internal IMU enables motion and position tracking.

The Gemini 2 L is easy to set up and operate with the Orbbec SDK and delivers accurate and reliable data in various lighting conditions from pitch black to semi-outdoor. Also featured are rolling and global shutters, plus wavelength sensitivity up to 850nm and IP5X protection.

Features
  • Global shutter for RGB and IR cameras
  • Wide field of view at 91° horizontal and 66° vertical
  • High quality depth data output from 0.82 to 32.8'
  • Up to 60 fps at 640 x 400 and 30 fps at 1280 x 800 depth resolutions
  • USB-C for power and data connectivity
  • Internal MIU
  • Multi-camera synchronization and IMU supported
UPC: 850063467025

Items Included

  • Orbbec Gemini 2 L 3D Camera
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Orbbec Gemini 2 L Specs

    General
    Wavelength
    850 nm
    Processing
    Internal Processing Using Orbbec MX6600 ASIC
    Technology
    Active Stereo IR
    Shutter Type
  • IR: Global Shutter
  • Color: Rolling Shutter
    •
    Anti-Flicker
    50 and 60 Hz
    Baseline
    100mm
    Data Connection
    USB-C 3.2 Gen 1 for Data and Power
    IMU
  • 6 DoF
  • Frequency Range: 50 to 2000 Hz
  • Data Format: Float
    •
    Mirror Mode
    Supported, Non-Mirror by Default
    Operating Modes
    Unbinned Dense Default
  • High Accuracy, High Quality Depth Data

    Unbinned Sparse Default
  • Balanced Depth Accuracy and Power Consumption

    Binned Sparse Default
  • Low Power Mode, Supports 60 fps, Small Blind Zone
    •
    RGB
  • 1280 x 800, 1280 x 720, 800 x 600, 640 x 400, and 640 x 360 at 5, 10, 15, 30, and 60 fps
  • FoV: 94 x 68° (4:3)
  • Format: YUYV/MJPEG
    •
    Supported Functions
    D2C, Multi-Camera Sync
    Binned Sparse Default
  • 640 x 400 and 320 x 200 at 5, 10, 15, 30, and 60 fps
  • FoV: 91 x 66°
  • Range: 0.82 to 16.4' / 0.25 to 5.0 m
  • Optimal Range: 0.65 to 16.4' / 0.15 to 2.5 m
  • Format: Y16/Y14/RLE
    •
    Unbinned Dense Default
  • 1280 x 800, 640 x 400, 320 x 200 at 5, 10, 15, and 30 fps
  • FoV: 91 x 66°
  • Range: 0.82 to 32.8' / 0.25 to 10 m
  • Optimal Range: 0.98 to 22.9' / 0.3 to 7.0 m
  • Format: Y16/Y14/RLE
    •
    Unbinned Sparse Default
  • 1280 x 800, 640 x 400, 320 x 200 at 5, 10, 15, and 30 fps
  • FoV: 91 x 66°
  • Range: 0.82 to 32.8' / 0.25 to 10 m
  • Optimal Range: 0.98 to 22.9' / 0.3 to 7.0 m
  • Format: Y16/Y14/RLE
    •
    Dimensioning
  • 1280 x 800, 640 x 400, 320 x 200 at 5, 10, 15, and 30 fps
  • FoV: 91 x 66°
  • Range: 0.98 to 13.1' / 0.3 to 4 m
  • Format: Y16/Y14/RLE
    •
    Inputs/Outputs
    USB I/O
    1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input/Output
    Sync
    8-Pin Multi-Camera Synchronization Interface
    Wireless
    Mobile App Compatible
    No
    Power
    Power Source
    USB
    Power Consumption
    10 W (Maximum)
    3 W (Typical)
    Physical
    Mounting
    2x M3
    1x 1/4"-20 UNC
    Color
    Black
    Environmental Resistance
    Dust-Resistant (IP5X)
    Certifications
    RoHS, FCC, CE, REACH, KC
    Cable Length
    Not Specified by Manufacturer
    Dimensions
    4.9 x 1.1 x 1" / 124 x 29 x 26 mm
    Weight
    5.1 oz / 144 g
    Packaging Info
    Package Weight
    1.06 lb
    Box Dimensions (LxWxH)
    8.4 x 4.6 x 3.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

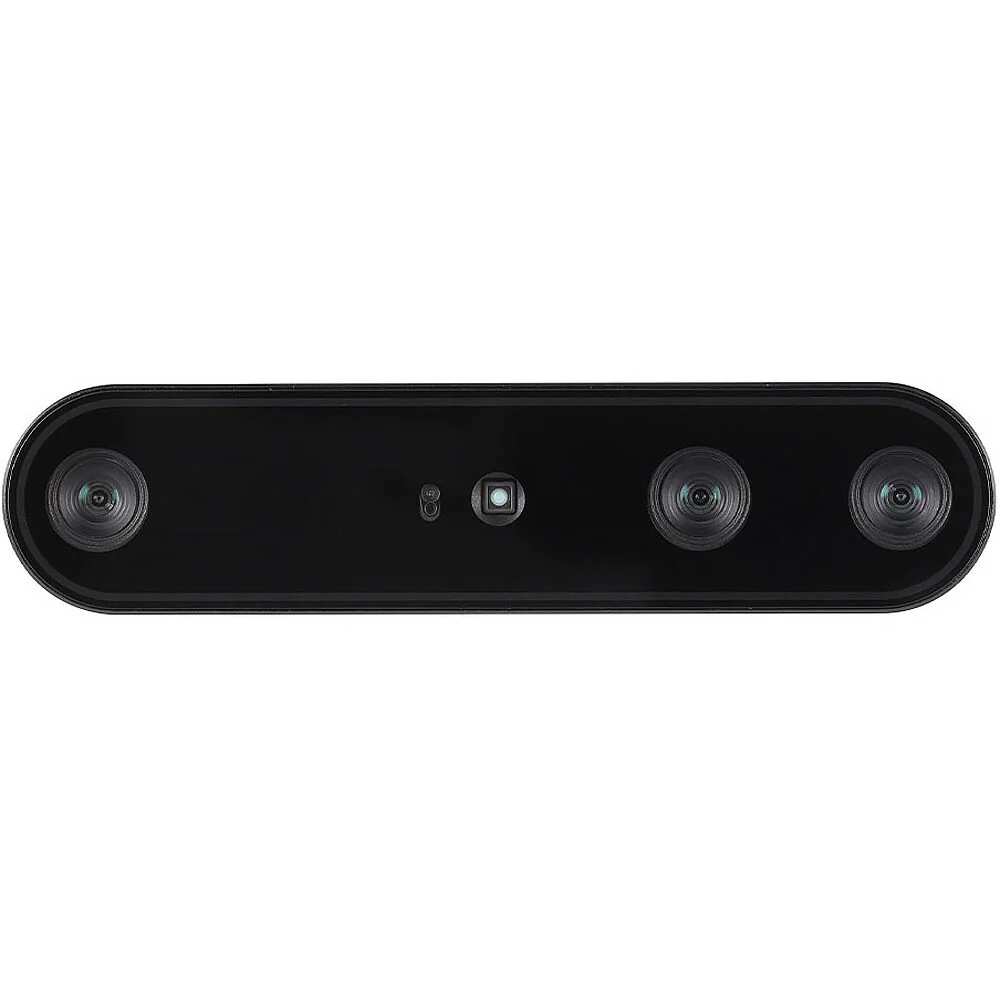

    Orbbec Gemini 2 L 3D Camera - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

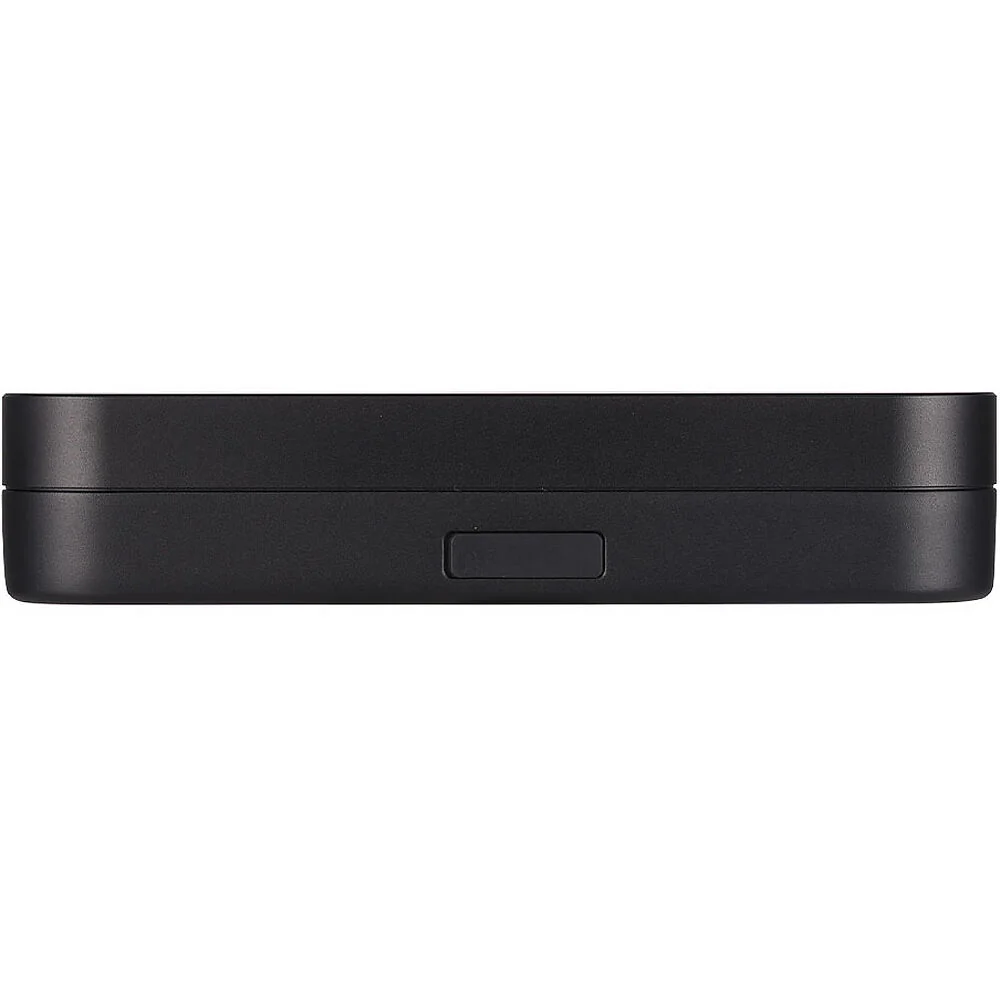

    Orbbec Gemini 2 L 3D Camera - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

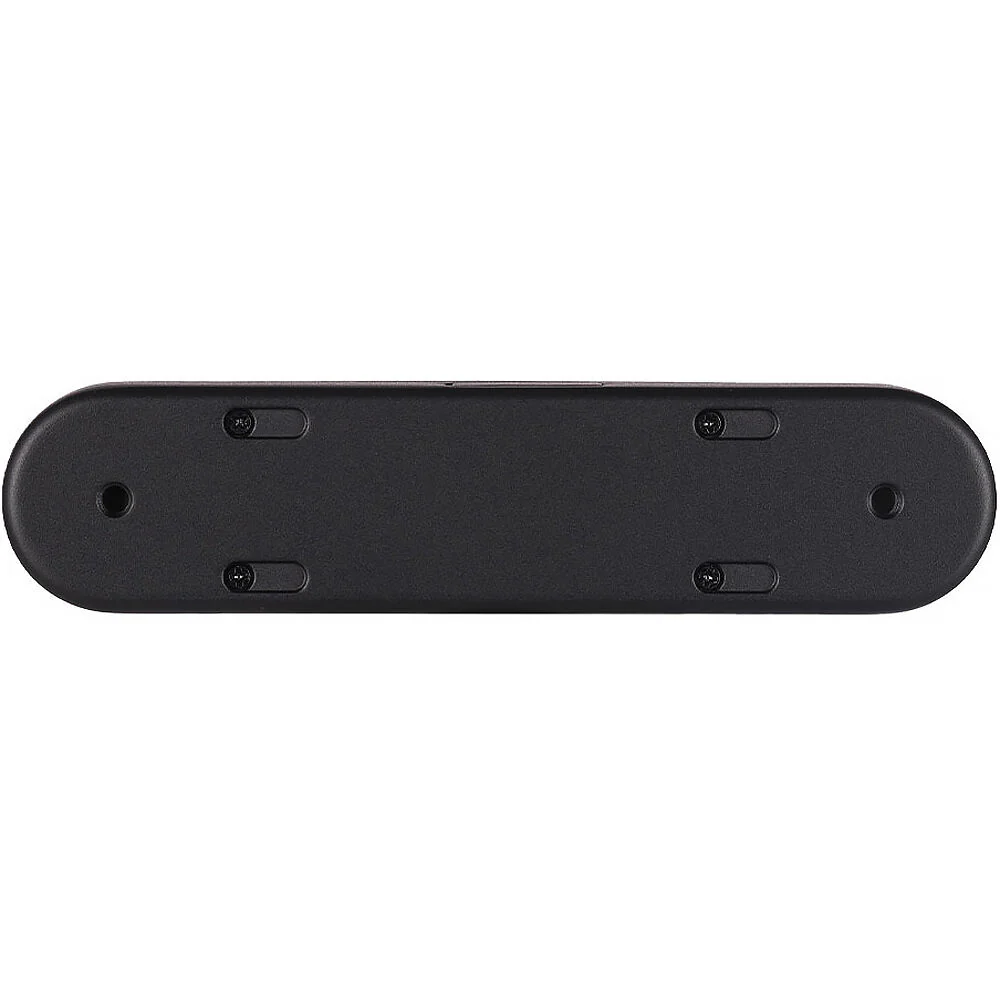

    Orbbec Gemini 2 L 3D Camera - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

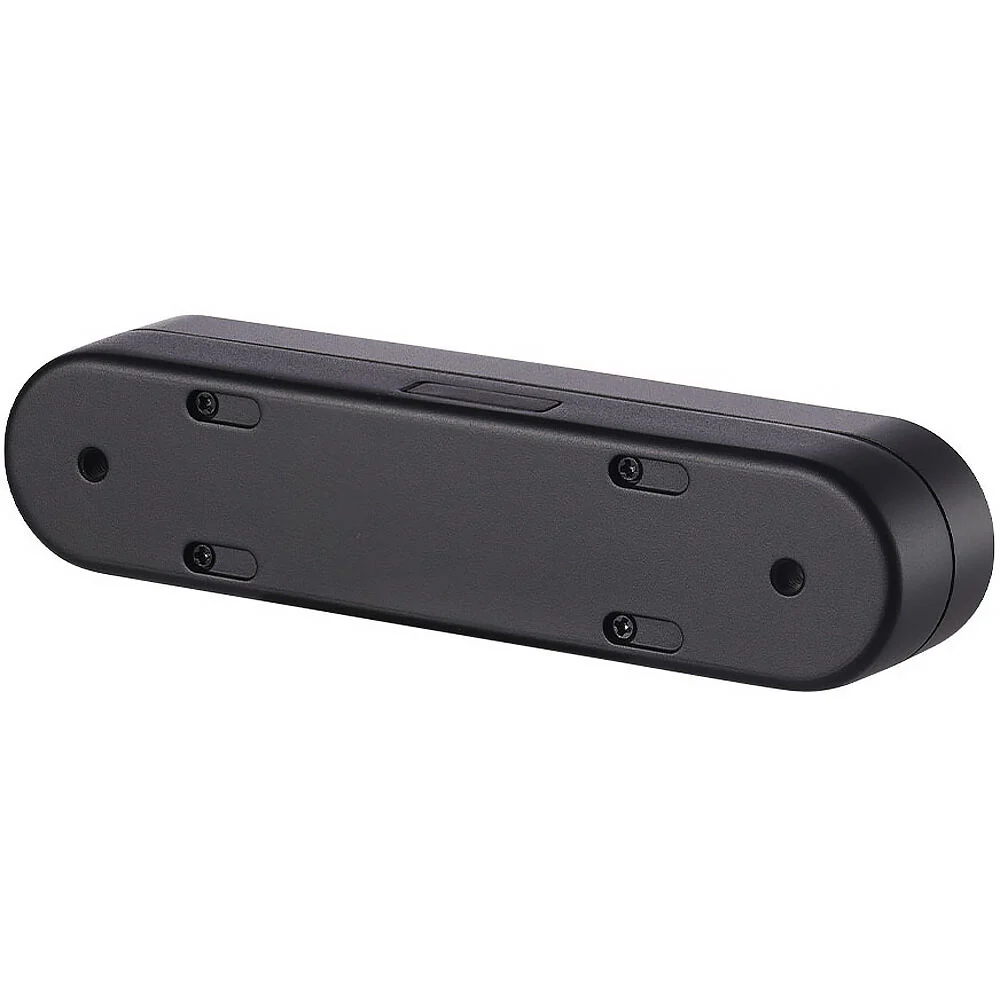

    Orbbec Gemini 2 L 3D Camera - Image 5
