-70%OMRON ELECTRONIC COMPONENTS SS-01GL Microswitch, SS Series, SPDT, Solder, 100 mA, 250 VAC, 250 VDC—
$3.25
$0.97The Story

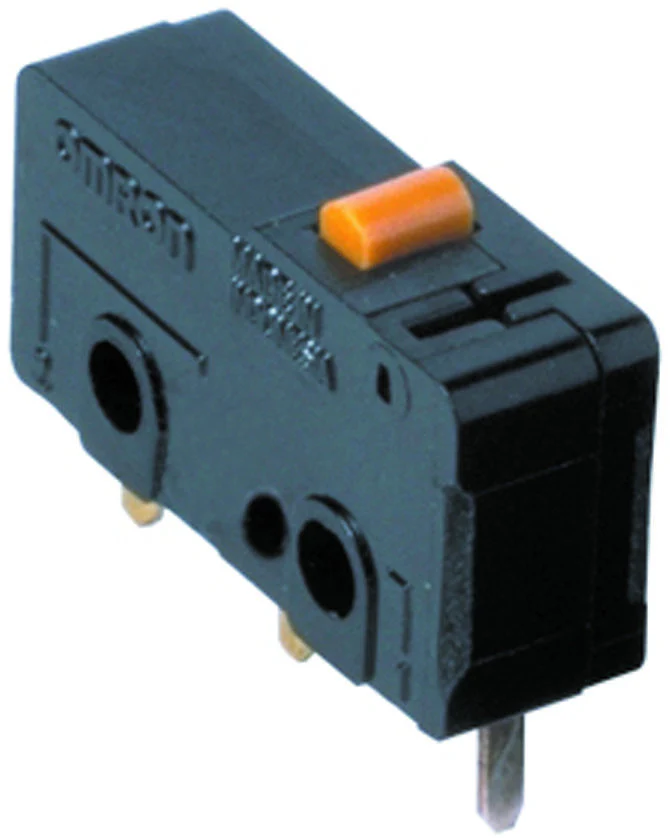

The SS-01GL is a single-pole double-throw (SPDT) subminiature Basic Switch with solder terminals and a hinge lever actuator. The subminiature basic switch offers high reliability and security.
- Gold alloy contacts
- 100MR at 500VDC Minimum insulation resistance
- 50mR Maximum contact resistance
- Standard (85°C) heat resistance
- IP40 Protection rating
Applications
Industrial
Product details
| Microswitch Actuator | Lever |
| Contact Voltage DC Nom | 250VDC |
| Operating Force Max | 0.49N |
| Contact Voltage AC Nom | 250VAC |
| Microswitch Type | Snap Action |
| Switch Terminals | Solder |
| Contact Configuration | SPDT |
| Product Range | SS Series |
| Contact Current Max | 100mA |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | SS-01GL |
| Quantity | Each |
| Technical Data Sheet EN |  |
