Ocean Matrix OMX-13 Overview
- 1Description
- 2HDMI Multiviewer
- 3HDCP Compliance
- 41080p Video
- 5Multiple Viewing Options
- 6Transmission Range
- 7IR Remote Control
Minimize your location monitor needs with the HDMI 4 x 1 1080p Multiviewer from Ocean Matrix. This multiviewer enables you to view or switch between four HDMI sources and supports up to 1080p30 video. It offers a total of 12 viewing options including quad-view and picture-in-picture modes. Use the front-panel buttons or the included IR remote to control your views.
This steel-housed component features PCM 2.0 audio, power and input LED displays, and an output transmission range up to 49'.
HDMI Multiviewer
HDCP Compliance
1080p Video
Multiple Viewing Options
Transmission Range
IR Remote Control

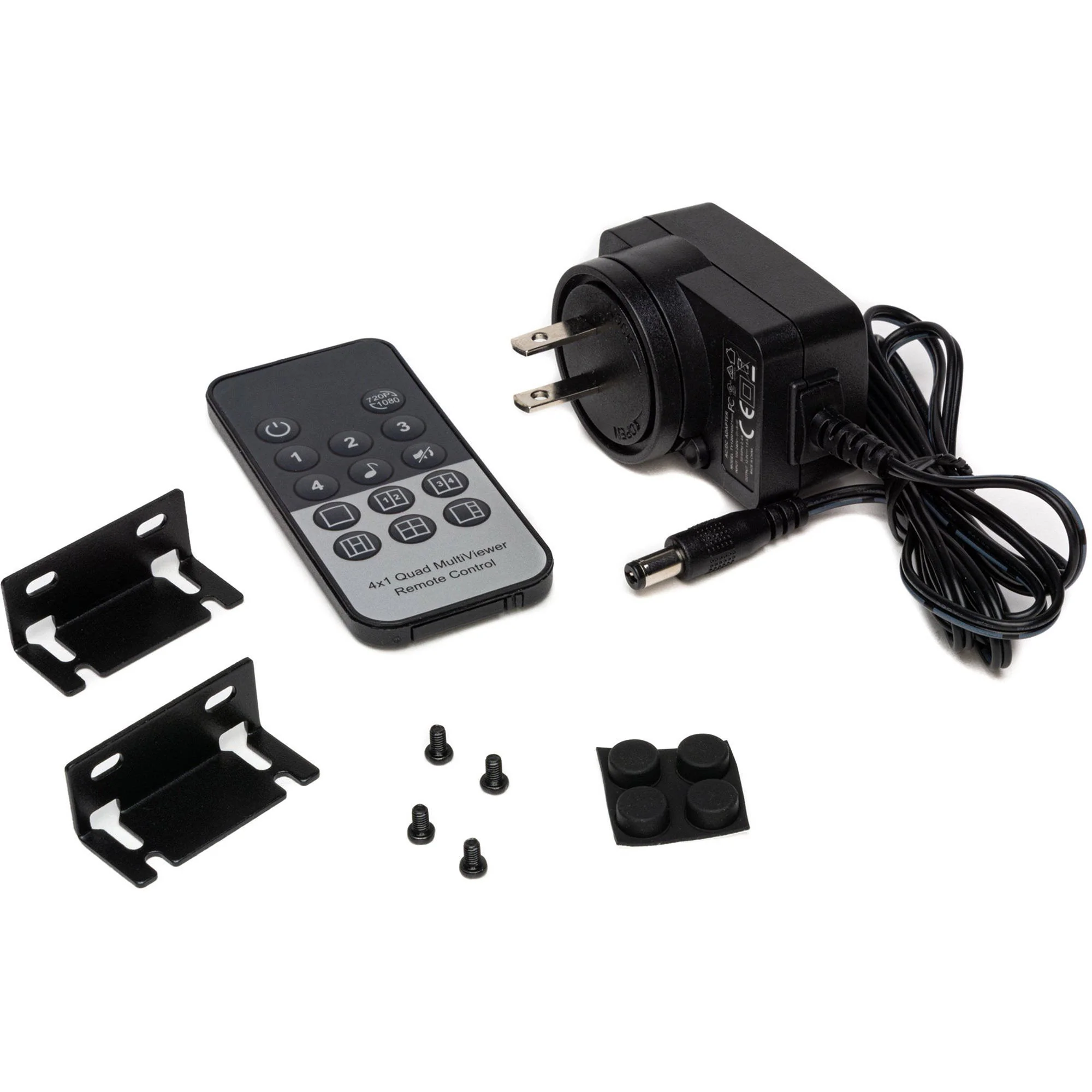

In the Box
- Ocean Matrix HDMI 4 x 1 1080p Multiviewer with PIP & IR Control
- 12 VDC, 1A Power Supply
- IR Remote Control
- 2 x Mounting Bracket
- 4 x Screw
- 4 x Rubber Feet
- Limited 1-Year Warranty
- Description
- HDMI Multiviewer
- HDCP Compliance
- 1080p Video
- Multiple Viewing Options
- Transmission Range
- IR Remote Control
Ocean Matrix OMX-13 Specs
| Input Connectors | 4 x HDMI |
| Embedded Audio Input | HDMI |
| Output Connectors | 1 x HDMI |
| HDR Compatibility | Yes |
| HDCP Support | Version 1.4 |
| EDID Support | Yes |
| Audio Decoding | DTS Digital Surround, Dolby Digital, PCM |
| Max Transmission Distance | 1080p at 60 Hz: 49.2' / 15Â m |
| Video Format | HDMI 1080p: 24/25/29.97/30/59.94/60 fps 1080i: 59.94/60 fps 720p: 59.94/60 fps 480p: 59.94/60 fps NTSC: 59.94/60 fps 576p: 50 fps PAL: 50 fps |
| PC Resolutions | HDMI: 1280 x 1084 at 60 Hz HDMI: 1920 x 1200 at 60 Hz HDMI: 1360 x 768 at 60 Hz HDMI: 1280 x 720 at 60 Hz HDMI: 1920 x 1080 at 60 Hz HDMI: 1680 x 1050 at 60 Hz HDMI: 1280 x 1024 at 60 Hz HDMI: 1280 x 768 at 60 Hz HDMI: 1024 x 768 at 60 Hz HDMI: 800 x 600 at 60 Hz HDMI: 640 x 480 at 60 Hz |
| Maximum Data Rate | 4.95 Gb/s |
| Power Connector | 1 x Barrel Input |
| Power Consumption | Power Supply: 12 VDC (7 W) |
| Certifications | CE, FCC, as per Manufacturer |
| Maximum Multiple Display Configuration | 2 x 2 |
| LED Indicators | Yes |
| Material of Construction | Steel |
| Dimensions | 7.5 x 4.5 x 0.6" / 190.5 x 114.3 x 15.2Â mm |
| Weight | 1.14Â lb / 517Â g |
| Package Weight | 1.685 lb |
| Box Dimensions (LxWxH) | 10 x 8 x 2.4" |
