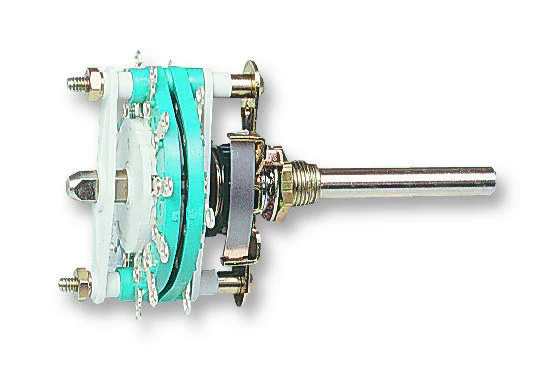

NSF (CONTROLS) MSD1206N MU454493MSD1 Rotary Switch, MSD Series, Non Illuminated, 30 °, 6 A, 10 A, 250 V—
$229.38
The Story
The MSD1206N MU454493MSD1 is a double-pole 1-wafer 6-position non-shorting Rotary Switch with glass filled nylon rotor. This MSD series rotary switch features adjustable stop setting, heavy-duty and high current ratings.
- <5mR Contact resistance
Applications
Industrial
Product details
| Contact Current DC Max | 10A |
| Illumination | Non Illuminated |
| Contact Voltage DC Max | 30V |
| Contact Current AC Max | 6A |
| Angle of Throw | 30° |
| Product Range | MSD Series |
| No. of Switch Positions | 6 Position |
| Contact Voltage AC Max | 250V |
| No. of Poles | 2 Pole |
Other details
| Brand | NSF (CONTROLS) |
| Part Number | MSD1206N MU454493MSD1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
