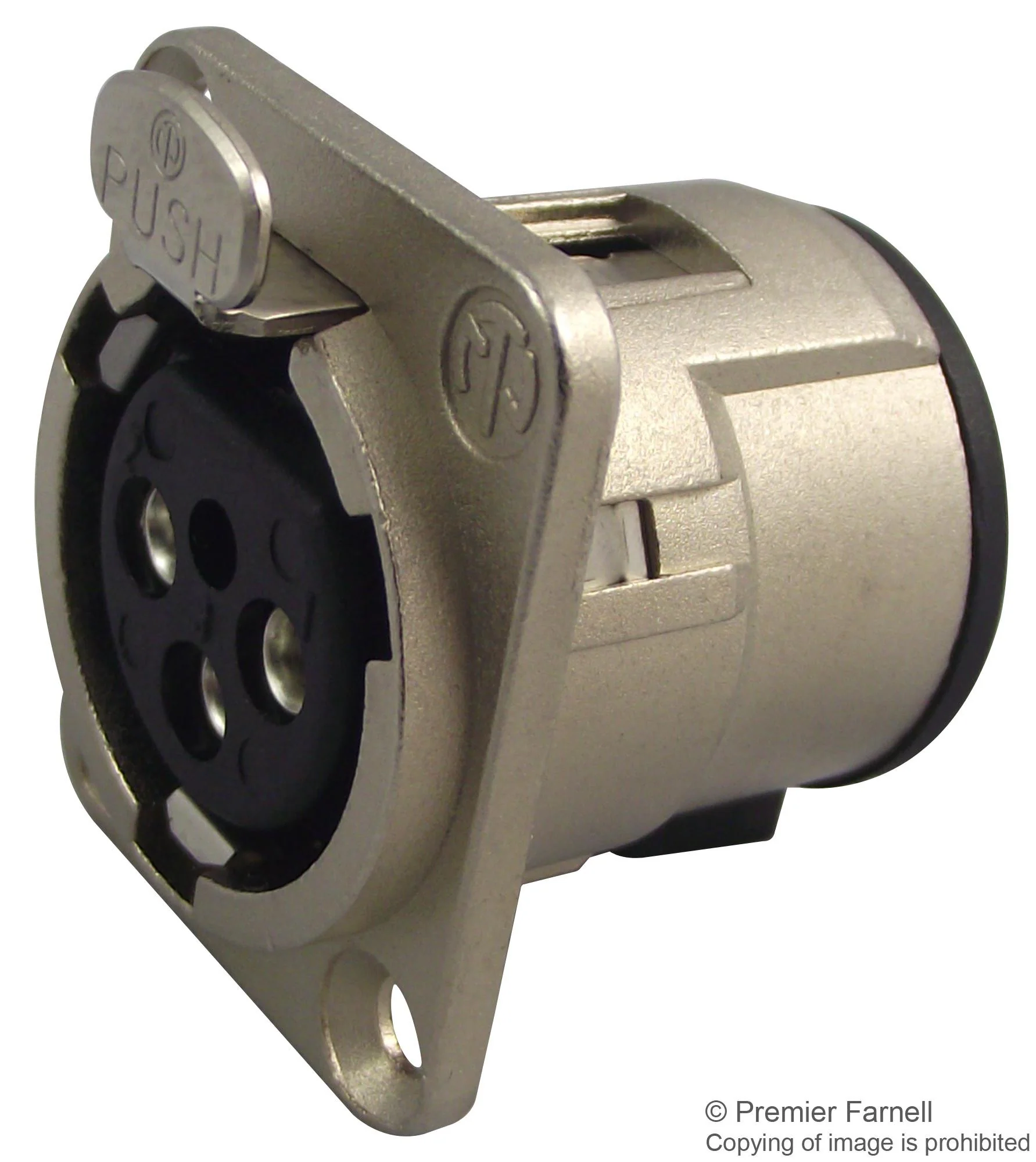

NEUTRIK NC3FDV XLR Audio Connector, 3 Contacts, Socket, PCB Mount, Gold Plated Contacts, Metal Body, D Series—
$12.06
The Story
The NC3FDV is a 3-pole Female Receptacle with silver over nickel plated bronze contacts, nickel housing. it has polyamide insert, latch locking device, nickel-plated zinc die-cast shell and steel Ck67 locking element. This D series vertical PCB mount receptacle has removable insert from shell for ease assembling and testing of PCB before assembling into housing.
- D-shaped metal shell
- Optimal RF protection using 3 shield contacts
- UL94HB Flammability rating
- IP40 Protection rating
- Complies with IEC 61076-2-103 standard
- Solderability complies with IEC 68-2-20 standard
- <=5mR Contact resistance
- >10GR Insulation resistance
- 6A Current rating per contact
- <50V Voltage rating
- -30 to +80�C Temperature range
Applications
Audio
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Socket |
| Product Range | D Series |
| Connector Body Material | Metal Body |
| Connector Mounting | PCB Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC3FDV |
| Quantity | Each |
| Technical Data Sheet EN |  |
