Original: $1,607.01
-70%$1,607.01
$482.10The Story
- Supports Bandwidth up to 900 MHz
- Supports CATV/Internet/Digital Cable
- Bi-directional Transmission via Cat5
- Built-in RF Amplifier
- Low Insertion Loss
- Built-in Gain Amplification
- Port Buffering
- Compact Design / Desktop Mount
- Hassle-free Cabling Solution

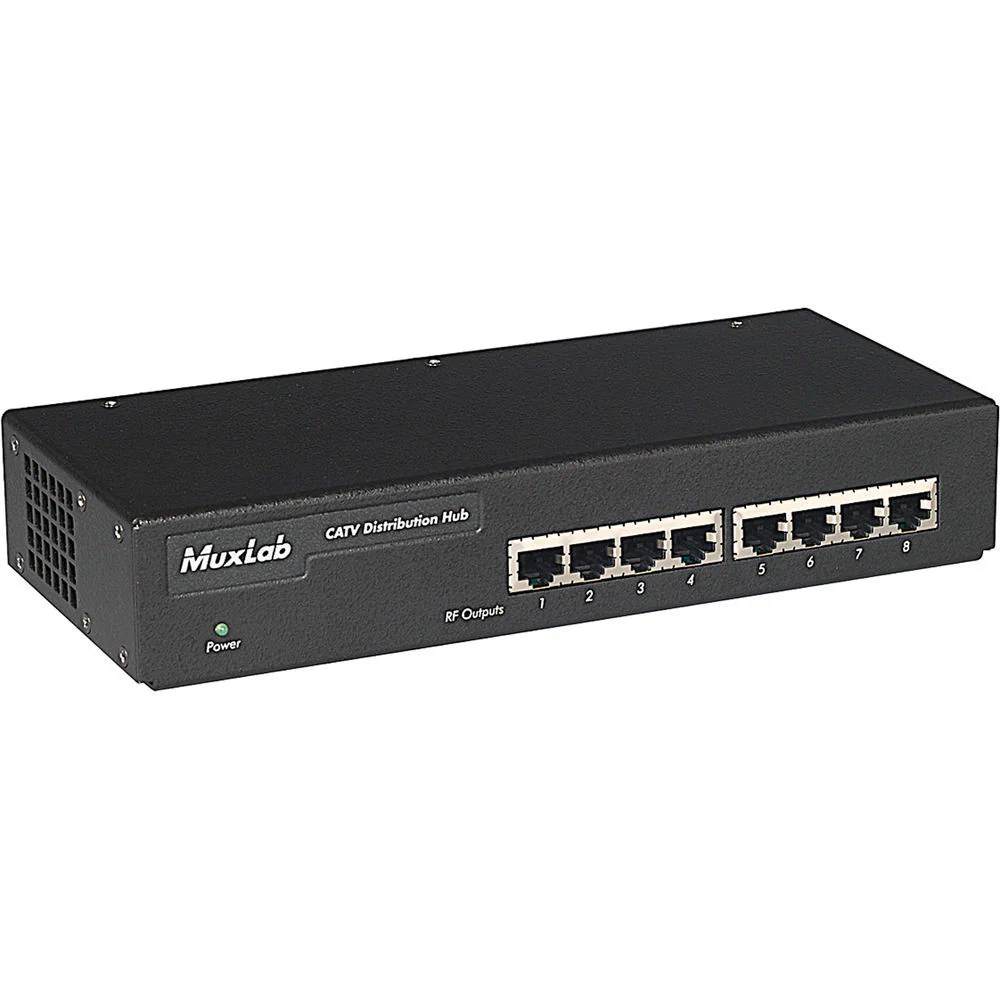

The MuxLab 500300 CATV Distribution Hub (8 Ports) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables. Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the 8-port hub is ideal for use in apartments, condominiums, hotels, offices, schools, hospitals, and trading floors.
The hub features built-in gain amplification and port buffering and its RF amplifier enhances low power signals to ensure low insertion loss. Working in conjunction with MuxLab's passive CATV baluns (500006 and 500302) and other standard RF video equipment, the hub provides a complete cabling solution. Besides Cat5 being a cheaper alternative to coaxial cabling, the use of the hub also makes changes and additions easier.

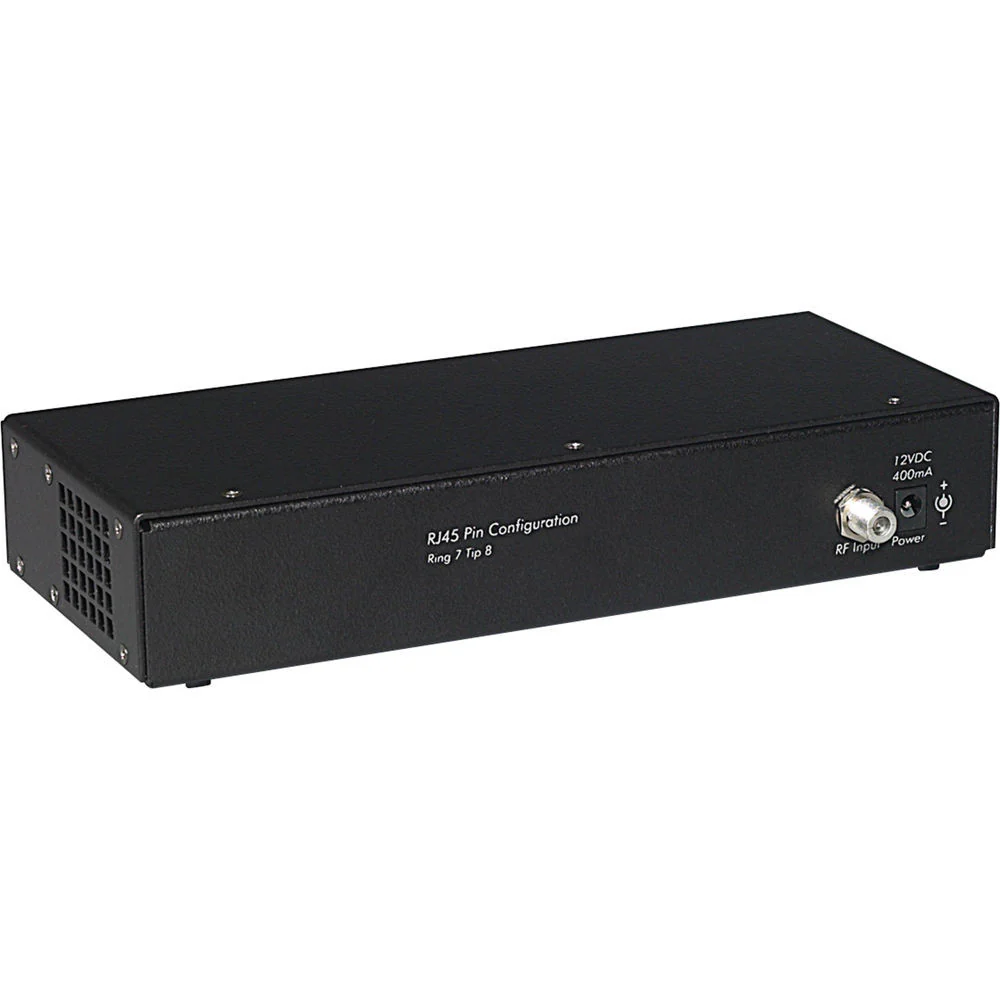

The desktop mountable hub has a black anodized aluminum enclosure and includes a base unit, an external power supply, and a LED indicator.
- 8 ports allow distribution of terrestrial broadband RF video to several RF receivers via Cat5 UTP
- Supports broadband (bandwidth up to 900 MHz) CATV, VHF, FM, broadband internet, and digital cable
- Features built-in RF amplifier, gain amplification and port buffering
- Low insertion loss
- Works in conjunction with MuxLab's passive CATV baluns and other RF video equipment for a complete cabling solution / hassle-free wiring
- Allows use of Cat5 cables as an alternate to coaxial cables, making changes and additions easier
- Used in apartment, residential, condominiums, hotels, offices, schools, hospitals and trading floors
- Anodized aluminum enclosure
- Desktop mountable, compact design - 9.3 x 3.9 x 1.6" (23.5 x 9.9 x 4 cm)
- Includes a base unit, external power supply (12VDC), rubber stand-offs for desktop installation and a LED power indicator
- Operates in 0 - 40° C
- Compatible with other MuxLab baluns (500006 and 500302)
- Meets FCC, CE, and RoHS regulatory standards
| Application | Environment: Broadband CATV, VHF, FM, broadband Internet, digital cable Devices: Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems |
| Transmission | Transparent to the user |
| Bandwidth | 3dB Bandwidth: 5MHz to 900 MHz |
| Channels | CATV 2-142, VHF channels 2-13, FM broadcast band. 5-42Hz return path for Internet |
| Gain | Signal Gain - Forward path (S21): 55-450 MHz: Tilt of .6 dB to 15.3 dB / 450-900 MHz: 14.1 dB < S21 < 15.9 dB Signal Gain - Reverse path (S12): 5-42 MHz: -1.7 dB < S12 < 4.3 dB |
| Return Loss | >7 dB from 5 to 42 MHz > 10 dB from 55 to 900 MHz |
| Common Mode Rejection | > 30 dB from 5 to 900 MHz |
| Mounting | Desktop |
| Maximum Distance | Cat 5 UTP: Maximum Distance - Cat 5 UTP Dependant on channel frequency, input power and receiver sensitivity. |
| LED Indicators | Power: One (1) green LED |
| Cable Requirements | UTP Cable 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz "F" Cable Impedance: 75 ohms at 1 MHz (RG6) |
| Connectors | RF Input: "F" connector RF Outputs: Eight (8) |
| RJ45 Ethernet Port | RJ45 Pins 7 & 8 |
| Compatible Devices | Compatible MuxLab Baluns: 500006 (550 MHz), 500302 (900 MHz) |
| Temperature | Operating: 32 - 104°F (0 - 40°C) Storage: 14 - 158°F (-10 - 70°C) Humidity: up to 95% non-condensing |
| Power Requirements | 12VDC @ 400 mA |
| Power Supply | Desktop 110-240V switching power supply Input: 100-240V, ~0.5A Max, 50-60Hz Output: +12V, 1.25A. Output Power: 15W Max. Detachable AC power cord |
| Enclosure | Black anodized aluminium |
| Dimensions | 9.3 x 3.9 x 1.6" (23.5 x 9.9 x 4cm) |
| Weight | 28.1 oz (817g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.55 lb |
| Box Dimensions (LxWxH) | 12.5 x 9.5 x 3.6" |
- Power Adapter
- 2-Year Warranty
