MuxLab 500000 Overview

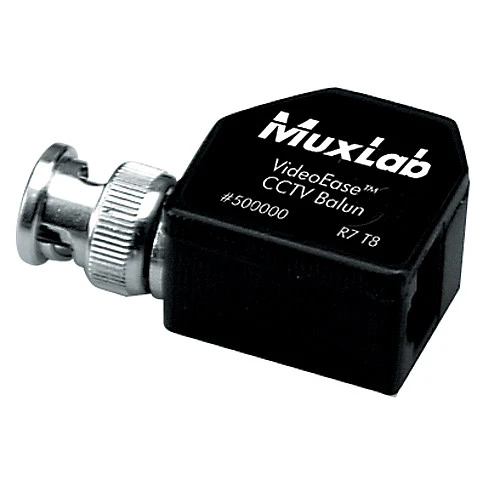

The Muxlab 500000 CCTV Modular BNC Balun is a video extender that allows a single CCTV video signal to be transmitted via a Cat3/5E/6 cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects to CCTV security / surveillance equipment that includes cameras, IP camera encoders, video switchers, sequencers, multiplexers, DVRs, and camera servers. The balun can also be used with other composite baseband video equipment such as DVD players, cable boxes, media servers and audio-video monitors.
The modular balun is used in pairs to transmit standard composite video and supports transmission of color signals up to 1200' via Cat3; it can be extended to 2200' via Cat5/5E or a higher version. For black and white signals, the maximum transmission distance is up to 1500' via Cat3 (can extended up to 2500' via Cat5/6). The BNC balun uses RJ-45 reverse polarity sensitive connectors with a configuration of Pin 7 (Ring) and Pin 8 (Tip).
Made of ABS fire retardant plastic, the compact modular balun measures 1.75 x .75 x 1.00" (4.44 x 1.9 x 2.54 cm), and features low return loss that ensures maximum power transfer with no line faults between the input and output. Besides using Cat3/5/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes / additions to modular outlet connections faster and easier.
Items Included
- MuxLab 500000 CCTV Modular BNC Balun R7T8
- Limited Lifetime Manufacturer Warranty
Additional Resources
No additional resources available
MuxLab 500000 Specs
| Environment |
Close-Circuit TV (CCTV) equipment for security and surveillance
|
| Devices |
CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment
|
| Transmission |
Transparent to the user
|
| Bandwidth |
Video: DC - 8 MHz
|
| Maximum Input |
1.1Vp-p
|
| Insertion Loss |
Less than 2 dB per pair over the frequency range from DC - 8 MHz
|
| Return Loss |
Greater than 15 dB over the frequency range from DC - 8 MHz
|
| Common Mode Rejection |
Greater than 40 dB @ 8 MHz
|
| Maximum Distance |
Color: Cat 3 - 1200' (366 m), Cat 5 or higher - 2200' (671 m)
(Less distance may result with DVR equipment. Typical: 1,000' (305 m) - 1,500' (457 m) via Cat5) B/W: Cat 3 - 1500' (457 m), Cat 5/6 - 2500' (762 m) |
| Cable Requirements |
UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz
BNC: Impedance - 75 ohms at 1 MHz (RG59/U). |
| Connectors |
RJ45 Pins R7 T8
|
| Impedance |
Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) |
| Temperature |
Operating: 32 - 131?F (0 - 55?C)
Storage: -4 ~ +185?F (-20 ~ +85?C) Humidity: up to 95% |
| Enclosure |
ABS fire retardant plastic
|
| Dimensions |
1.75 x 0.75 x 1" (4.44 x 1.9 x 2.54cm)
|
| Weight |
1.5 oz (42.5g)
|
| Package Weight |
0.06 lb
|
| Box Dimensions (LxWxH) |
3.25 x 2.9 x 1.55"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
