$87.30The Story
The 4K60 HDMI 1x2 Splitter from Muxlab allows one HDMI 2.0 source to be distributed to up to two HDMI displays. The splitter supports a video resolution up to UHD 4K (3840 x 2160) at 60 Hz with HDR, Deep Color, and HD audio. The splitter is HDCP 1.4 and 2.2 compliant, and features LED diagnostics. Additionally, all connectors are on the rear panel for neat cabling.
- General
-
- Distributes one HDMI 2.0 source to two displays
- Supports up to 4K @ 60 Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports HDR and Deep Color
- Supports LPCM 7.1 channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- 16-position rotary switch for EDID management
- LED diagnostics
- Connectors on rear for neat cabling
- Applications
-
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
| Signal Type | HDMI 2.0a |
| Devices | Ultra HD Blu-ray, projectors, monitors, TV, PC, laptops |
| Transmission | Transparent to the user |
| Video Bandwidth | 18 GB/s |
| Frequency Range | 25 to 600 MHz |
| HDCP | Revision 1.4 & 2.2 compliant |
| LEDs | Power: Blue Input & Output Link: Green |
| Resolution | 3840 x 2160 @ 24/25/30/60 fps 1080p @ 24/50/60 fps 480i to 1080p @ 50/60 fps |
| Color Depth | 8, 10, & 12-bit |
| Audio | LPCM 7.1 channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X |
| Cable | HDMI cable of appropriate length for video resolution selected |
| Power Supply | 1 x 110 to 240/5 VDC, 2 A |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: Up to 90%, non-condensing |
| Enclosure | Metal enclosure |
| Dimensions | 4.3 x 2.4 x 1.0" (11.0 x 6.2 x 2.5 cm) |
| Weight | 0.8 lb (0.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 8.0 x 5.7 x 3.2" |

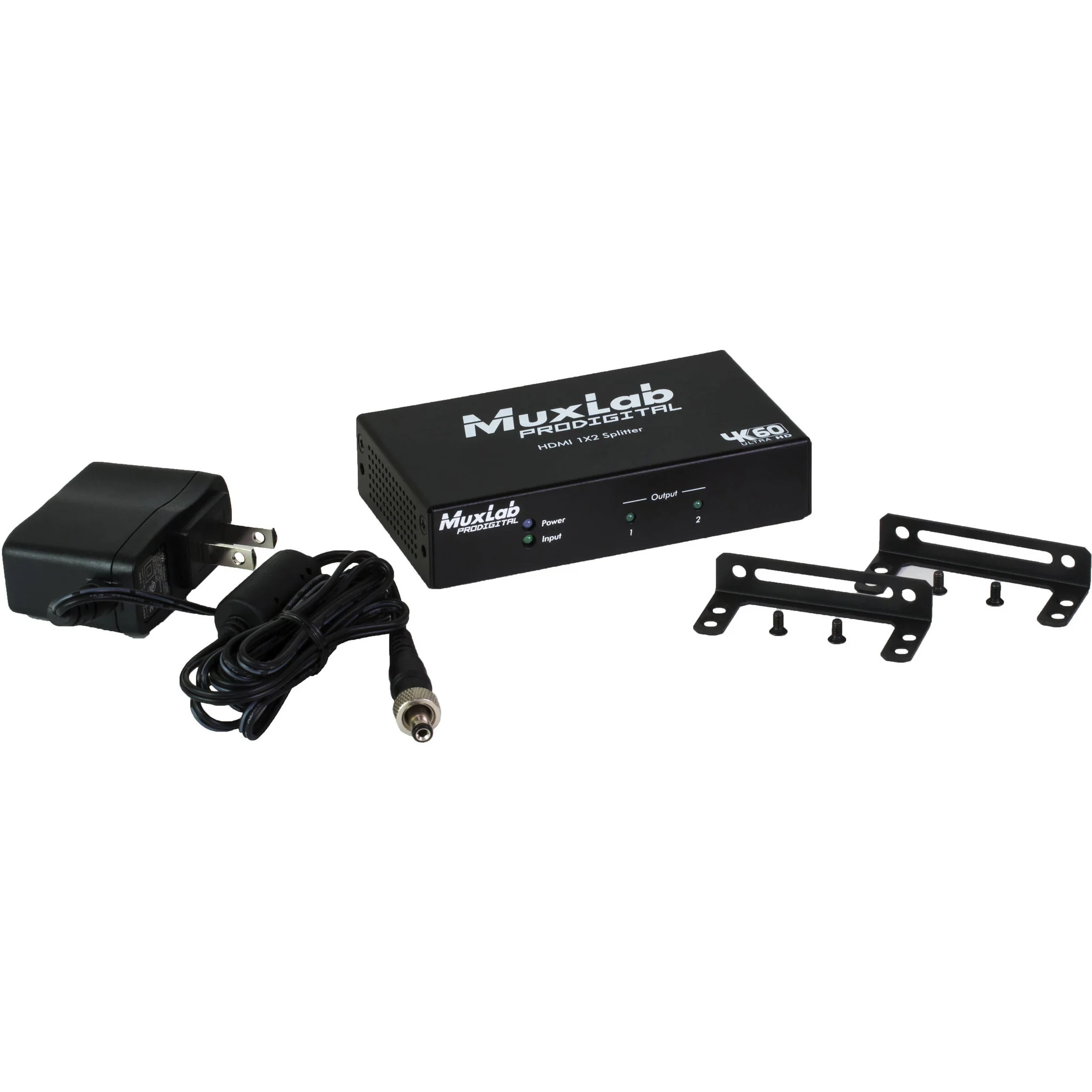

- Bracket
- Limited 2-Year Warranty
