$296.65The Story

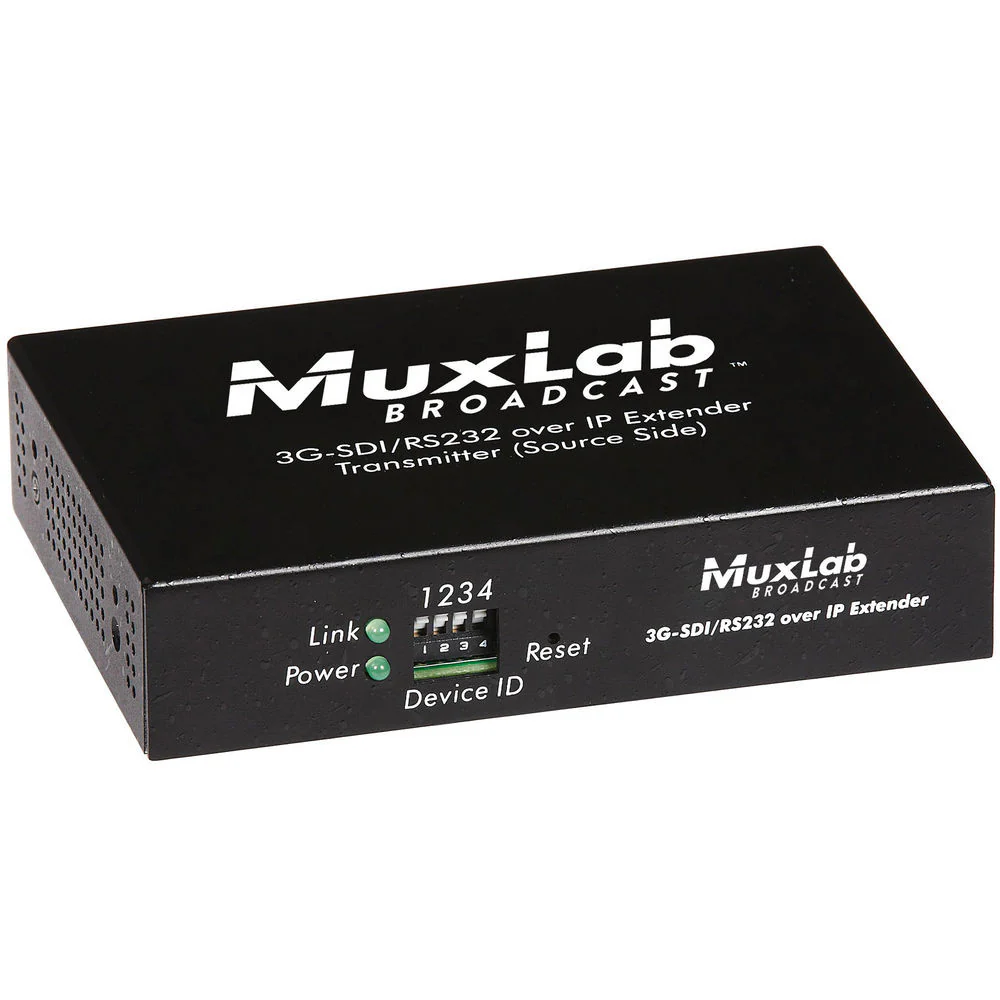

The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
- Key Features
-
- Supports up to 1080p resolutions
- Motion JPEG compression with very low latency
- Supports 100's of Transmitters and Receivers, depending on network bandwidth
- LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
- Supports RS232 and one way IR transmission for remote control of end devices
| General | |
|---|---|
| Device Type | Video/infrared/serial extender |
| Form Factor | External |
| Color | Black |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Max Resolution | 1080p |
| Max Transfer Distance | 394 ft |
| Status Indicators | Power, link OK |
| Expansion / Connectivity | |
|---|---|

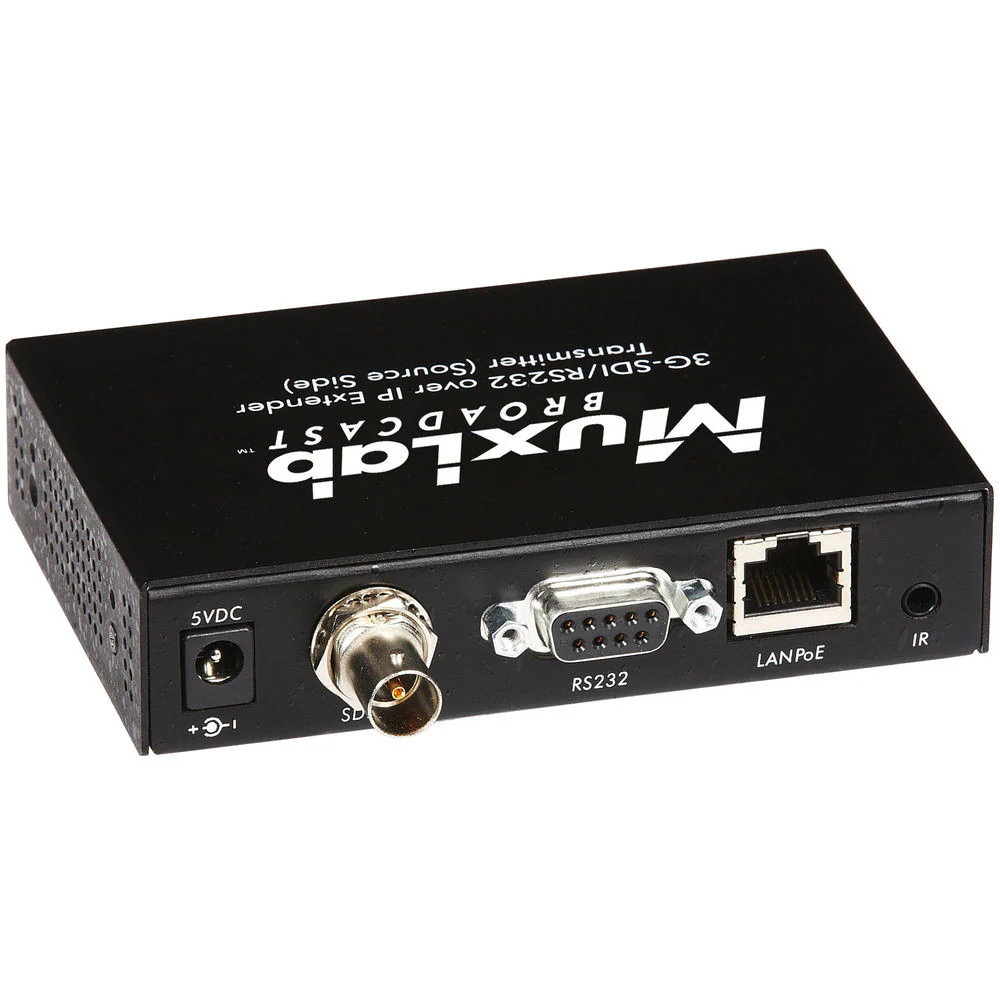

| Interfaces | 1 x 3G-SDI input - BNC 1 x serial - DB-9 1 x network (PoE) - RJ-45 1 x IrDA - mini jack |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Over Ethernet (PoE) | PoE |
| Power Consumption Operational | 2.9 Watt |
| Dimensions & Weight | |
|---|---|
| Width | 4.4 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 17.64 oz |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.9 x 2.3" |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
- Key Features
-
- Supports up to 1080p resolutions
- Motion JPEG compression with very low latency
- Supports 100's of Transmitters and Receivers, depending on network bandwidth
- LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
- Supports RS232 and one way IR transmission for remote control of end devices
| General | |
|---|---|
| Device Type | Video/infrared/serial extender |
| Form Factor | External |
| Color | Black |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Max Resolution | 1080p |
| Max Transfer Distance | 394 ft |
| Status Indicators | Power, link OK |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 3G-SDI input - BNC 1 x serial - DB-9 1 x network (PoE) - RJ-45 1 x IrDA - mini jack |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Power Over Ethernet (PoE) | PoE |
| Power Consumption Operational | 2.9 Watt |
| Dimensions & Weight | |
|---|---|
| Width | 4.4 in |
| Depth | 3 in |
| Height | 1 in |
| Weight | 17.64 oz |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.9 x 2.3" |
