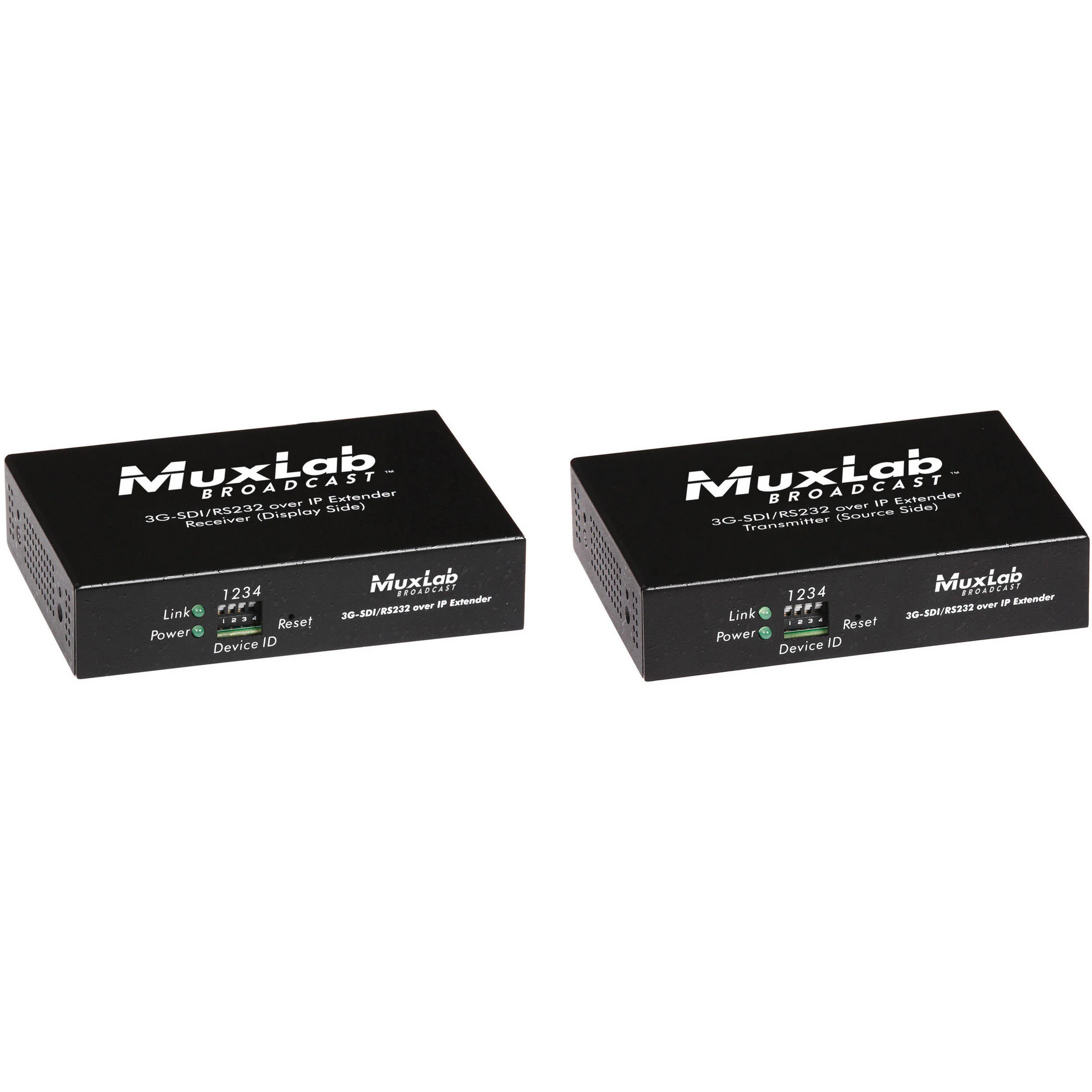

MuxLab 3G-SDI OVER IP EXTENDER Overview
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.

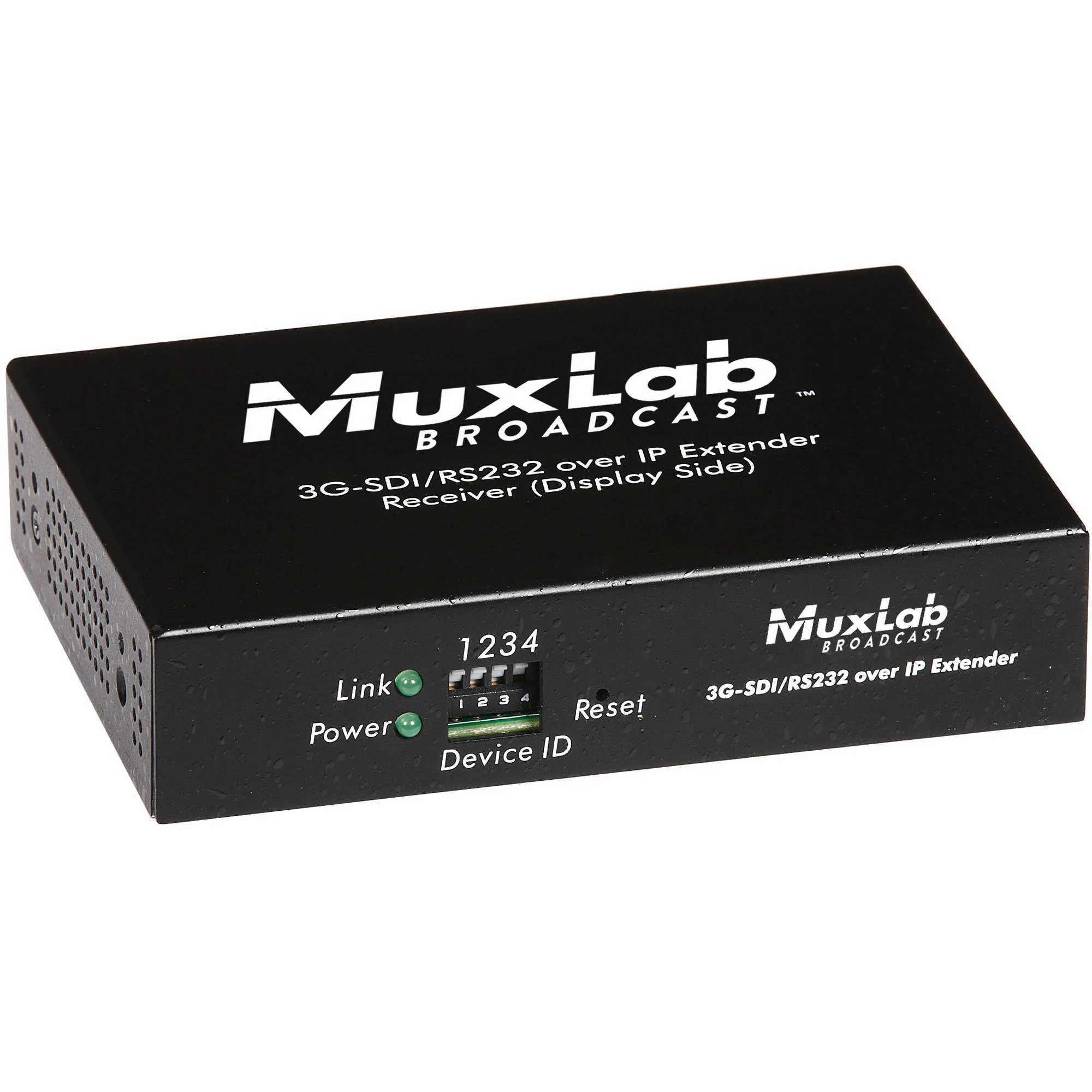

MuxLab 3G-SDI Over IP Receiver Unit with PoE
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
Key Features
- Supports up to 1080p resolutions
- Motion JPEG compression with very low latency
- Supports 100's of Transmitters and Receivers, depending on network bandwidth
- LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
- Supports RS232 and one way IR transmission for remote control of end devices
![]()
UPC: 627699807569

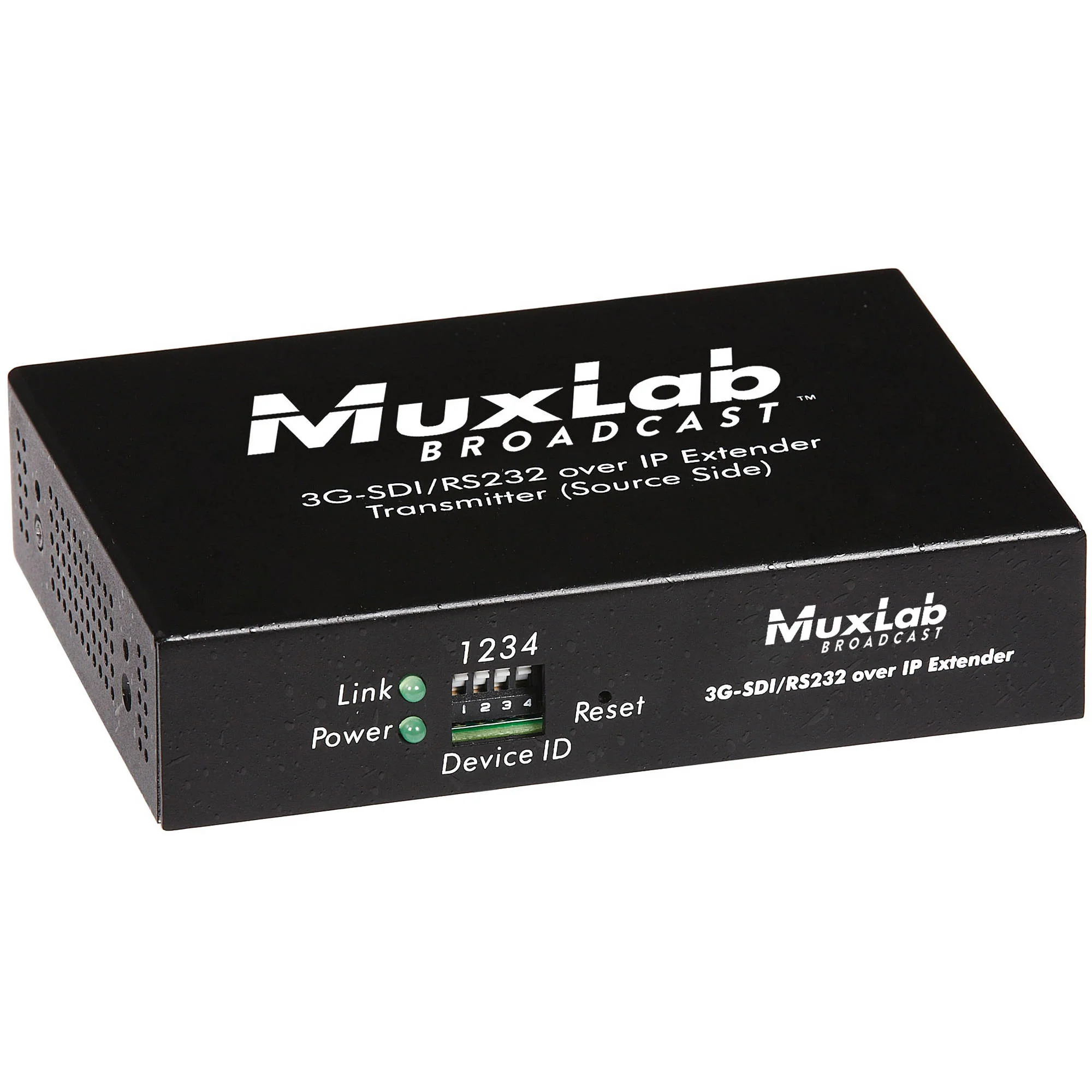

MuxLab 3G-SDI Over IP Transmitter Unit with PoE
The MuxLab 500756 - 3G-SDI /RS232 over IP Extender with PoE allows easy extension and distribution of broadcast quality SDI, HD-SDI or 3G-SDI video with embedded audio over local area networks (LAN).
This low-latency and versatile extender kit consists of individual transmitter and receiver units which can be configured in a variety of combinations. It is a cost effective alternative to a dedicated SDI matrix switch. The 3G-SDI over IP extender allows users to send any SDI signals over CAT5/6 cable infrastructure instead of using the traditional SDI coax infrastructure, saving cable cost and making installation easy and fast. This extender kit is ideal for many quality critical video/audio applications such as original video source contribution, live video delivery around the broadcast facility or running media exchanges between different studios within the facility.
Key Features
- Supports up to 1080p resolutions
- Motion JPEG compression with very low latency
- Supports 100's of Transmitters and Receivers, depending on network bandwidth
- LAN Switch based configurations support point-to-point, point-to-multipoint, and multipoint-to-multipoint
- Supports RS232 and one way IR transmission for remote control of end devices
![]()
UPC: 627699907566
MuxLab 3G-SDI Over IP Receiver Unit with PoE Specs
General
| Device Type |
Video/infrared/serial extender |
| Form Factor |
External |
| Color |
Black |
Networking
| Connectivity Technology |
Wired |
| Max Resolution |
1080p |
| Max Transfer Distance |
394 ft |
| Status Indicators |
Power, link OK |
Expansion / Connectivity
| Interfaces |
1 x 3G-SDI output - BNC
1 x serial - DB-9
1 x network (PoE) - RJ-45
1 x IrDA - mini jack |
Miscellaneous
| Compliant Standards |
FCC, RoHS |
Power
| Power Over Ethernet (PoE) |
PoE |
| Power Consumption Operational |
1.8 Watt |
Dimensions & Weight
| Width |
4.4 in |
| Depth |
3 in |
| Height |
1 in |
| Weight |
17.64 oz |
Manufacturer Warranty
| Service & Support |
Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
0 - 95% (non-condensing) |
Packaging Info
| Package Weight |
0.8 lb |
| Box Dimensions (LxWxH) |
8 x 5.9 x 2.3" |
MuxLab 3G-SDI Over IP Transmitter Unit with PoE Specs
General
| Device Type |
Video/infrared/serial extender |
| Form Factor |
External |
| Color |
Black |
Networking
| Connectivity Technology |
Wired |
| Max Resolution |
1080p |
| Max Transfer Distance |
394 ft |
| Status Indicators |
Power, link OK |
Expansion / Connectivity
| Interfaces |
1 x 3G-SDI input - BNC
1 x serial - DB-9
1 x network (PoE) - RJ-45
1 x IrDA - mini jack |
Miscellaneous
| Compliant Standards |
FCC, RoHS |
Power
| Power Over Ethernet (PoE) |
PoE |
| Power Consumption Operational |
2.9 Watt |
Dimensions & Weight
| Width |
4.4 in |
| Depth |
3 in |
| Height |
1 in |
| Weight |
17.64 oz |
Manufacturer Warranty
| Service & Support |
Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
0 - 95% (non-condensing) |
Packaging Info
| Package Weight |
0.78 lb |
| Box Dimensions (LxWxH) |
8.1 x 6.05 x 2.95" |
