Original: $735.78
-70%$735.78
$220.73The Story
MUTINY X/SIDE-BLACK Overview

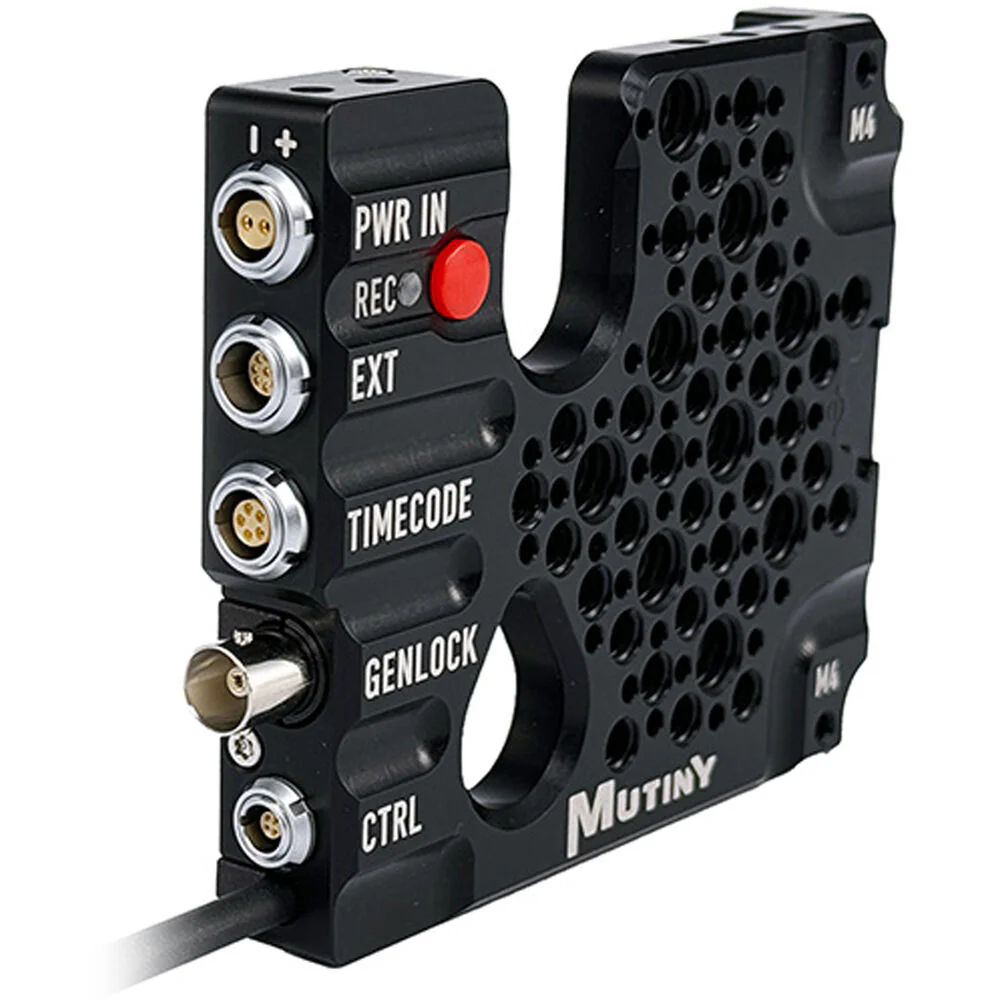

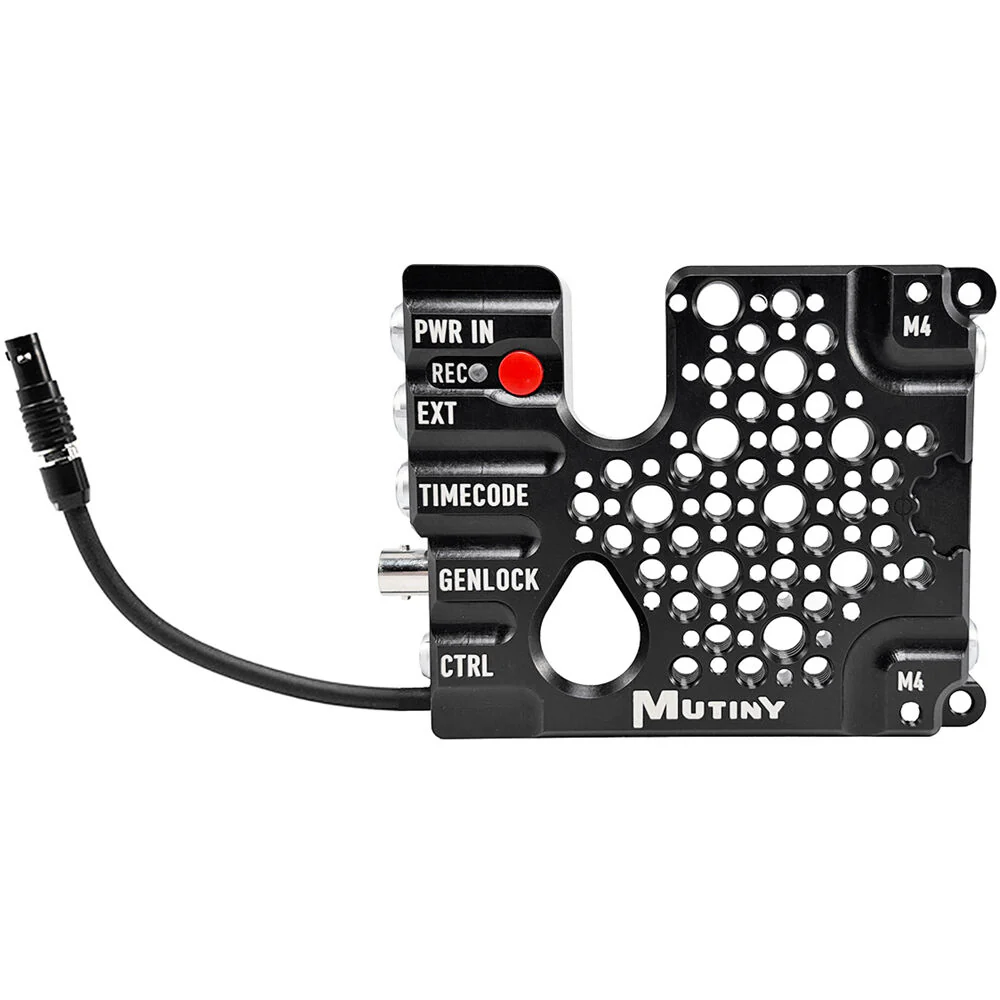

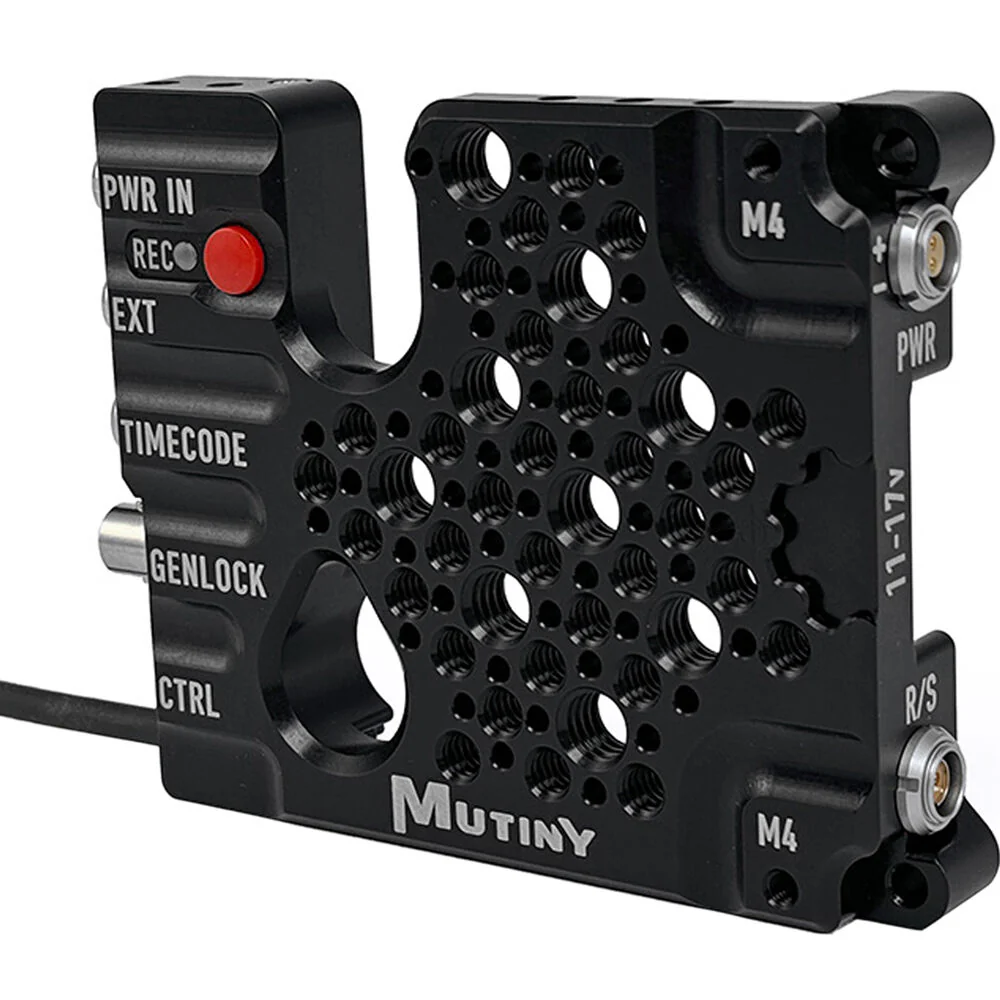

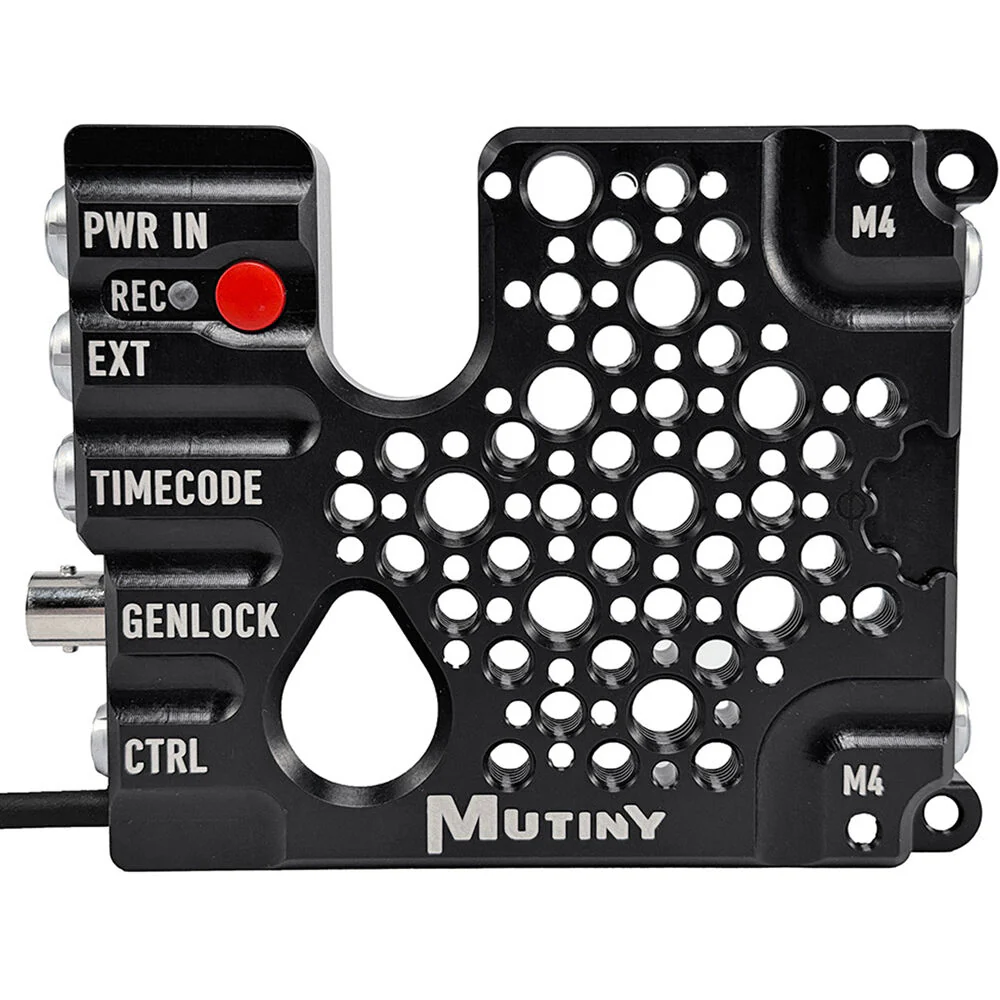

Add power breakout and accessory mounting to your RED KOMODO-X cinema camera with the black X-SIDE IO from MUTINY. The plate is powered using the 2-pin LEMO-type input and features an integrated 9-pin EXT connector that plugs into the camera for control, and it features a 9-pin EXT passthrough connector.
Other ports include timecode, genlock, 4-pin control, 3-pin Fischer run/stop, and 2-pin power passthrough. There's also a REC button with an LED that lights when the camera is recording. Multiple M4, 1/4"-20, and 3/8"-16 threads with anti-twist locating holes allow you to mount a variety of accessories such as handles, mounts, and extensions. Two brace mounts are included to mount the X-SIDE IO directly onto the camera or onto the X-BLOCK.
NOTE: The X-SIDE IO is not compatible with the RED Outrigger Handle but can be used with other standard handles.
- 2-pin 0B LEMO-type power input connector
- EXT 9-pin 0B input cable (from camera to X-SIDE)
- EXT 9-pin 0B passthrough connector (for SmallHD camera control, redundancy, and other accessories)
- Timecode 5-pin 0B connector for timecode IN/OUT
- Genlock BNC connector
- CTRL 4-pin 00B connector (for SmallHD camera control, C-Force, Arri HI-5, etc.)
- Fischer 3-pin R/S power passthrough on front side 11-17V for trigger and power
- 2-pin 0B power passthrough on front side with 11-17V for powering monitor or other accessories
- REC button built in for easy access
- Built-in tally REC light (go to system settings, GPO function, then select Recording Indicator Out to turn on)
- Camera direct and X-SIDE to X-BLOCK braces included
- 1/4"-20 threads with ARRI Standard pin locators
- 3/8"-16 threads with ARRI standard pin locators
- M4 holes for GDU Atlas handles
Items Included
- MUTINY X-SIDE IO for RED KOMODO-X (Black)
- Camera Direct Mounting Brace
- X-Side to X-Block Mounting Brace
- 4 x Screw
- Hex Wrench
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MUTINY X/SIDE-BLACK Specs
| Compatibility |
RED KOMODO-X
MUTINY X-Side / X-Block GDU Atlas |
| Connectors |
1 x 9-Pin EXT Input Cable
1 x 9-Pin EXT Passthrough 1 x 2-Pin LEMO-Type Input 1 x 5-Pin Timecode I/O 1 x BNC Genlock 1 x 4-Pin Control 1 x 3-Pin Fischer Run/Stop 1 x 2-Pin Passthrough Power 11 to 17 VDC |
| Power Source |
Plug-In Power
|
| DC Input Power |
11 to 17 VDC
|
| Mounting |
MultipleĀ 1/4"-20 Threads
MultipleĀ 3/8"-16 Threads MultipleĀ M4 Threads |
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.71 lb
|
| Box Dimensions (LxWxH) |
8.8 x 6 x 1.2"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
