MUTINY KX-IO Overview
Power your RED KOMODO-X or V-RAPTOR camera along with numerous accessories from a high-capacity battery with this KX-IO Power & I/O Module with V-Mount Plate from MUTINY. The plate installs on the back of the camera and provides a V-mount plate for a single high-capacity battery (12A draw is recommended).

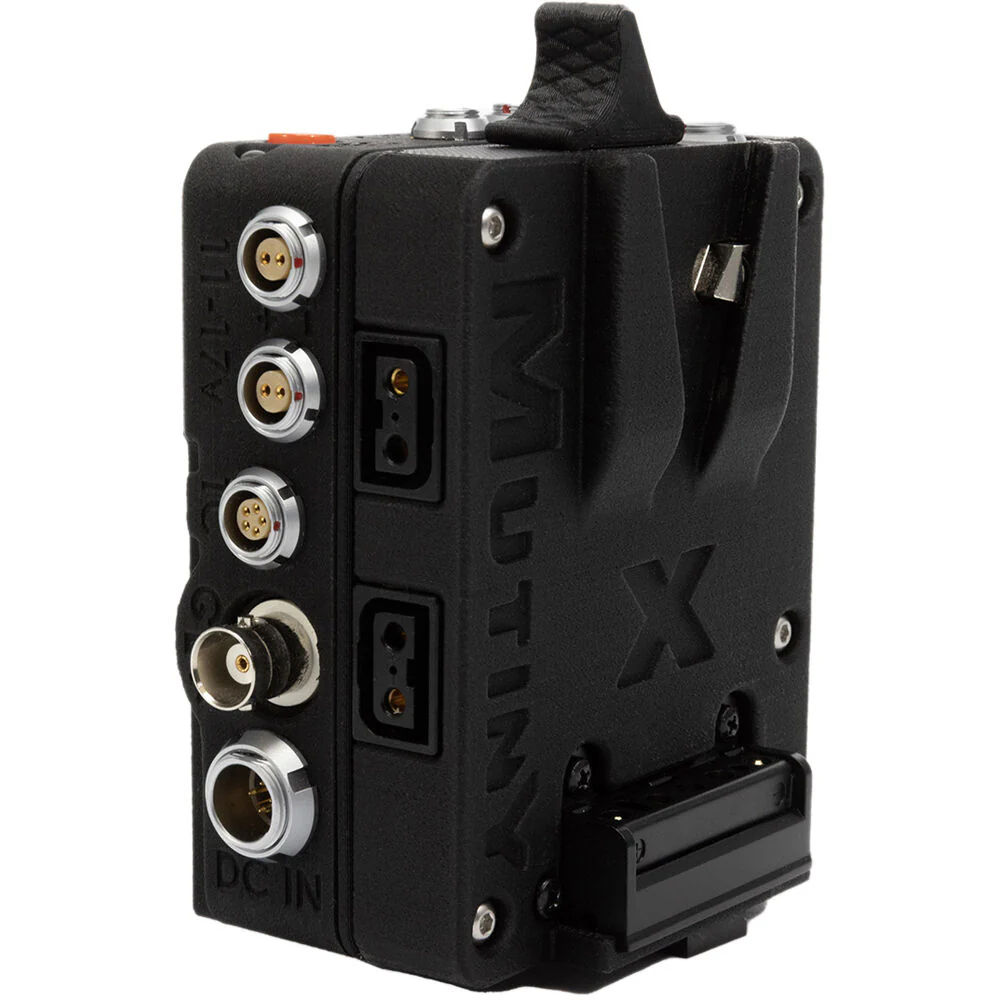

There are numerous power and control I/O ports around the plate for power output, including 2-pin, D-Tap, BNC tally, 5-pin timecode, 3-pin Fischer run/stop, 6-pin hot-swap, 9-pin AUX, CTRL RCP2, and a 9-pin camera power cable.
To avoid your battery draining when your devices are still connected during a move, there is an anti-drain switch to prevent drain. The plate also passes SMBUS information to the camera's display when using RED-approved batteries. A 6A resettable fuse covers the 2-pin and Fischer ports.

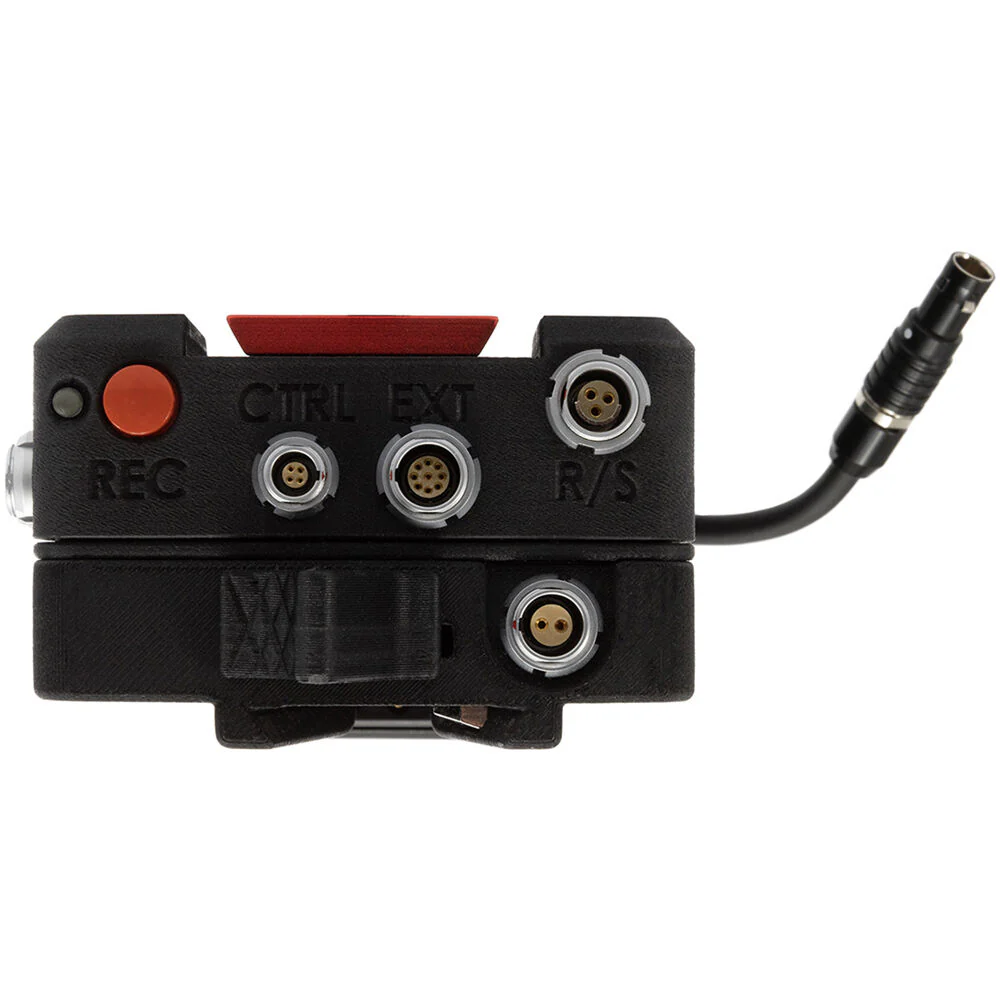

- Record button and built-in tally light (red LED)

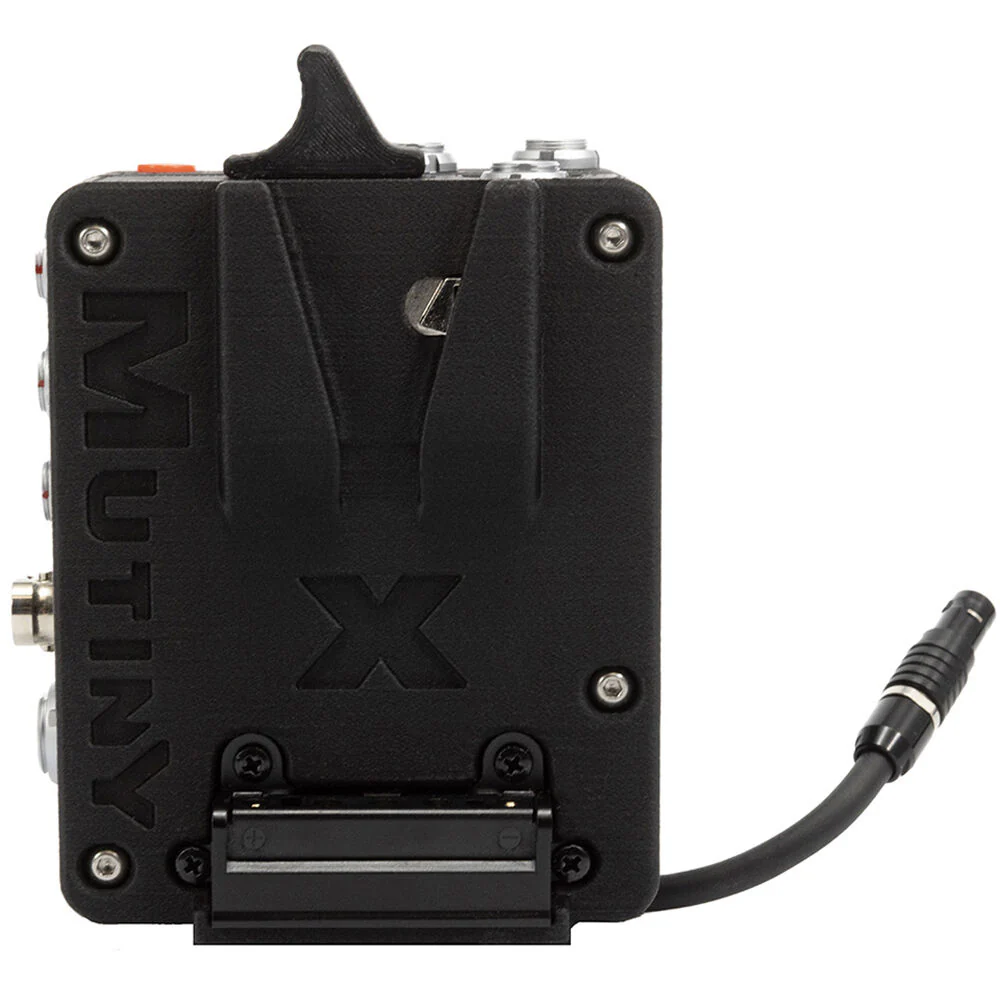

- User-interchangeable V-mount plate
- Two unregulated 2-pin 0B power connectorsÂ
- One Fischer 3 R/S with power (11-16.4V and 6A total)
- One 9-pin 0B EXT pass-through port (for SmallHD camera control, extra trigger, TC, GEN
- One 5-pin 0B timecode / Genlock combo port (Ambient Style)
- One BNC Genlock
- One 4-pin 00B CTRL RCP2 port (SmallHD, c-motion, etc)
- One 6-pin 1B DC input/battery hot-swap port (excluding D-Tap and 2-pin ports)

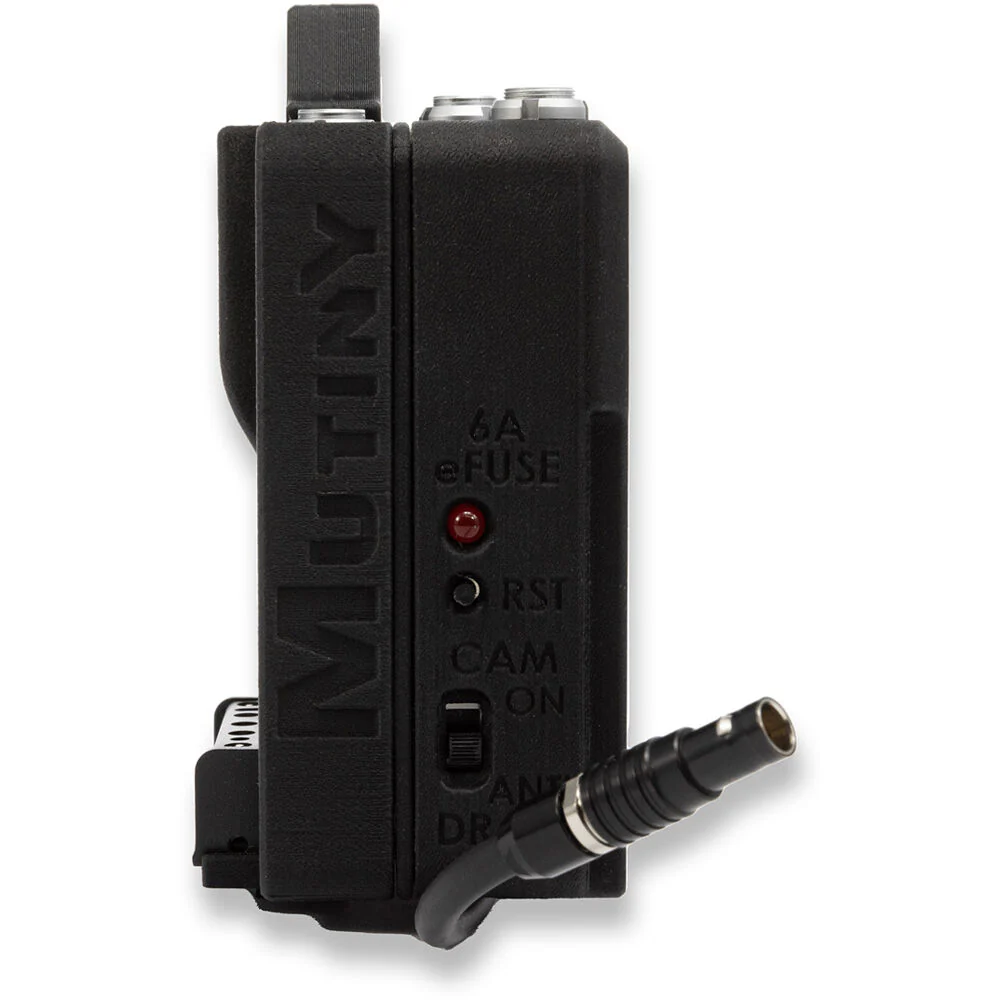

- 6A total resettable digital fuse with red LED indicator (for the two 2-pin 0B and Fischer 3-pin)
- Anti-battery drain switch so you can leave your battery and accessories connected without draining the battery between company movesÂ
- 9-pin EXT built-in cable for connection to the camera
- Two D-Tap outputs
- SMBUS battery information when used with RED-approved batteries with SMBUS (on V-mount only)
Items Included
- MUTINY KX-IO Power & I/O Module with V-Mount Plate for KOMODO-X & V-RAPTOR
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MUTINY KX-IO Specs
| Power Output |
Fischer 3-Pin: 11 to 16.4 VDC at 6 A
D-Tap: VDC LEMO 2-Pin: VDC LEMO 4-Pin Female: VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
V-Mount: 11 to 17 VDC at 12 A
|
| Power Output |
Fischer 3-Pin: 11 to 16.4 VDC at 6 A
D-Tap: VDC LEMO 2-Pin: VDC LEMO 4-Pin Female: VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
2x LEMO 2-Pin
2x D-Tap 1x Fischer 3-Pin 2x LEMO 9-Pin 1x LEMO 5-Pin 1x LEMO 4-Pin 1x BNC 1x LEMO 6-Pin |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Lock
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
ABS Plastic
|
| Dimensions |
3.7 x 3 x 1.9" / 95 x 77 x 48Â mm
|
| Weight |
10.1Â oz / 286.3Â g
|
| Package Weight |
0.945 lb
|
| Box Dimensions (LxWxH) |
10.1 x 6.9 x 2.4"
|
