$5.57

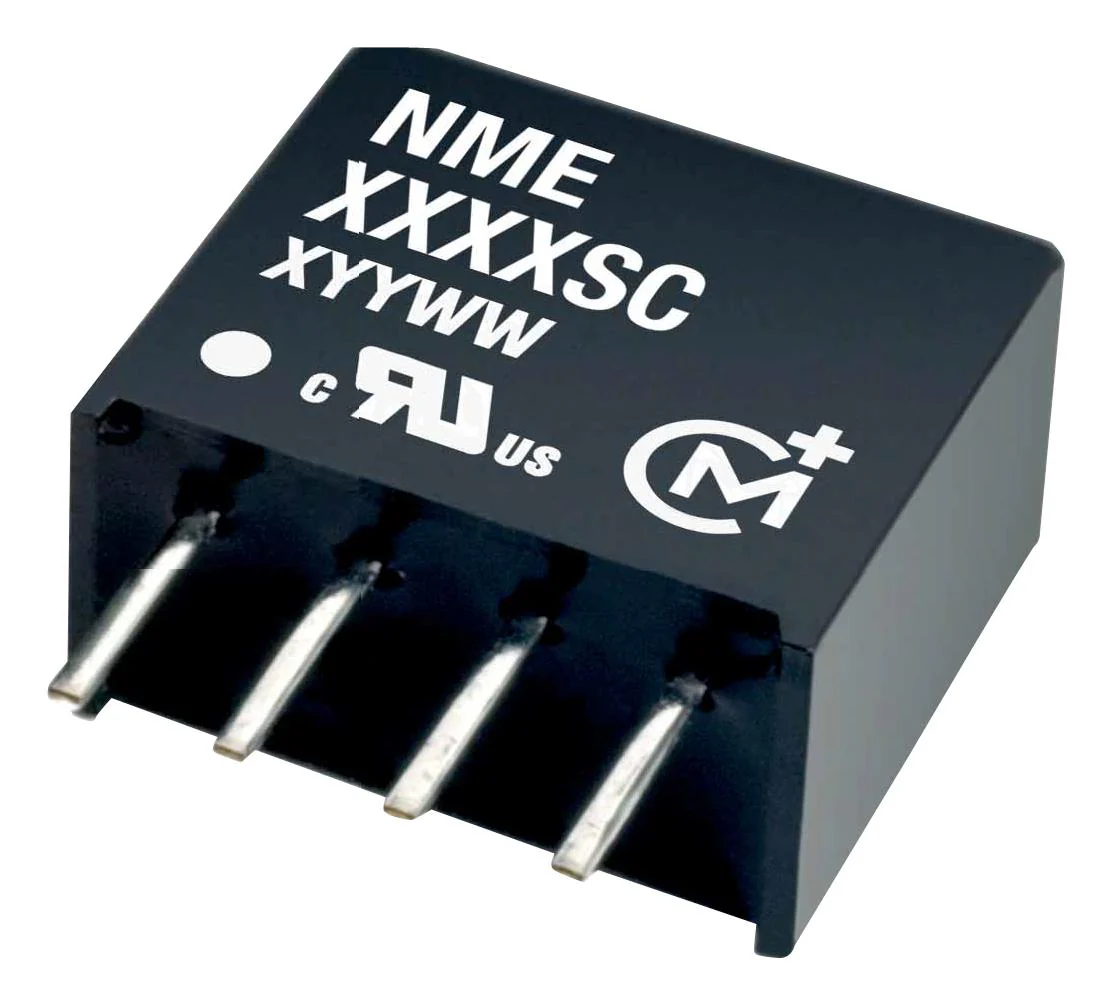

Murata Power Solutions NME0505DPC Isolated Board Mount DC/DC Converter 1 Output W 5 V 200 mA—
$5.57
The Story
This is a Isolated Board Mount DC/DC Converter, 1 Output, 1 W, 5 V, 200 mA product from MURATA POWER SOLUTIONS with the model number NME0505DPC
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 200mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | NME Series |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | UL |
| Width | 9.9mm |
| Height | 6.9mm |
| Depth | 11.6mm |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NME0505DPC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
This is a Isolated Board Mount DC/DC Converter, 1 Output, 1 W, 5 V, 200 mA product from MURATA POWER SOLUTIONS with the model number NME0505DPC
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 200mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | NME Series |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | UL |
| Width | 9.9mm |
| Height | 6.9mm |
| Depth | 11.6mm |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NME0505DPC |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
