-70%MULTICOMP PRO MPAB-PB-1051 Industrial Pushbutton Switch, 24 V LED, MPAB-PB Series, 22 mm, SPST-NO, SPST-NC, Momentary, Round—
$17.97
$5.39The Story
Product Overview

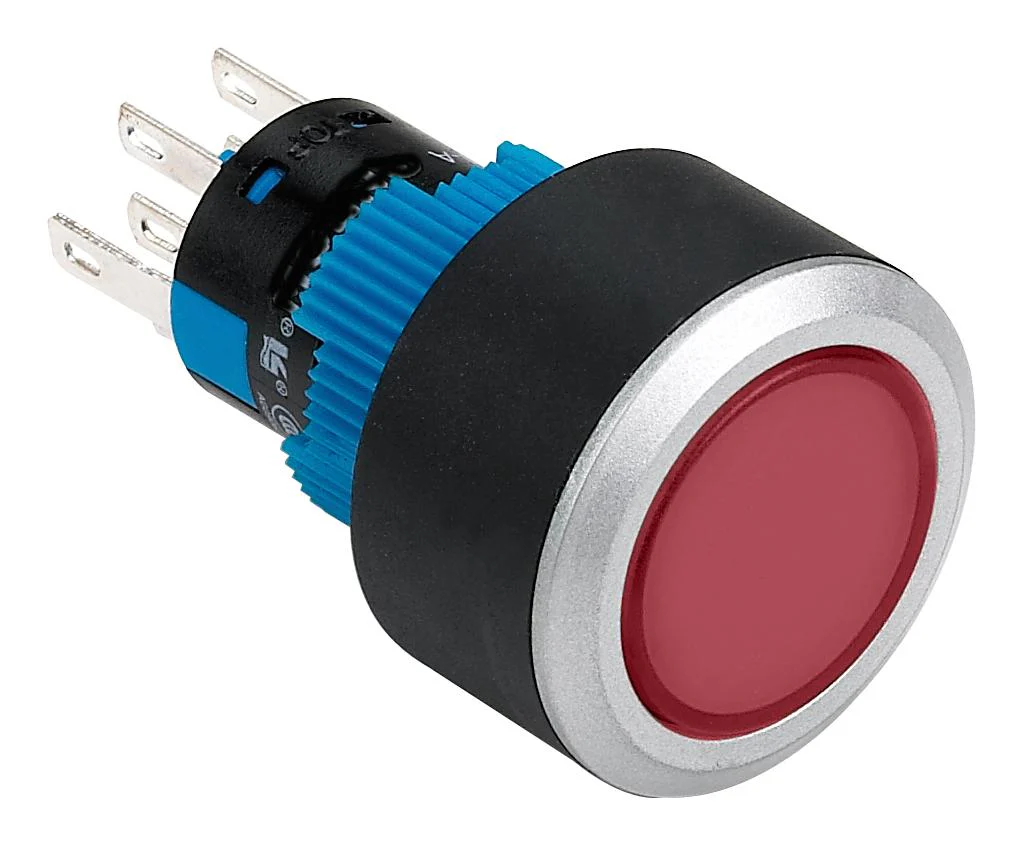

MPAB-PB-1051 is an industrial push button switch.
- Pin terminals (2.8mm Ă— 0.5mm) type, round actuator shape, 1NO/1NC switching
- Momentary switching action, 22mm panel cut out, LED 24VAC/DC illumination
- Red colour, IP65 rating, 250V/5A switch rating, ?1,000,000 cycles mechanical life
- ?50,000 cycles electrical life, ?50Mohm initial contact resistance
- ?100Mohm insulation resistance
- About 1.7N operating force, about 3mm operating travel
- Operating temperature range from -25°C to +55°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPAB-PB-1051 |
| Quantity | Each |
| Technical Data Sheet EN |  |
