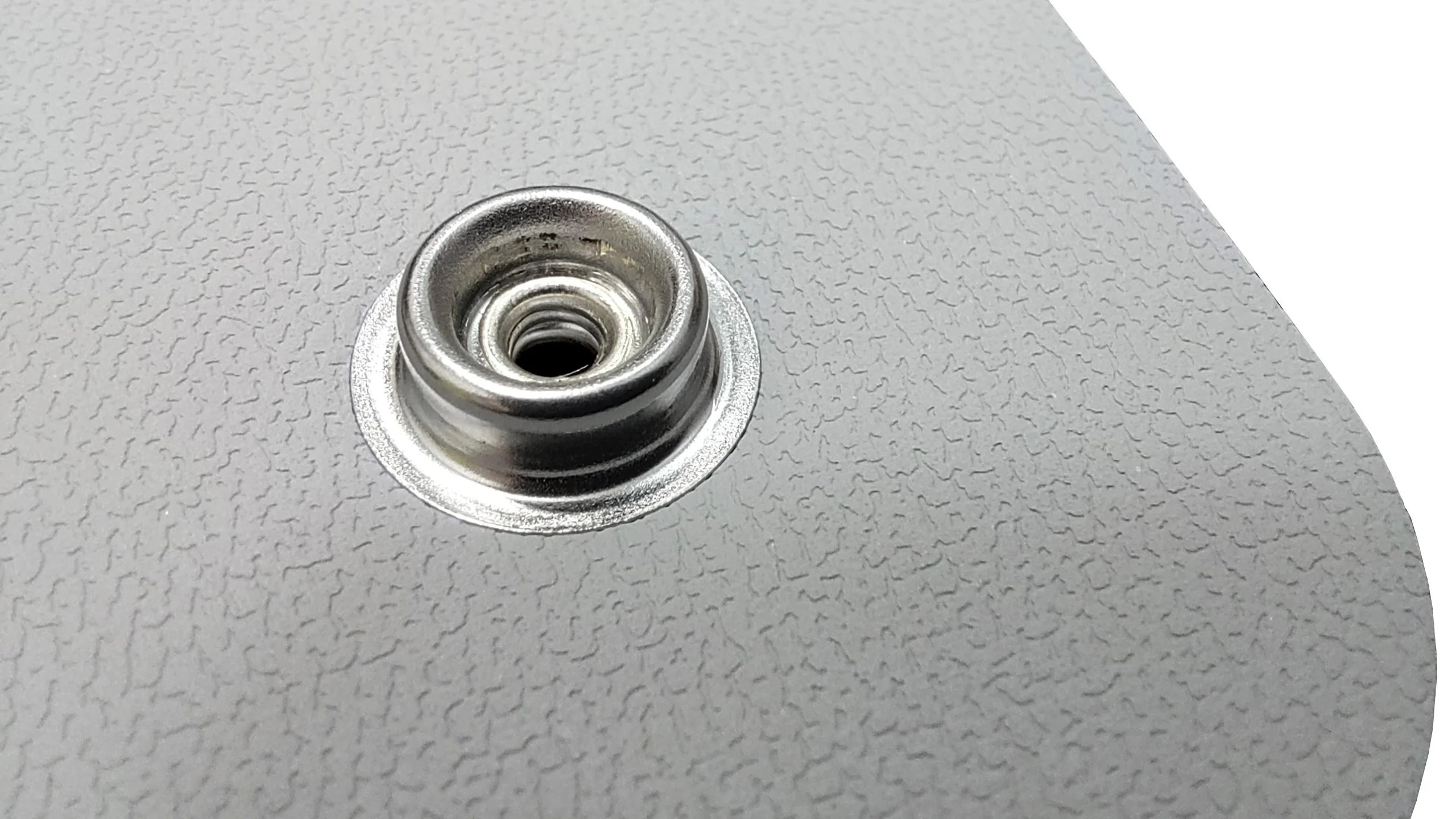

MULTICOMP PRO MP013804 ESD Dissipative Mat, 2 10mm Snap Studs, Rubber, Grey, 1.2m L x 600mm W

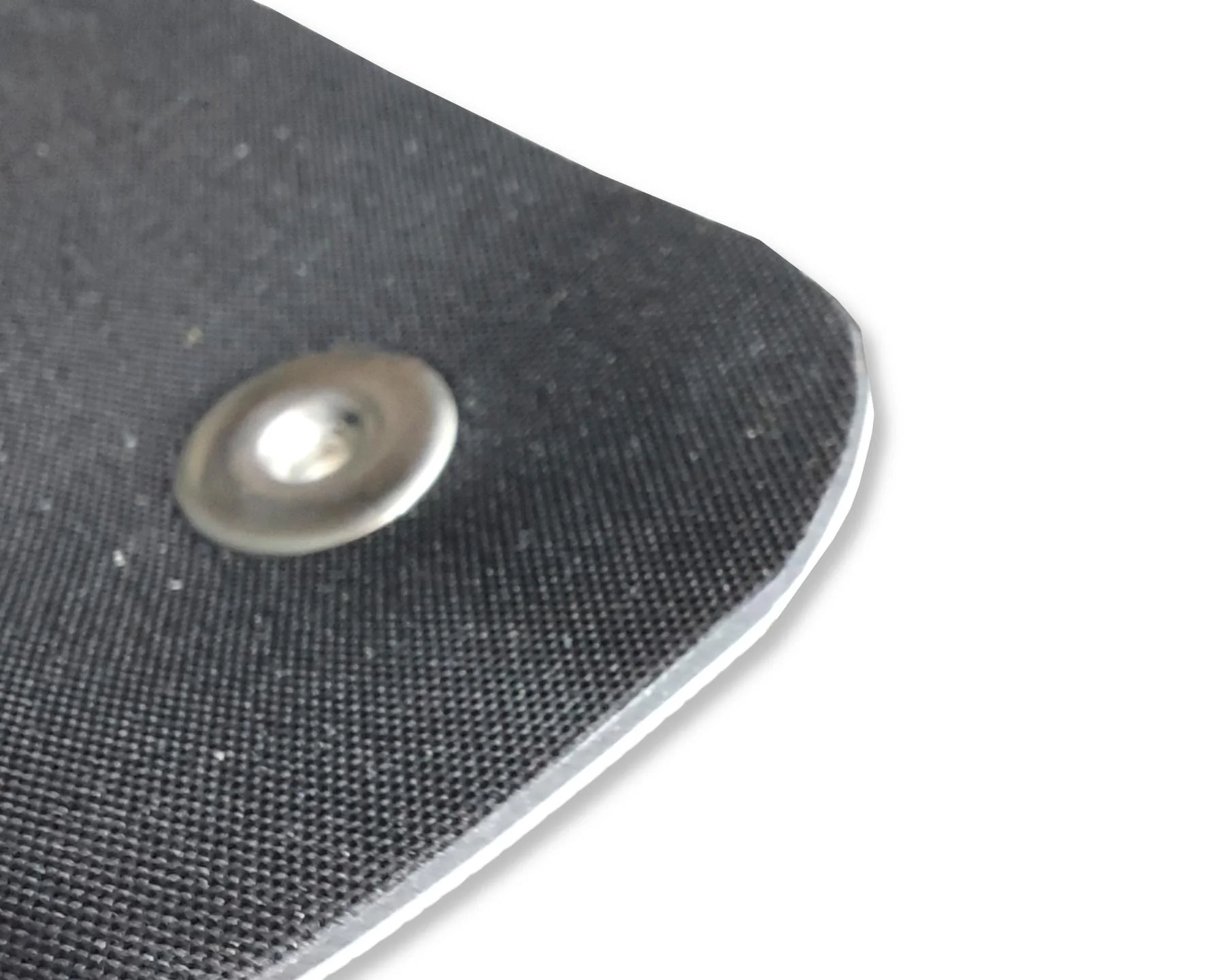

Two-layer, high temperature, solder, and chemical resistant rubber matting. This product is ideal for static-free workstations where repair work and soldering are performed. The top layer, Static Dissipative, is available in Blue; Gray & Blue Colours with Smooth Matte Finish, and the bottom layer, Conductive, available only in Black color, Meets the ANSI/ESD S20.20 & IEC 61340-5-1 requirements for worksurface.

• Colours: Blue/Black & Gray/Black
• Surface: Texture Matte Finish
• Thickness: 80 mils (2mm)
• Tensile Strength: 1000 psi (min)
• Elongation @ Break, ASDM-D-412: 300% (min)
• Durameter (Shore A), ASDM-D-2240: 60 min
• Resistance from Surface: To Groundable Point Rg 8 x 107 ?, EOS/ESD-S4 meets IEC 61340-5-1
• Resistance: Between Two Points on Surface, Rp-p 2 x 108 ?, EOS/ESD-S4 meets IEC 61340-5-1
• Charge Decay Time: 0.01 Seconds, FTMS 101C 5,000V to 50V (Technical Zero) Method 4046C

Applications

Electronics Service, Hobby & Education, Maintenance & Repair, Safety
