$4.59

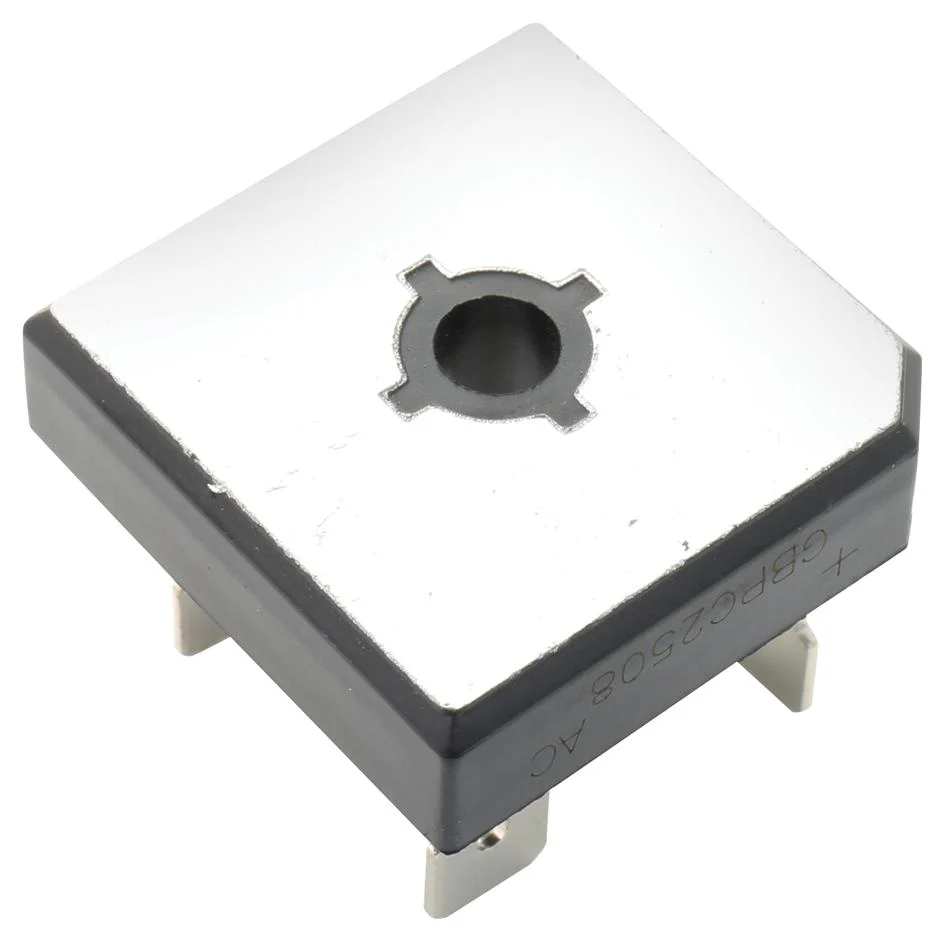

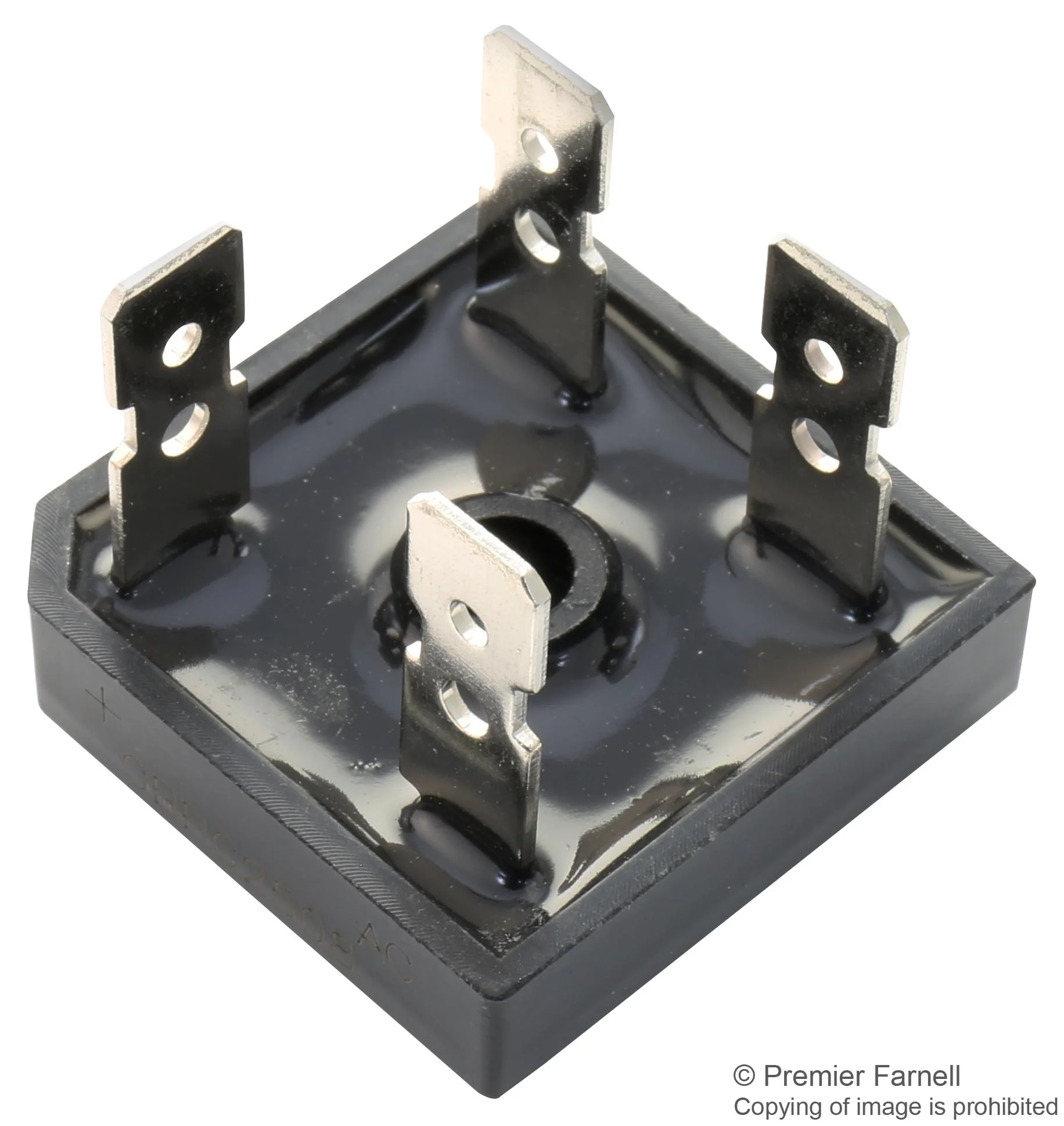

Multicomp PRO GBPC2508+ GBPC2508+ Bridge Rectifier Single Phase 800 V 25 A Module 1.1 4 Pins—
$4.59
The Story
The GBPC2508 from Multicomp Pro is a single phase bridge rectifier with solderable terminals. The rectifier bridge consists of four silicon junctions connected as a full bridge. Integrally moulded heatsink provide very low thermal resistance for maximum heat dissipation.
- 2500V Case to lead isolated voltage
- 560V Maximum RMS voltage
- 800V Maximum DC blocking voltage
- 300A Peak forward surge current
- 1.5°C/W Typical thermal resistance
- Plastic material
- Isolated voltage from case to lead over 2500V
- Peak forward surge current, single sine wave superimposed on rated load is 300V
- Maximum instantaneous forward voltage drop per element VF at 12.5A is 1.1V
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Mains Rectification
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MULTICOMP PRO |
| Part Number | GBPC2508+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
