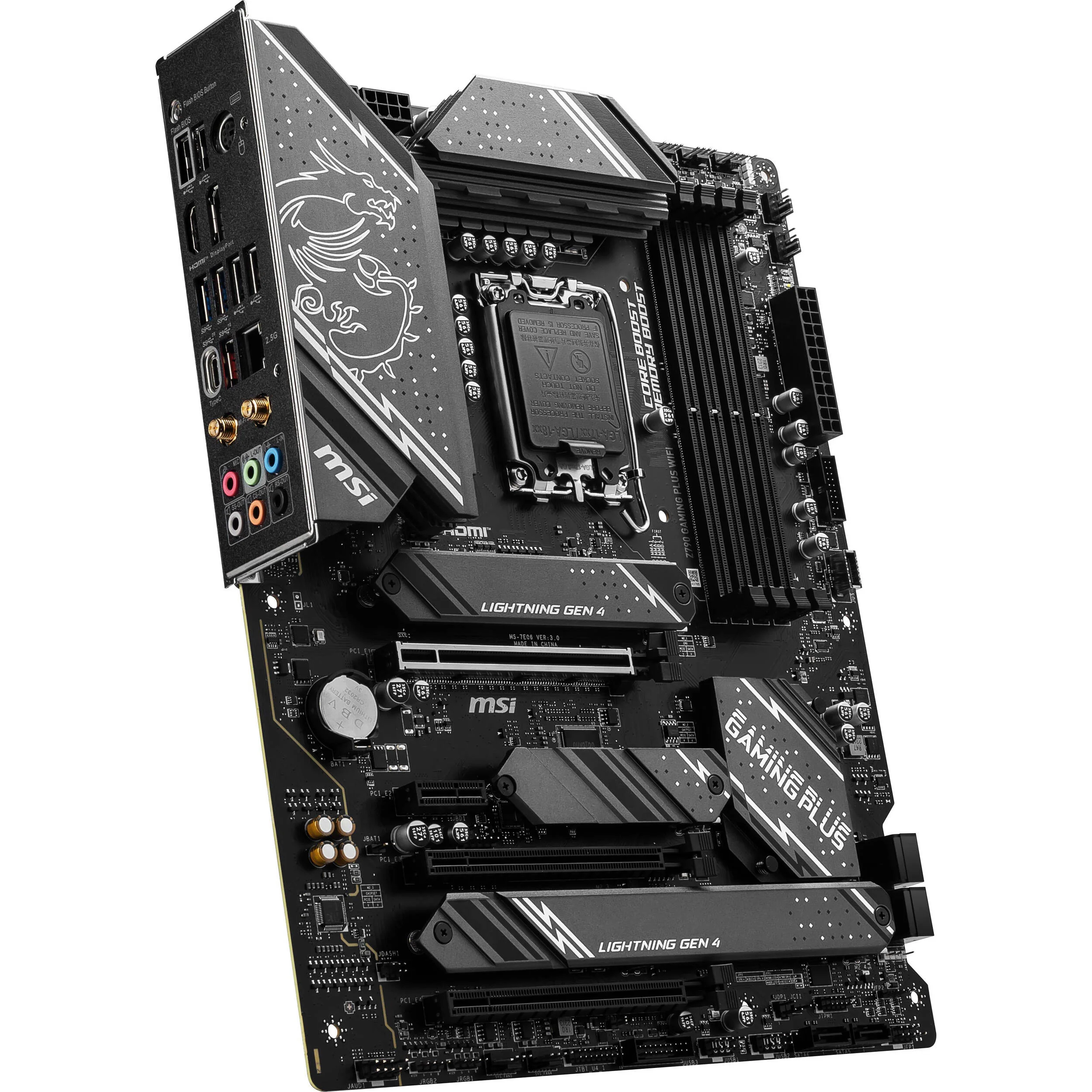

MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
HomeStore

MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard

MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard

$120.12

Original: $400.40

-70%
MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard—

$400.40

$120.12

The Story

MSI Z790 GAMING PLUS WIFI Overview

  • 1Description
  • 2Enhanced Design
  • 3DIY Friendly
  • 4Built for Performance
  • 5Software Enhancements
  • 6Reliable Design
  • 7Enhanced Audio
  • 8Mystic Light

Set the foundation of your next PC build with the robust MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard. Designed to leverage the power of Intel CPUs, the GAMING PLUS sports a layout designed to give gaming enthusiasts essential connectivity options ideal for starter builds.

Intel's LGA 1700 socket rests at the heart of the GAMING PLUS, allowing you to install a variety of 12th, 13th, and 14th Gen processors to match your needs. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Six SATA III and four M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with PCIe 5.0 x16, 3.0 x1, 4.0 x16 (in x4 mode), and 3.0 x16 (in x1 mode) expansion slots. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. A single back panel USB-C 3.2 Gen 2x2 port gives you enhanced throughput with greater data transfer speeds suitable for storage arrays. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.

Enhanced Design
Providing you with enhanced performance, the GAMING PLUS utilizes several features and electrical designs to optimize your gaming experience with the 14+1+1 Dual Rail Power System. Extended heat sink, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.
DIY Friendly
Whether you are a seasoned or a brand-new builder, the GAMING PLUS offers several enhancements that are useful to everyone. EZ M.2 Clip makes securing your SSDs quick, easy, and screw-free. Driver Utility Installer keeps your firmware up to date, preventing potential software issues. You also have several other conveniences such as the EZ debug LEDs, Keep Out Zone, XL Clip, and a Pre-installed I/O shield.
Built for Performance
The GAMING PLUS' PCIe 5.0 x16 slot is backed by proprietary Lightning Gen 4 technology, giving you up to 192 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.
Software Enhancements
Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.
Reliable Design
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. The advanced Surface Mount Technology (SMT) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal
Enhanced Audio
Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.
Mystic Light
Mystic Light allows you to customize your lighting colors and effects to add personality to your system thought the A-RAINBOW V2 header. Ambient Link allows you to synchronize lighting themes with compatible lighting devices outside the case such as wall-mounted lighting panels.
UPC: 824142334898

In the Box

  • MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard
  • Wi-Fi Antenna
  • 2 x SATA Cables
  • EZ M.2 Clip Set
  • M.2 Screw & Standoff Set
  • Cable Sticker Pack
  • Limited 3-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Enhanced Design
    • DIY Friendly
    • Built for Performance
    • Software Enhancements
    • Reliable Design
    • Enhanced Audio
    • Mystic Light

    MSI Z790 GAMING PLUS WIFI Specs

    Key Specs
    Chipset
    Intel Z790
    CPU Socket
    LGA 1700
    Memory Slots
    4x 288-Pin
    Memory Support
    DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
    M.2
    1x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
    1x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
    2x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
    Expansion Slots
    1x PCIe 5.0 x16
    1x PCIe 4.0 x4 (x4 mode)
    2x PCIe 3.0 x1
    Wi-Fi
    Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
    Form Factor
    ATX
    CPU
    Chipset
    Intel Z790
    CPU Socket
    LGA 1700

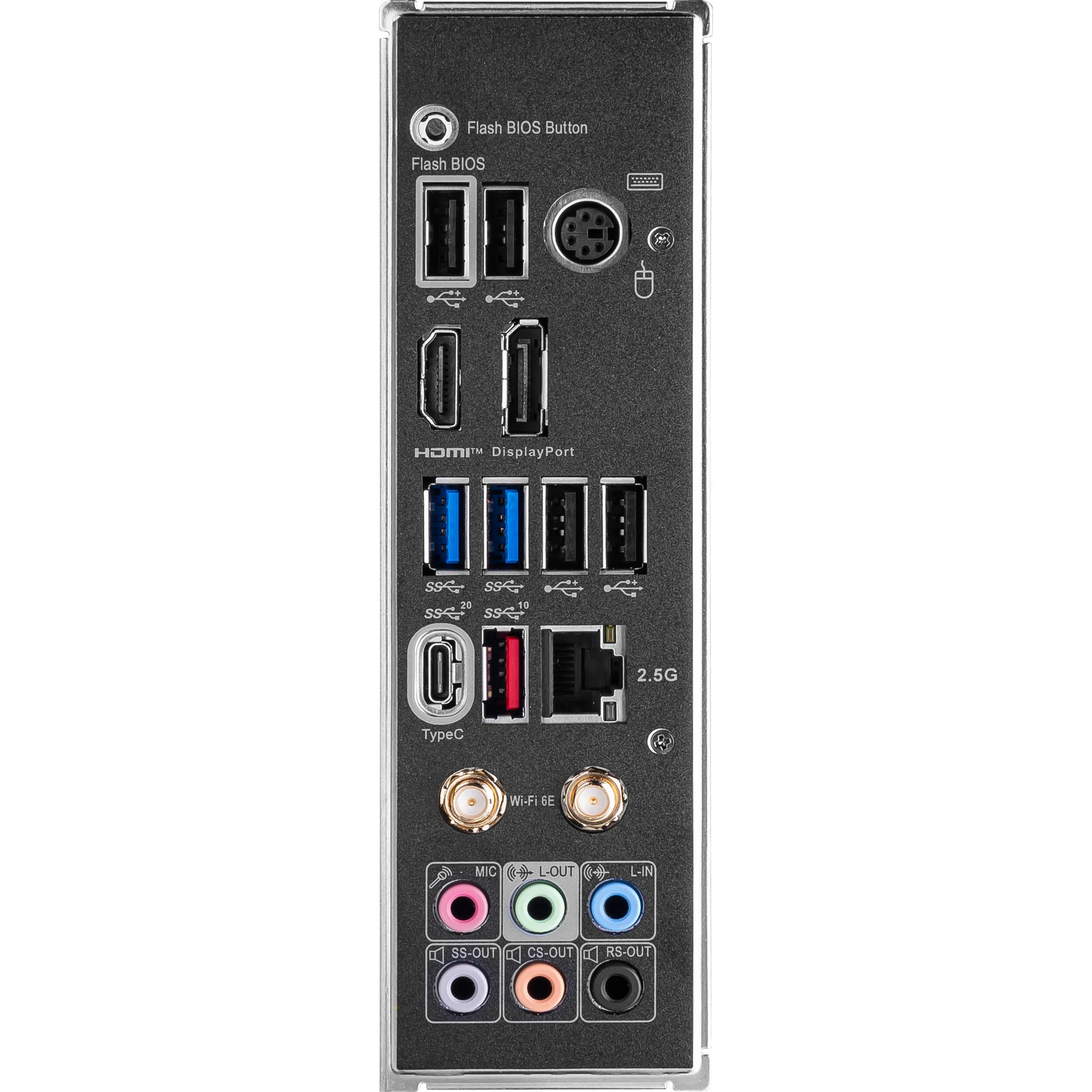

    Back Panel I/O
    USB
    1 x USB-C (USB 3.2 Gen 2x2)
    2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
    1 x USB-A (USB 3.1/3.2 Gen 2)
    4 x USB-A (USB 2.0)
    Thunderbolt
    No
    Display
    1x DisplayPort Output
    1x HDMI 2.1 Output
    Audio
    6x 1/8" / 3.5 mm
    Ethernet / Controller
    1x Intel 2.5Gigabit
    PS/2
    1x PS/2
    Wi-Fi Antenna
    2x Connector
    Buttons
    BIOS Flashback
    Memory
    Memory Slots
    4x 288-Pin
    Memory Support
    DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
    Maximum Capacity
    192 GB
    Channel Architecture
    Dual Channel
    ECC Support
    Non-ECC Unbuffered
    Storage Expansion
    SATA
    6x SATA III
    M.2
    1x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
    1x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
    2x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
    Optane Memory Support
    No
    RAID Support
    RAID 0, 1, 5, 10 (SATA)
    RAID 0, 1, 5, 10 (M.2)
    Internal I/O
    Expansion Slots
    1x PCIe 5.0 x16
    1x PCIe 4.0 x4 (x4 mode)
    2x PCIe 3.0 x1
    USB
    1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
    2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
    2x USB 2.0 Header (Supports 4 USB-A Port)
    Air Cooling
    1x 4-Pin CPU
    6x 4-Pin System
    Liquid Cooling
    1x 4-Pin Pump
    Power Connectors
    1x 24-Pin Mainboard
    2x 8-Pin ATX
    Security
    Chassis Intrusion, TPM Module
    LED Header
    8x RGB
    Diagnostics
    Clear CMOS
    Add-On
    1x USB4 Expansion Card Header
    BIOS
    ROM
    256 Mb
    Front Panel I/O
    Front Panel I/O
    AAFP
    Audio
    Audio Codec
    Realtek ALC897 (7.1-Channel)
    DAC
    No
    Wireless
    Wi-Fi
    Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
    Bluetooth
    5.3
    Software
    OS Compatibility
    Windows 10 to 11 (64-Bit Only)
    Physical
    Form Factor
    ATX
    Dimensions
    12 x 9.6" / 30.5 x 24.4 cm
    Packaging Info
    Package Weight
    3.91 lb
    Box Dimensions (LxWxH)
    13.6 x 10.7 x 2.9"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

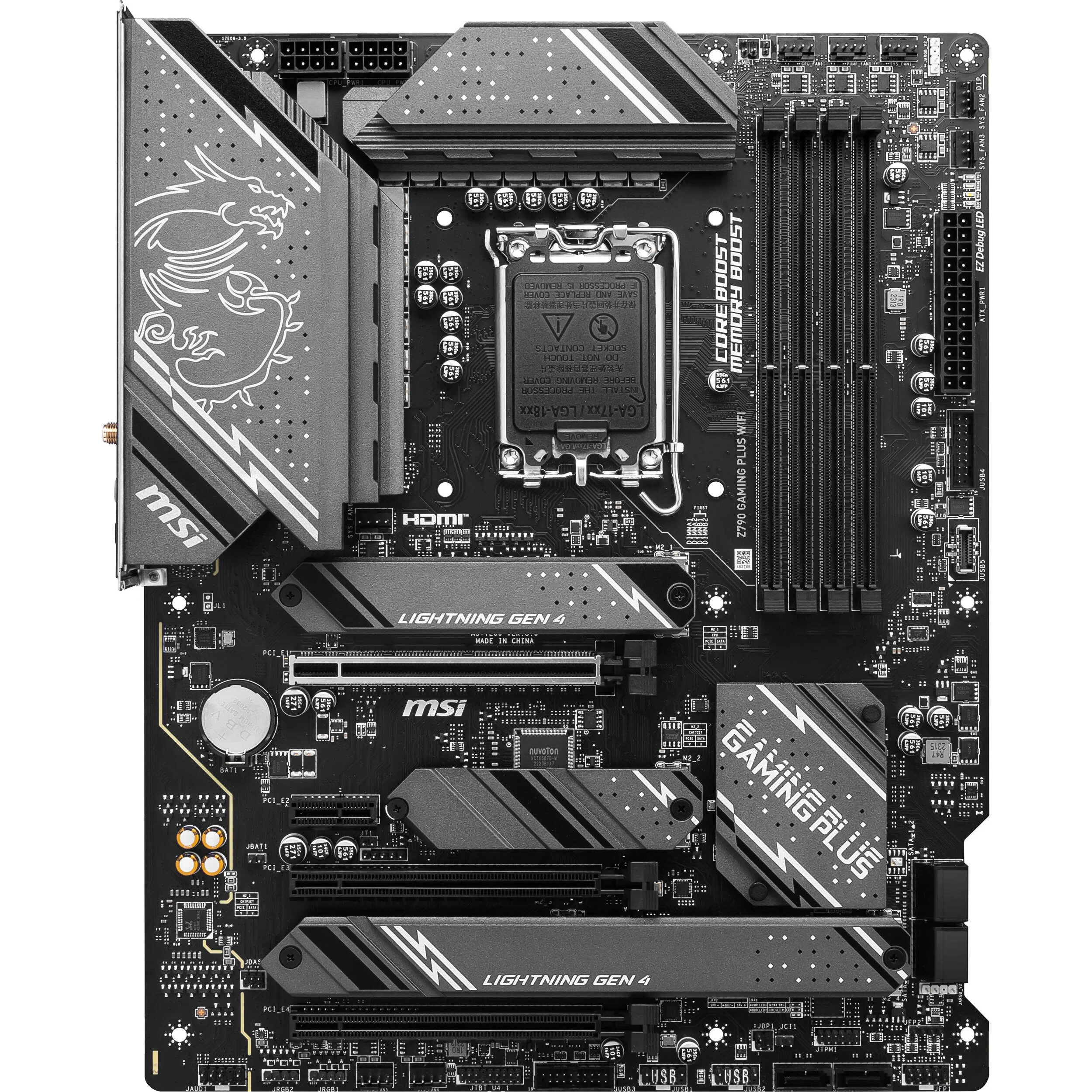

    MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

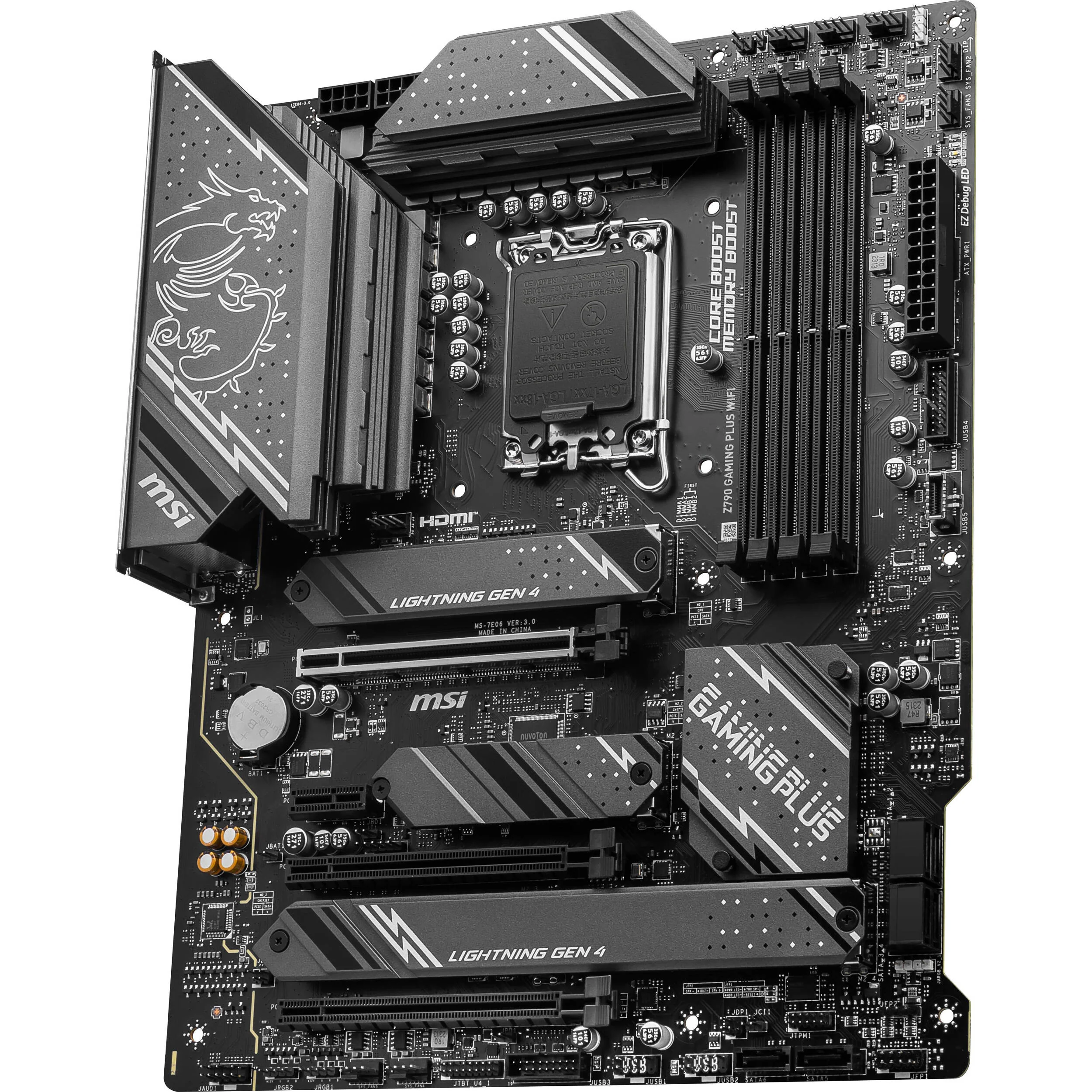

    MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

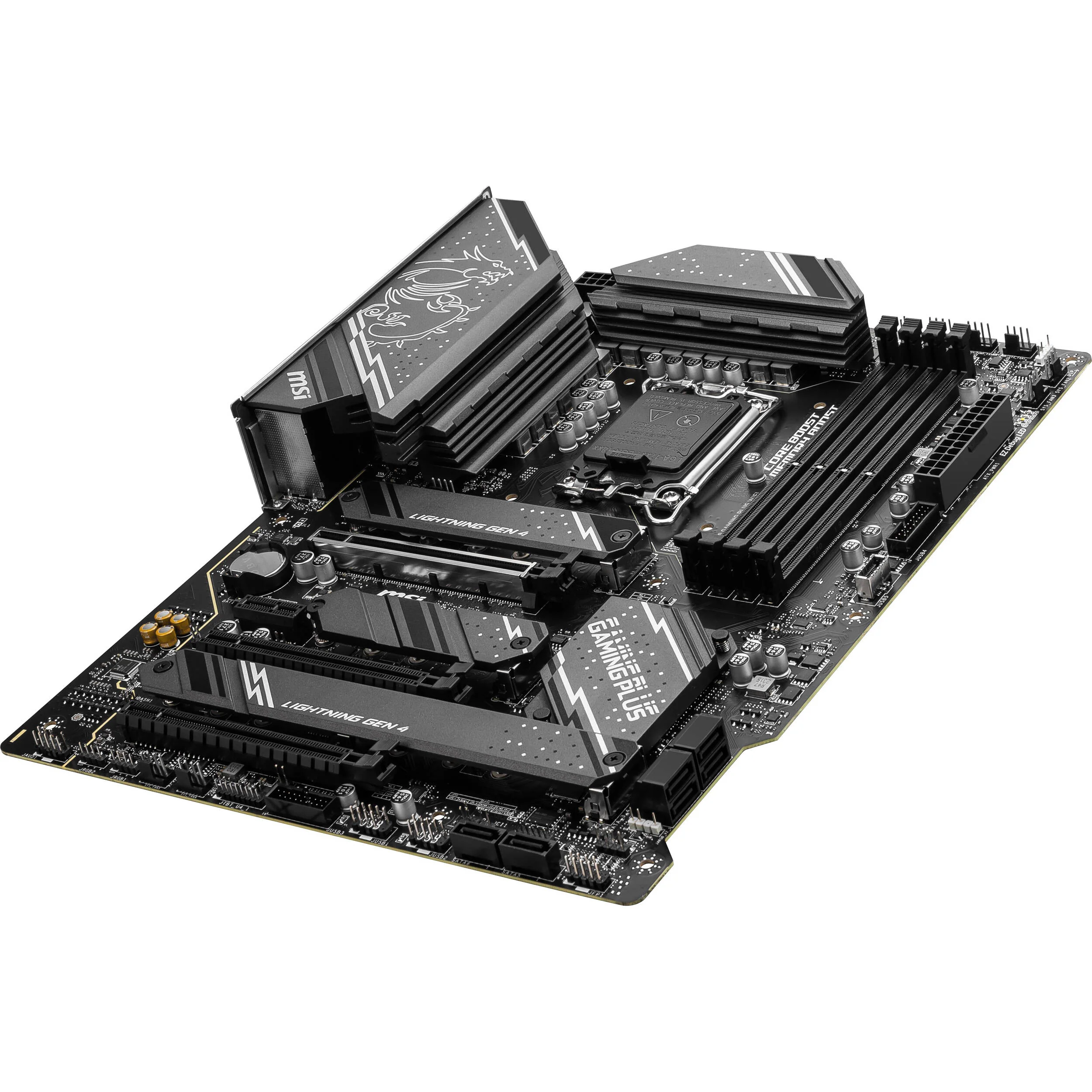

    MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

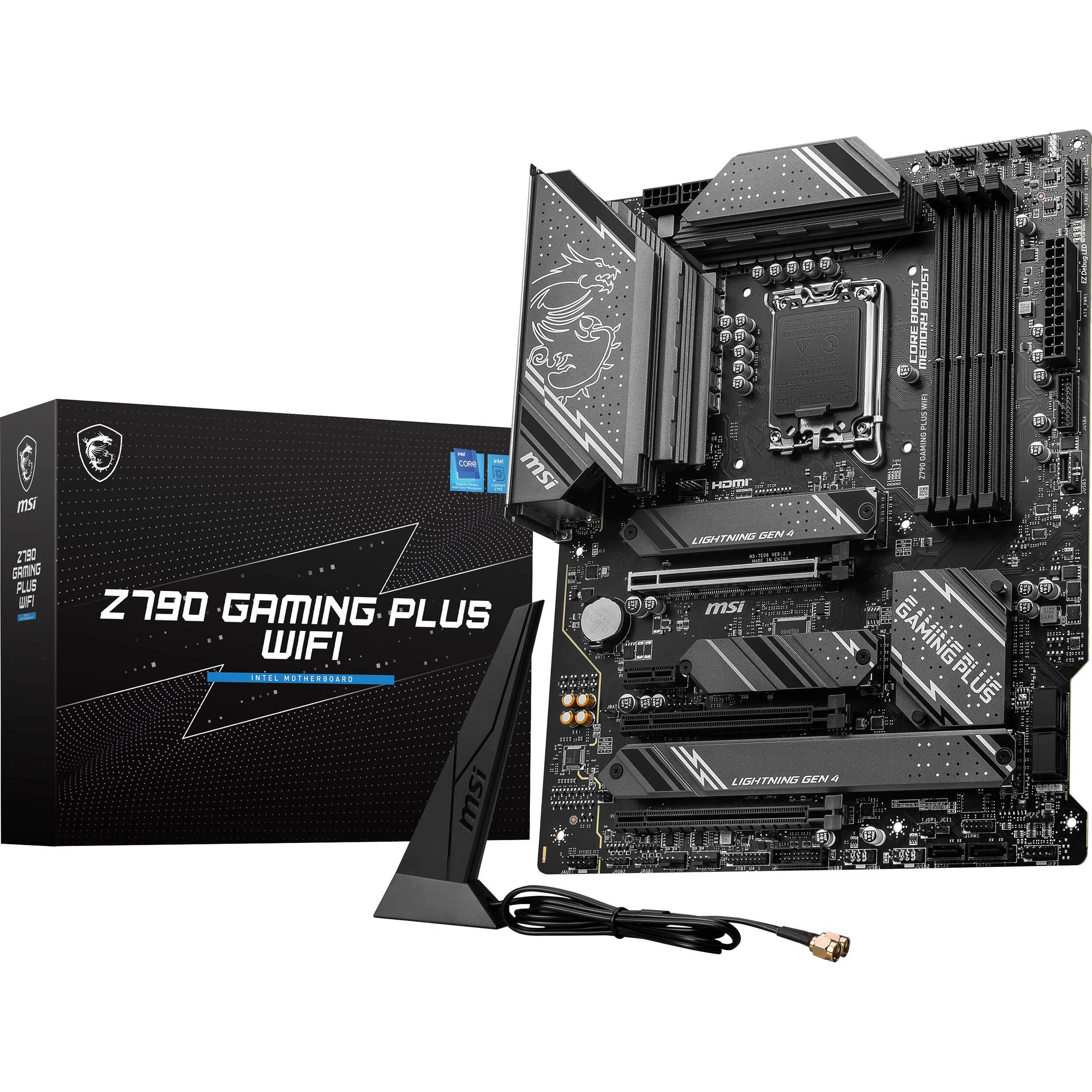

    MSI Z790 GAMING PLUS WIFI ATX LGA 1700 Motherboard - Image 6
